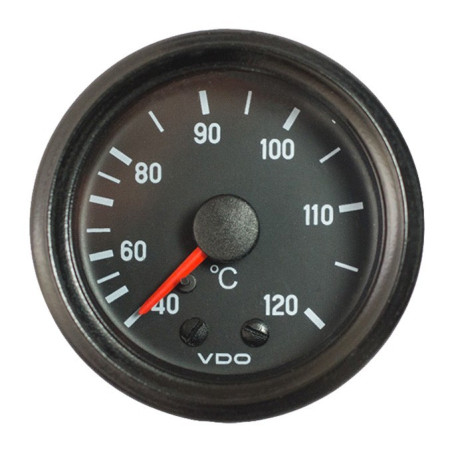

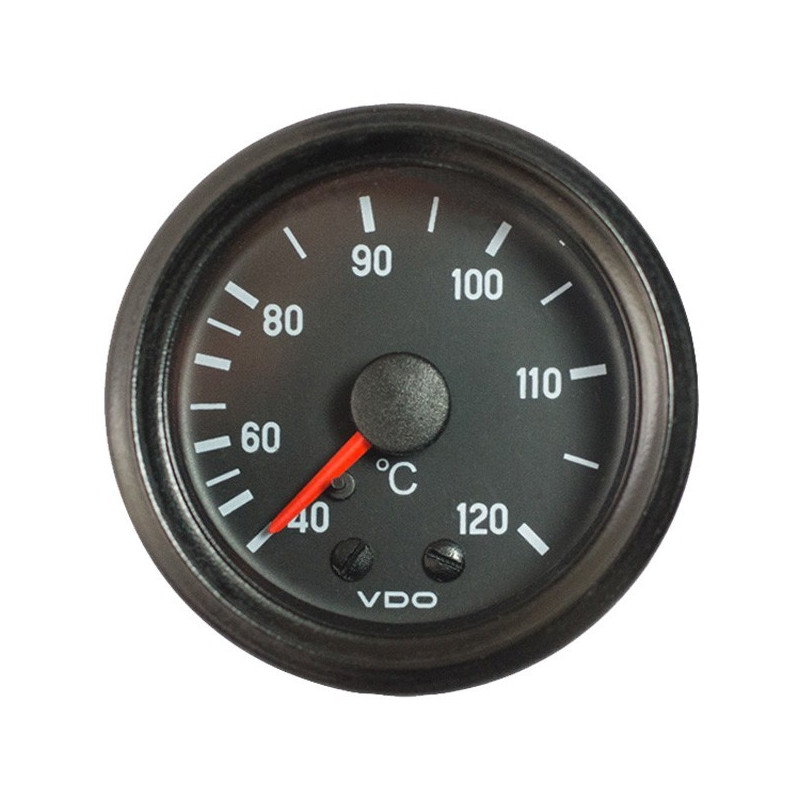

VDO Cockpit International Mechanical Coolant Temperature 120°C 52mm
€194.83
(tax incl.)
€161.02 (VAT Excl.)
Part-number:
VDO 180-035-005G
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: +40°C to +120°C Mechanical
- Connection: M10 x 1
- Retail package 1 Temperature gauge
Logistical information:
- HS Code: 85122000
- Ean Code: 4103590687654
- Weight: 0.12kg
Description Cockpit International Temperature gauge:
VDO Cockpit International 180 035 005G specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch |
| Installation depth: | 67.5 mm |
| Locking height with Spinlock nut: | Not available |
| Locking height with bracket: | 0.5 mm - 8 mm |
| Flushmount: | None |
Functionality:
| Coolant temperature range: | +40°C to +120°C |
| Sensor signal coolant temperature gauge: | Mechanical - Dry sensor M10 x 1 Length 4.000 mm |
| Accuracy: | Not specified by VDO |
| Connection: | M10 x 1 Length 4,000 mm |
| Illumination connection: | AMP Male blade connector 6.3 x 0.8mm (2x) |
Power supply:
| Operating voltage (Illumination only): | 12 Volt standard - 24 Volt optional |
| Current consumption (Illumination only): | 12 Volt 2 Watt - 24 Volt 2 Watt |
| Reverse polarity protection: | Not applicable |
| Short circuit protection: | Not applicable |
Dial & Pointer:
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: | Red backlight |
| Warning indication: | None |
| Programming: | None |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: | IP64 (DIN 40050) - Ozone proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -30°C to +85°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
Retail package:
- VDO Cockpit International 180 035 005G Temperature gauge
- Steel bracket zinc-plated and chromatized
- Connecting material order separately
180-035-005G
Data sheet
- Warning indication
- None
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- Mechanical
- Series
- VDO Cockpit International
- Lens
- Plastic single anti-reflective
- Country of origin
- India
- Color
- Black
- IP Class front
- IP64 (DIN 40050)
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- Cooling water temperature
- Front ring interchangeable
- Yes - Special tools required
- Front ring model
- Black triangle
- Communication
- Analogue
- Category
- Temperature gauges
- Article status
- Available to order
Specific References
- EAN13
- 4103590687654
- MPN
- 180-035-005G
