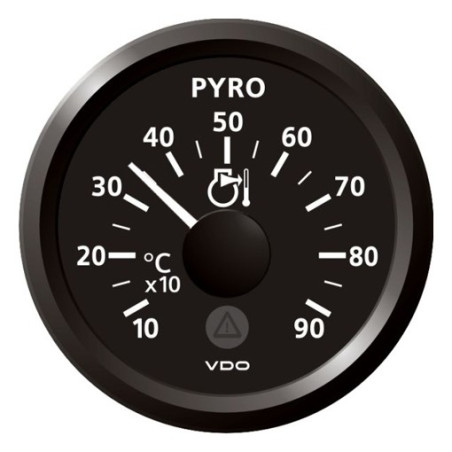

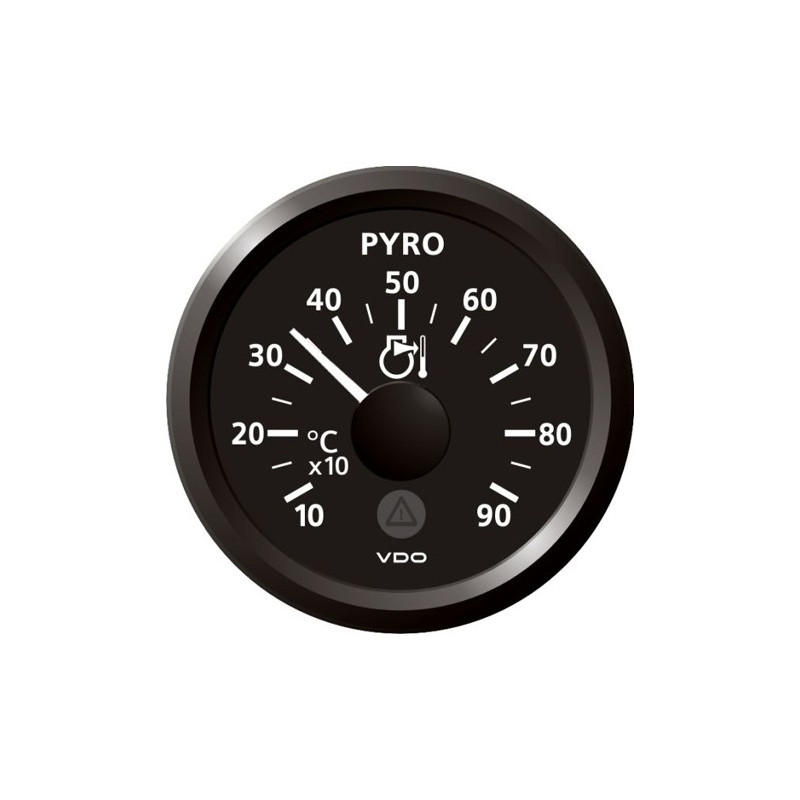

Veratron ViewLine Pyrometer 900°C Black 52mm

Part-number:

Veratron A2C59512314

  • Color: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Measuring range: +100°C to +900°C
  • Front: Single glazed
  • Replacement Pyrometer on request
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Functional description exhaust gas temperature gauge:

Veratron ViewLine A2C59512314 specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth: 50 mm
Panel thickness with spinlock nut: 0.5mm - 20mm
Panel thickness with bracket mounting: 2mm - 15mm (Optional)
Flushmount mounting: Optional kit A2C59510864

Functional:

Exhaust gas temperature: +100°C to +900°C
Exhaust gas temperature gauge input signal: Veratron 37 mV Thermocouple type K
Measurement accuracy: < 2.5 % of the full scale
Connection: Hirschmann 8 pin MQS connector

Power supply:

Supply voltage: 8 to 32 Volts DC
Power consumption: < 140 mA including warning LED
Reverse polarity protection: Yes - 5 minutes
Short-circuit resistance: Yes - 1 minute

Scale & pointer:

Graduation: 240°
Scale color: Black
Scale lighting: Amber LED backlight 605nm
Pointer: White with LED lighting
Alarm LED: Red (632nm)
Programming: Veratron USB software kit

Version:

Model: Veratron ViewLine Standard
Front glass type: Single - Anti-Glare
Standard front ring: Triangle black (Interchangeable)

Degree of protection and certification:

Front protection class: IP67 (IEC 60529)
Back protection class IP52
Relative humidity: Maximum 95%
Operating Temperature: -30°C to +80°C (Plastic front ring)
CE Certification: Yes
DNV GL Certification: Yes
Vibration test 25G - 6ms - 1Hz
Shock test: 100G - 11ms
Drop test: 1 Meter - 3x
Fire safety: UL94-VD

Retail packaging:

  • Veratron ViewLine Black A2C59512314 Exhaust Gas Temperature Gauge
  • Cable with Hirschmann connector 8-pin
  • Front ring triangle black (interchangeable)
  • Spinlock nut
  • Rubber gasket
  • QR code
  • Safety and Installation Instructions
  • Delivery excluding Veratron Pyrosensor
A2C59512314

Data sheet

Warning indication
Red LED Via plus and minus
Supply voltage
8 - 32 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
0 - 37 mV TC
Series
Veratron ViewLine Retail
Meter scale
Single
Lens
Plastic single anti-reflective
Color
Black
IP Class front
IP67 (IEC 60529)
Input
Analogue
Installation size
52 mm - 2 1/16 Inch
Functionality
Exhaust gas temperature
Front ring interchangeable
Yes - Clip-on
Front ring model
Black triangle
Communication
Analogue
Category
Temperature gauges
Article status
Expired product

Specific References

MPN
A2C59512314
