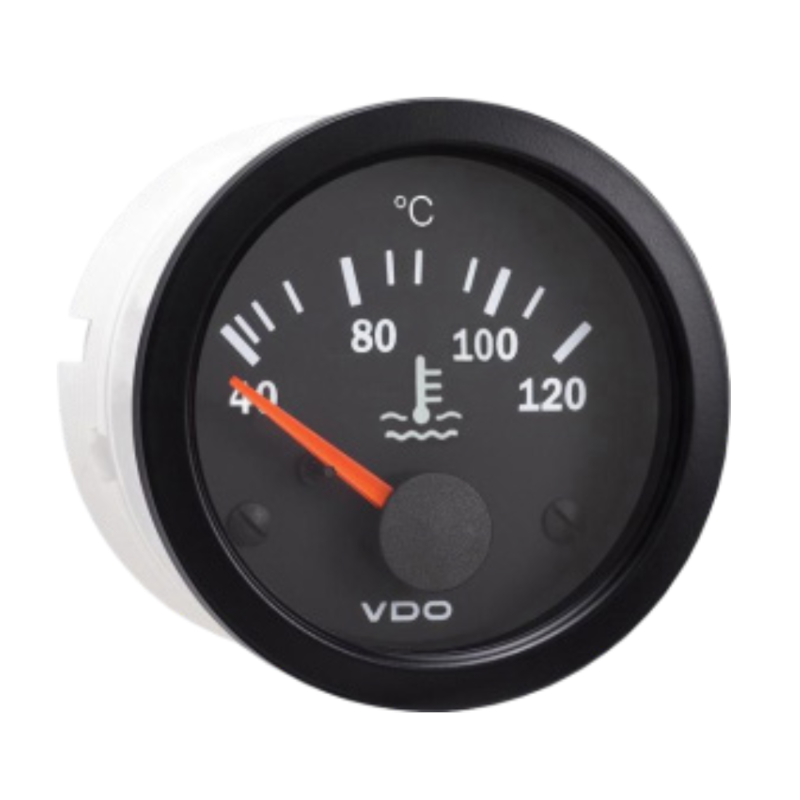

VDO Cockpit Vision Cooling Water Temperature 120°C 52mm 24V
€83.49
(tax incl.)
€69.00 (VAT Excl.)
Part-number:
VDO 310-020-001G
- Color: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: +40°C to +120°C
- Supply voltage: 24 Volt DC
- Retail Packaging Temperature Gauge
Logistical information:
- Weight: 0.50kg
Functional description Cockpit Vision Temperature Gauge:
VDO Cockpit Vision 310 020 001C Specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch |
| Installation depth: | 61 mm |
| Panel thickness with spinlock nut: | 0.5 mm - 23 mm |
| Panel thickness with bracket mounting: | Not available |
| Flushmount mounting: | None |
Functional:
| Cooling water temperature measuring range: | +40°C to +120°C |
| Input signal cooling water temperature meter: | VDO NTC Thermistor 287.4-22.7 Ohm |
| Measurement accuracy: | No statement VDO available |
| Connection: | Flat plug 6.3 x 0.8mm (3x) |
| Connection scale lighting: | Flat plug 6.3 x 0.8mm (2x) |
Power supply:
| Supply voltage: | 21.5 - 30 Volt DC |
| Power consumption without shell lighting: | 131 mA |
| Reverse polarity protection: | Yes |
| Short-circuit resistance: | No statement VDO |
Scale & pointer:
| Graduation: | 90° |
| Scale color: | Black |
| Scale lighting: | Backlight 12V - 2 Watt White - Green - Red and 24V - 2 Watt - Optional |
| Pointer: | Red backlight |
| Alarm indication: | None |
| Programmable: | No |
Version:
| Model: | Cockpit Vision |
| Front glass type: | Single - Anti-Glare |
| Standard front ring: | Triangle black (Screw ring) |
Degree of protection and certification:
| Front protection class: | IP64 (DIN 40050) - Ozone resistant - UV resistant |
| Back protection class | IP42 (DIN 40050) |
| Relative humidity: | No Statement VDO Available |
| Operating Temperature: | -30°C to +85°C |
| CE Certification: | Yes |
| DNV GL Certification: | No statement VDO available |
| Vibration test 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC Test: | According to EN 13309 and ISO 13677 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic Fire Retardant |
OEM (10 pcs) packing:
- VDO Cockpit Vision 310 020 001C Temperature Gauge
- Order connection material separately
- Spinlock nut
310-020-001G
Data sheet
- Warning indication
- None
- Supply voltage
- 21.5 - 30 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- 287.4 - 22.7 Ohm
- Series
- VDO Cockpit Vision
- Lens
- Plastic single anti-reflective
- Color
- Black
- IP Class front
- IP64 (DIN 40050)
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- Cooling water temperature
- Front ring interchangeable
- Yes - Special tools required
- Front ring model
- Black triangle
- Communication
- Analogue
- Category
- Temperature gauges
- Article status
- Discontinued product
Specific References
- MPN
- 310-020-001G
VDO 310-020-001G
- Color: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: +40°C to +120°C
- Supply voltage: 24 Volt DC
- Retail Packaging Temperature Gauge
