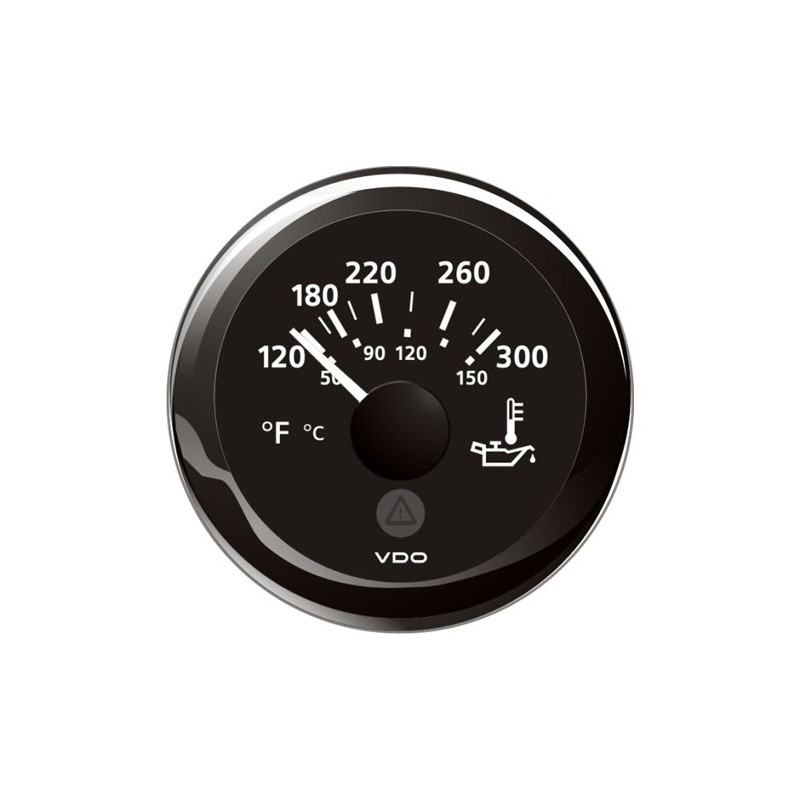

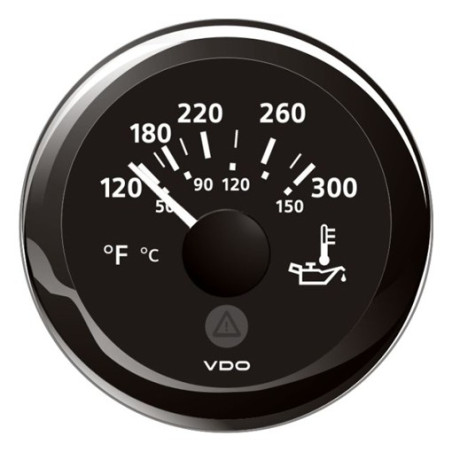

Veratron ViewLine Engine Oil Temperature 300°F Black 52mm

€69.35 (tax incl.)

€57.31 (VAT Excl.)

Part-number:
Veratron A2C59514165
  • Color: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Measurement range: +120°F to +300°F
  • Front: Double glazing - Anti-fog
  • Retail Packaging 1 Temperature Gauge
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 7640178723054
  • Weight: 0.45kg
Quantity

Functional description engine oil temperature gauge:

Veratron ViewLine A2C59514165 specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter:52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth:50 mm
Panel thickness with spinlock nut:0.5mm - 20mm
Panel thickness with bracket mounting:2mm - 15mm (Optional)
Flushmount mounting:Optional kit A2C59510864

Functional:

Engine oil temperature:+120°F to +300°F
Engine oil temperature gauge input signal:Veratron NTC Thermistor 322.8-18.6 Ohm
Measurement accuracy: < 3.6° of the full scale
Connection:Hirschmann 8 pin MQS connector

Power supply:

Supply voltage: 8 to 32 Volts DC
Power consumption:< 140 mA including warning LED
Reverse polarity protection:Yes - 5 minutes
Short-circuit resistance:Yes - 1 minute

Scale & pointer:

Graduation:90°
Scale color:Black
Scale lighting:Amber LED backlight 605nm
Pointer:White with LED lighting
Alarm LED:Red (632nm)
Programming:Veratron USB software kit

Version:

Model:Veratron ViewLine Marine
Front glass type:Double - Anti-fog - Anti-glare
Standard front ring:Round Black (Interchangeable)

Degree of protection and certification:

Front protection class:IP67 (IEC 60529)
Back protection classIP52
Relative humidity:Maximum 95%
Operating Temperature:-30°C to +80°C (Plastic front ring)
CE Certification:Yes
DNV GL Certification:Yes
Vibration test25G - 6ms - 1Hz
Shock test:100G - 11ms
Drop test:1 Meter - 3x
Fire safety:UL94-VD

Retail packaging:

  • Veratron ViewLine Black A2C59514165 Engine Oil Temperature Gauge
  • Cable with Hirschmann connector 8-pin
  • Front ring round black (replaceable)
  • Spinlock nut
  • Rubber gasket
  • QR code
  • Safety and Installation Instructions
  • Delivery excluding Veratron Engine oil temperature sensor
Veratron VDO
A2C59514165

Data sheet

Temperature Measurement Range
120°F - 300°F
Warning indication
Red LED Via plus and minus
Supply voltage
8 - 32 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
322.8 - 18.6 Ohm
Series
Veratron ViewLine Retail
Meter scale
Single
Lens
Plastic double anti-fog
Color
Black
IP Class front
IP67 (IEC 60529)
Input
Analogue
Installation size
52 mm - 2 1/16 Inch
Functionality
Engine oil temperature
Front ring interchangeable
Yes - Clip-on
Front ring model
Black round
Communication
Analogue
Category
Temperature gauges
Article status
Available to order

Specific References

EAN13
7640178723054
MPN
A2C59514165
