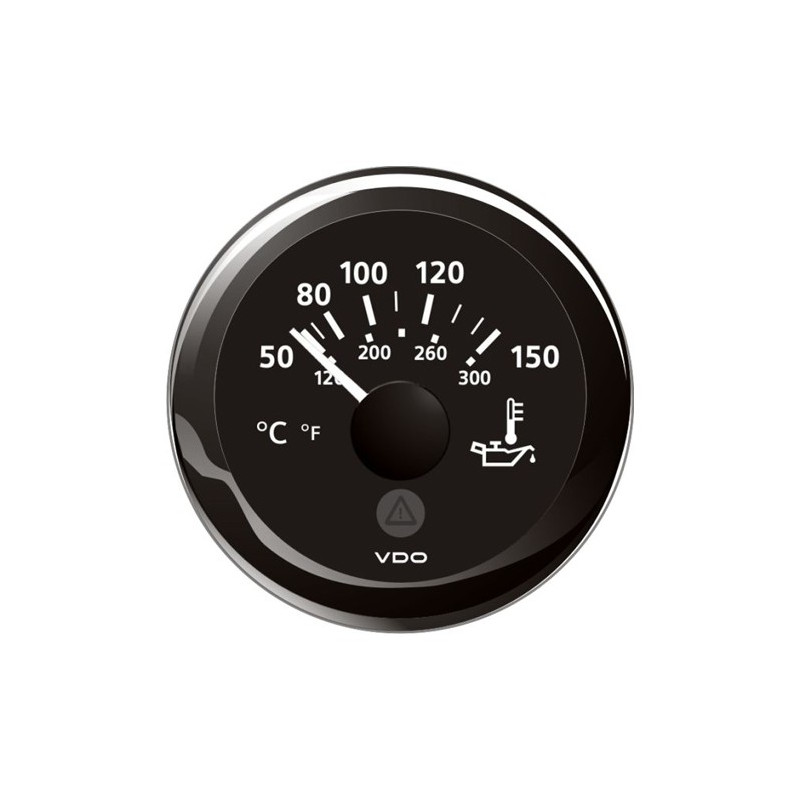

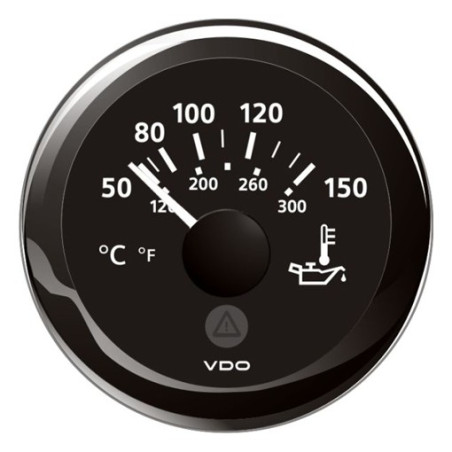

Veratron ViewLine Engine Oil Temperature 150°C Black 52mm
€69.35
(tax incl.)
€57.31 (VAT Excl.)
Part-number:
Veratron A2C59514160
- Color: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: +50°C to +150°C
- Front: Double glazing - Anti-fog
- Retail Packaging 1 Temperature Gauge
Logistical information:
- HS Code: 90251900
- Ean Code: 7640178723047
- Weight: 0.15kg
Functional description engine oil temperature gauge:
Veratron ViewLine A2C59514160 specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch |
| Installation depth: | 50 mm |
| Panel thickness with spinlock nut: | 0.5mm - 20mm |
| Panel thickness with bracket mounting: | 2mm - 15mm (Optional) |
| Flushmount mounting: | Optional kit A2C59510864 |
Functional:
| Engine oil temperature scale top: | +50°C to +150°C |
| Engine oil temperature scale below: | +120°F to +300°F |
| Engine oil temperature gauge input signal: | Veratron NTC Thermistor 322.8-18.6 Ohm |
| Measurement accuracy: | < 3.6° of the full scale |
| Connection: | Hirschmann 8 pin MQS connector |
Power supply:
| Supply voltage: | 8 to 32 Volts DC |
| Power consumption: | < 140 mA including warning LED |
| Reverse polarity protection: | Yes - 5 minutes |
| Short-circuit resistance: | Yes - 1 minute |
Scale & pointer:
| Graduation: | 90° |
| Scale color: | Black |
| Scale lighting: | Amber LED backlight 605nm |
| Pointer: | White with LED lighting |
| Alarm LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Version:
| Model: | Veratron ViewLine Marine |
| Front glass type: | Double - Anti-fog - Anti-glare |
| Standard front ring: | Round Black (Interchangeable) |
Degree of protection and certification:
| Front protection class: | IP67 (IEC 60529) |
| Back protection class | IP52 |
| Relative humidity: | Maximum 95% |
| Operating Temperature: | -30°C to +80°C (Plastic front ring) |
| CE Certification: | Yes |
| DNV GL Certification: | Yes |
| Vibration test | 25G - 6ms - 1Hz |
| Shock test: | 100G - 11ms |
| Drop test: | 1 Meter - 3x |
| Fire safety: | UL94-VD |
Retail packaging:
- Veratron ViewLine Black A2C59514160 Engine Oil Temperature Gauge
- Cable with Hirschmann connector 8-pin
- Front ring round black (replaceable)
- Spinlock nut
- Rubber gasket
- QR code
- Safety and Installation Instructions
- Delivery excluding Veratron Cooling water temperature sensor
Successor to N02 321 715
A2C59514160
Data sheet
- Temperature Measurement Range
- 50°C - 150°C
- Warning indication
- Red LED Via plus and minus
- Predecessor
- A2C53191721
N02 321 715 - Supply voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- 322.8 - 18.6 Ohm
- Series
- Veratron ViewLine Retail
- Meter scale
- Double
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- Analogue
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- Engine oil temperature
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Black round
- Communication
- Analogue
- Category
- Temperature gauges
- Article status
- Available to order
Specific References
- EAN13
- 7640178723047
- MPN
- A2C59514160
