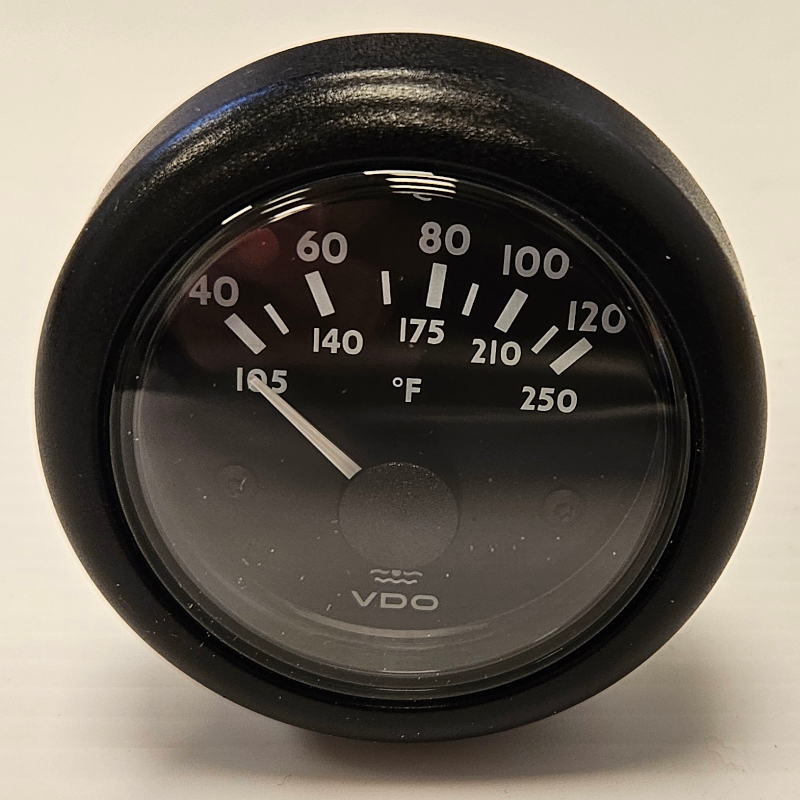

N02-321-812 VDO OceanLine Coolant temperature 120°C / 250° F Black 52mm 12/24 V
search
  • N02-321-812 VDO OceanLine Coolant temperature 120°C / 250° F Black 52mm 12/24 V

VDO OceanLine Coolant temperature 120°C / 250° F Black 52mm 12/24 V

€90.75 (tax incl.)

€75.00 (VAT Excl.)

Part-number:

VDO N02-321-812

  • Color: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Measuring range: +40°C to +120°C & 105°F to 250°F
  • Front: Double glazing - Anti-fog
  • Retail Packaging 1 Temperature Gauge
Logistical information:
Limited availability of run-out itemClick here for detailed information.
  • Weight: 0.20kg
Quantity
This part is no longer available. Please ask us if there is an alternative.

Functional description engine oil temperature gauge:

VDO OceanLine N02-321-716 specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth: 50 mm
Panel thickness with spinlock nut: 0.5mm - 20mm
Panel thickness with bracket mounting: 2mm - 15mm (Optional)
Flushmount mounting: Optional

Functional:

Engine oil temperature scale top: +40°C to +120°C
Engine oil temperature scale below: +105°F to +250°F
Measurement accuracy: < 3.6° of the full scale
Connection: AMP 6.3mm

Power supply:

Supply voltage: 12 / 24 Volt DC
Power consumption: < 140 mA
Reverse polarity protection: No
Short-circuit resistance: No

Scale & pointer:

Graduation: 90°
Scale color: Black
Scale lighting: Backlight 605nm
Pointer: Red
Alarm LED: Optional
Programming: None

Version:

Model: VDO OceanLine Marine
Front glass type: Double - Anti-fog - Anti-glare
Standard front ring: Round Black (Interchangeable)

Degree of protection and certification:

Front protection class: IP67 (IEC 60529)
Back protection class IP52
Relative humidity: Maximum 95%
Operating Temperature: -30°C to +80°C (Plastic front ring)
CE Certification: Yes
DNV GL Certification: Yes
Vibration test 25G - 6ms - 1Hz
Shock test: 100G - 11ms
Drop test: 1 Meter - 3x
Fire safety: UL94-VD

Retail packaging:

  • VDO OceanLine Black N02-321-811 (812) Engine Oil Temperature Gauge
  • Front ring round black (replaceable)
  • Spinlock nut
  • Safety and Installation Instructions
  • Delivery excluding VDO Oil temperature sensor
VDO Continental I
N02-321-812

Data sheet

Temperature Measurement Range
+40°C to +120°C
100°F - 250°F
Supply voltage
12 - 24 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
4 - 20 mA
Series
VDO Marine OceanLine
Meter scale
Double
Lens
Plastic double anti-fog
Color
Black
Input
Analogue
Installation size
52 mm - 2 1/16 Inch
Functionality
Engine oil temperature
Front ring interchangeable
Yes - Clip-on
Front ring model
Black round
Communication
Analogue
Category
Temperature gauges
Article status
Limited availability of run-out item
Successor
A2C59514160

Specific References

MPN
N02-321-812
