Continental VDO - Oil temperature sensor 150°C - 1/4-18 NPTF

€47.08 (tax incl.)

€38.91 (VAT Excl.)

Part-number:

VDO A2C1755340001

  • Temperature range: +50°C to +150°C
  • Thread: 1/4-18 NPTF
  • Sender resistance range: 322.8 - 18.6 Ohm
  • Sensor signal: 1-pole common ground
  • No warning contact
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90259000
  • Ean Code: 410359068271
  • Weight: 0.04kg
Quantity

Description engine- and transmission- oil temperature sender:

VDO A2C1755340001 Full technical specifications:

Mechanical features:

Temperature measuring range: +50°C to +150°C
Minimum - Maximum operating temperature: -40 °C to +180 °C
Thread: 1/4-18 NPTF

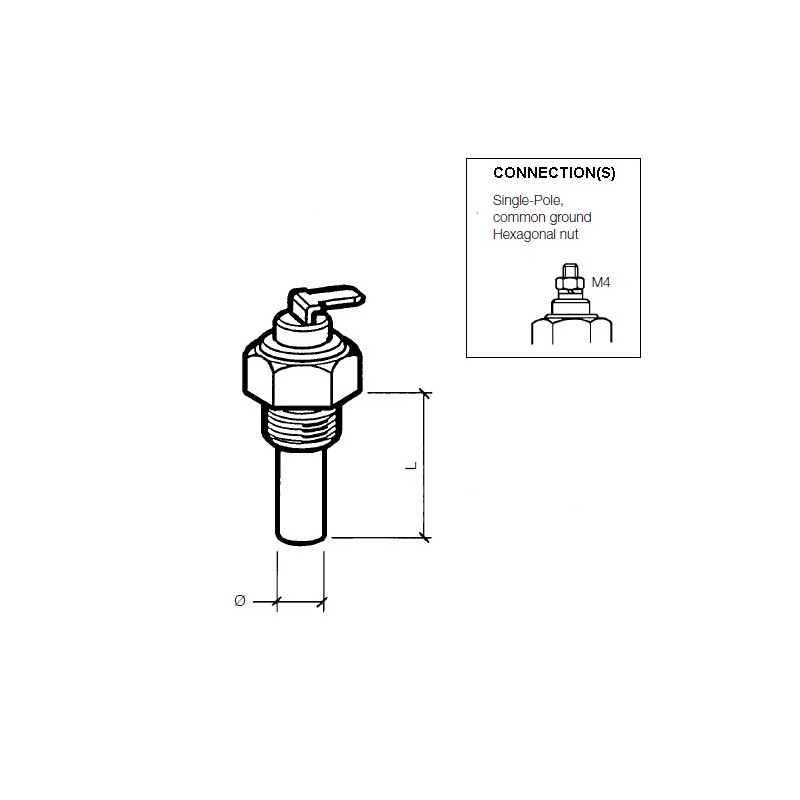

Sender element length + thread (L): 29 mm
Sensor diameter: 9 mm
Torque: 20 Nm
Temperature medium: Coolant - Water - Air - Engine oil - Transmission oil - Fuel

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 322.8 - 18.6 Ohm
Temperature sensor signal: Single-Pole common ground
Warning contact: None
Optional warning contact: VDO A2C59510886 Makepoint Switch
Temperature sender connector: M4 Hexagonal nut

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog: Page 136 - 137
Type of connection: D
VDO En Du Temperature senders Tables: VDO table: 2
Temperature 100 °C > Resistance: 100 °C = 61.92 Ohm ± 5.49 Ohm

Retail package:

  • VDO A2C1755340001 Temperature sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
A2C1755340001

Data sheet

Temperature Measurement Range
+50°C to +150°C
Warning contact
None
Predecessor
323-801-004-017D
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
322.8 - 18.6 Ohm
Application
VDO Engine control
Signal analog
322.8 - 18.6 Ohm
Sensor signal
Minus in mass
Sensor connector
M4 Hex Nut
Thread
1/4" - 18 NPTF Male
Country of origin
Czech Republic
Functionality
Oil temperature
Connector type
M4 Hex Nut
Communication
Analogue
Category
Temperature sensors
Article status
Available to order
Alternate format
323 801 004 017P
323/801/4/17 DAYS

Specific References

EAN13
410359068271
MPN
A2C1755340001
