323-801-001-006N Continental VDO Cooling Water Sensor 120°C - M14
search
  • 323-801-001-006N Continental VDO Cooling Water Sensor 120°C - M14
  • 323-801-001-006N Continental VDO Cooling Water Sensor 120°C - M14

Continental VDO Coolant Temperature Transmitter 120°C - M14

€29.46 (tax incl.)

€24.35 (VAT Excl.)

Part-number:

VDO 323-801-001-006N

  • Temperature range: +40 °C to +120 °C
  • Thread: M14 x 1.5
  • Sender resistance range: 287.4 - 22.7 Ohm
  • Sensor signal: 1-pole common ground
  • No warning contact
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90259000
  • Ean Code: 4103590400123
  • Weight: 0.03kg
Quantity
This part is no longer available. Please ask us if there is an alternative.

Description coolant temperature sender:

VDO 323 801 001 006N Full technical specifications:

Mechanical features:

Temperature measuring range: +40 °C to +120 °C
Minimum - Maximum operating temperature: -40 °C to +150 °C
Thread: M14 x 1.5

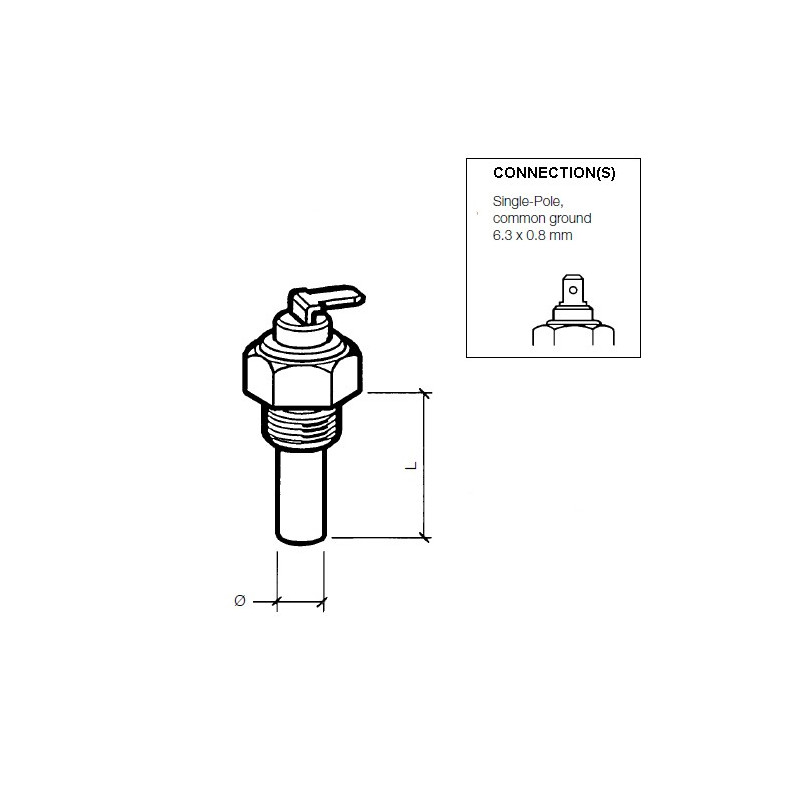

Sender element length + thread (L): 29 mm
Sensor diameter: 9 mm
Torque: 20 Nm
Temperature medium: Coolant - Water - Air - Engine oil - Transmission oil - Fuel

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 287.4 - 22.7 Ohm
Temperature sensor signal: Single-Pole common ground
Warning contact: None
Optional warning contact: VDO A2C59510886 Makepoint Switch
Temperature sender connector: AMP Male 6.3 x 0.8 mm

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog: Page 136 - 137
Type of connection: A
VDO En Du Temperature senders Tables: VDO table: 1
Temperature 100 °C > Resistance: 100 °C = 38.47 Ohm ± 2.98 Ohm

Retail package:

  • VDO 323 801 001 006N Temperature sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
323-801-001-006N

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
M14 x 1.5 Male
Country of origin
Czech Republic
Functionality
Cooling water temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Expired product
Alternate format
323 801 001 006N
323/801/1/6N

Specific References

EAN13
4103590400123
MPN
323-801-001-006N
