Continental VDO - Oil temperature sensor 150°C - M16
€44.46
(tax incl.)
€36.74 (VAT Excl.)
Part-number:
VDO A2C1755260001
- Temperature measuring range: +50°C to +150°C
- Thread: M16 x 1.5
- Resistance Rating: 322.8 - 18.6 Ohm
- Output: Min to mass
- No warning contact
Logistical information:
- HS Code: 90259000
- Ean Code: 4103590682703
- Weight: 0.04kg
Technical description engine and transmission oil temperature sensor:
VDO A2C1755260001 specifications:
Mechanical properties:
| Temperature measurement range: | +50 °C to +150 °C |
| Minimum - Maximum Operating Temperature: | -40 °C to +180 °C |
| Thread: | M16 x 1.5 |

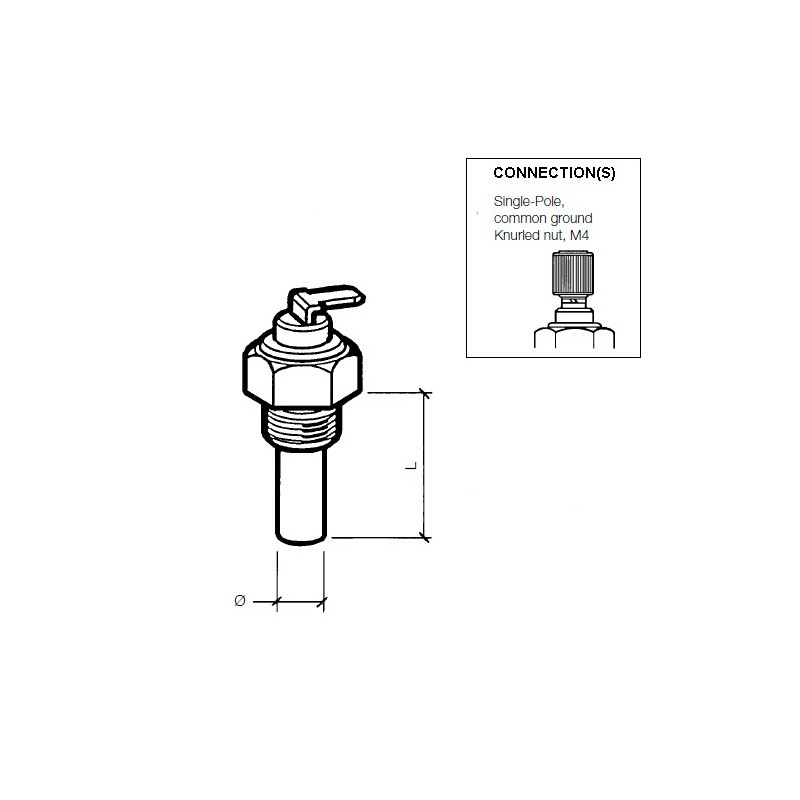

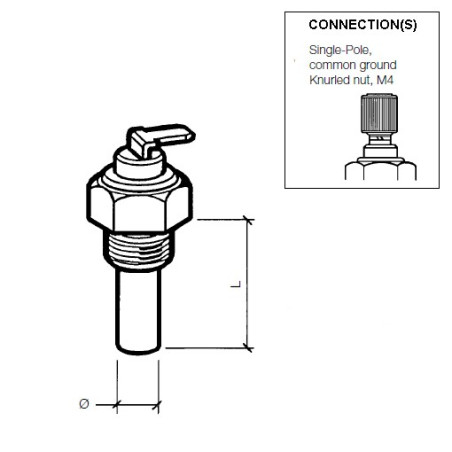

| Sensor length + thread (L): | 29 mm |
| Sensor diameter: | 9 mm |
| Torque: | 30 Nm |
| Temperature medium: | Oil - petroleum - diesel - gasoline - air - water - coolant |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value: | 322.8 - 18.6 Ohm |
| Temperature sensor output signal: | 1-pole min to ground |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
| Temperature sensor connection: | M4 Plastic knurled nut |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 136 - 137 |
| Type of connection: | Model: E |
| VDO En Du Temperature Sensors Tables: | VDO table: 2 - (See images) |
| Temperature 100 °C > Resistance: | 100 °C = 61.92 Ohm ± 5.49 Ohm |
| VDO Temperature sensors are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO A2C1755260001 Temperature sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
A2C1755260001
Data sheet
- Temperature Measurement Range
- +50°C to +150°C
- Warning contact
- None
- Predecessor
- 323-801-004-012C
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 322.8 - 18.6 Ohm
- Application
- VDO Engine control
- Signal analog
- 322.8 - 18.6 Ohm
- Sensor signal
- Minus in mass
- Sensor connector
- M4 Plastic knurled nut
- Thread
- M16 x 1.5 Male
- Country of origin
- Czech Republic
- Functionality
- Oil temperature
- Connector type
- M4 Plastic knurled nut
- Communication
- Analogue
- Category
- Temperature sensors
- Article status
- Available to order
- Alternate format
- 323 801 004 012C
323/801/4/12C
Specific References
- EAN13
- 4103590682703
- MPN
- A2C1755260001
VDO A2C1755260001
- Temperature measuring range: +50°C to +150°C
- Thread: M16 x 1.5
- Resistance Rating: 322.8 - 18.6 Ohm
- Output: Min to mass
- No warning contact
