323-801-001-026N VDO Cooling Water Sensor 120°C - M14
search
  • 323-801-001-026N VDO Cooling Water Sensor 120°C - M14
  • 323-801-001-026N VDO Cooling Water Sensor 120°C - M14

VDO Coolant Temperature Transmitter 120°C - M14

€24.41 (tax incl.)

€20.17 (VAT Excl.)

Part-number:

VDO 323-801-001-026N

  • Temperature range: +40 °C to +120 °C
  • Thread: M14 x 1.5
  • Sender resistance range: 287.4 - 22.7 Ohm
  • Sensor signal: 1-pole common ground
  • No warning contact
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90259000
  • Ean Code: 410359094924
  • Weight: 0.10kg
Quantity

Description coolant temperature sender:

VDO 323 801 001 026N Full technical specifications:

Mechanical features:

Temperature measuring range: +40 °C to +120 °C
Minimum - Maximum operating temperature: -40 °C to +150 °C
Thread: M14 x 1.5

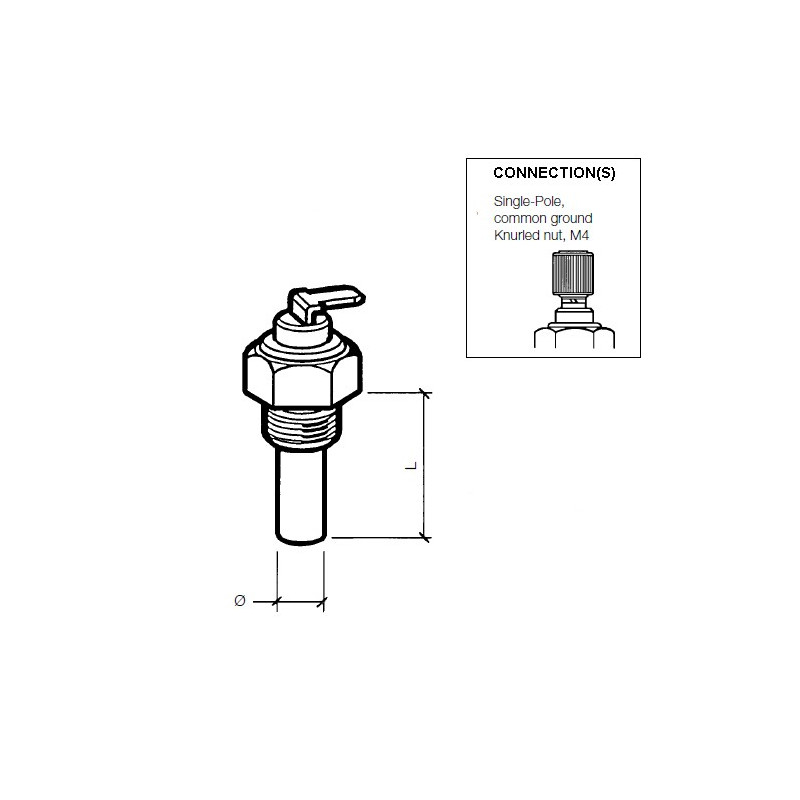

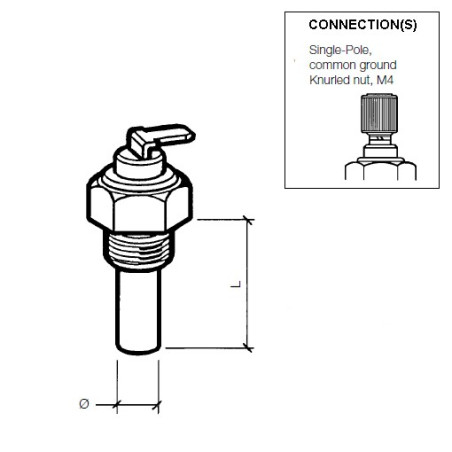

Sender element length + thread (L): 29 mm
Sensor diameter: 9 mm
Torque: 20 Nm
Temperature medium: Coolant - Water - Air - Engine oil - Transmission oil - Fuel

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 287.4 - 22.7 Ohm
Temperature sensor signal: Single-Pole common ground
Warning contact: None
Optional warning contact: VDO A2C59510886 Makepoint Switch
Temperature sender connector: M4 Plastic knurled nut

Datasheets and Tables:

VDO 2014 Vehicle Electronics Catalog: Page 136 - 137
Type of connection: E
VDO En Du Temperature senders Tables: VDO table: 1
Temperature 100 °C > Resistance: 100 °C = 38.47 Ohm ± 2.98 Ohm

Retail package:

  • VDO 323 801 001 026N Temperature sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
323-801-001-026N

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Minus in mass
Sensor connector
M4 Plastic knurled nut
Thread
M14 x 1.5 Male
Country of origin
Czech Republic
Functionality
Cooling water temperature
Connector type
M4 Plastic knurled nut
Communication
Analogue
Category
Temperature sensors
Article status
Available to order
Alternate format
323 801 001 026N
323/801/1/26N

Specific References

EAN13
410359094924
MPN
323-801-001-026N
