50 pieces VDO Coolant Temperature Sensor 120°C - M16

Part-number:

VDO 323-801-001-040B

  • Temperature measuring range: +40 °C to +120 °C
  • Thread: M16 x 1.5
  • Resistance Rating: 287.4 - 22.7 Ohm
  • Sensor signal: 1-pole common ground
  • No warning contact
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description cooling system temperature sensor:

VDO 323 801 001 040B specifications:

Mechanical properties:

Temperature measurement range: +40 °C to +120 °C
Minimum - Maximum Operating Temperature: -40 °C to +150 °C
Thread: M16 x 1.5
Sensor length + thread (L): 29 mm
Sensor diameter: 9 mm
Torque: 30 Nm
Temperature medium: Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 287.4 - 22.7 Ohm
Temperature sensor output signal: 1-pole min to ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Temperature sensor connection: Flat plug straight 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 136 - 137

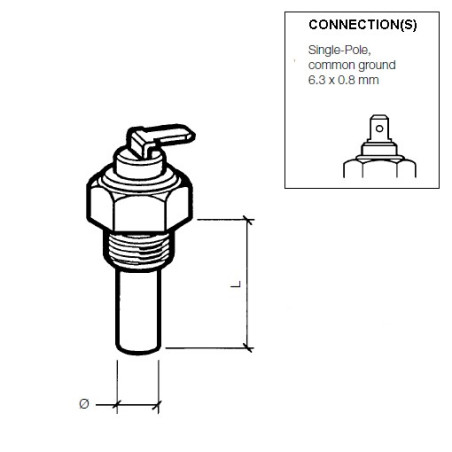

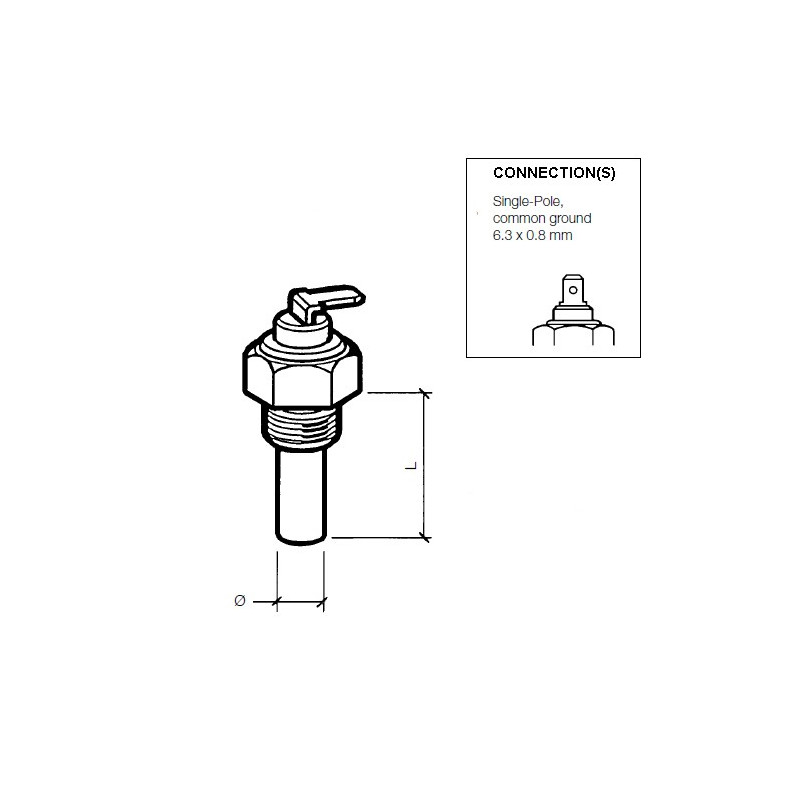

Type of connection: Model: A
VDO En Du Temperature Sensors Tables: VDO table: 1 - (See images)
Temperature 100 °C > Resistance: 100 °C = 38.47 Ohm ± 2.98 Ohm
VDO Temperature sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 323 801 001 040B Temperature Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
323-801-001-040B

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor OEM bulk packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
M16 x 1.5 Male
Functionality
Coolant temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 801 001 040B
323/801/1/40B

Specific References

MPN
323-801-001-040B
