Continental VDO - Oil Temperature Sensor 150°C - M14

Part-number:

VDO 323-801-004-002N

  • Temperature measuring range: +50°C to +150°C
  • Thread: M14 x 1.5
  • Resistance Rating: 322.8 - 18.6 Ohm
  • Output: Min to mass
  • No warning contact
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90259000
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description engine and transmission oil temperature sensor:

VDO 323 801 004 002N Specifications:

Mechanical properties:

Temperature measurement range: +50 °C to +150 °C
Minimum - Maximum Operating Temperature: -40 °C to +180 °C
Thread: M14 x 1.5

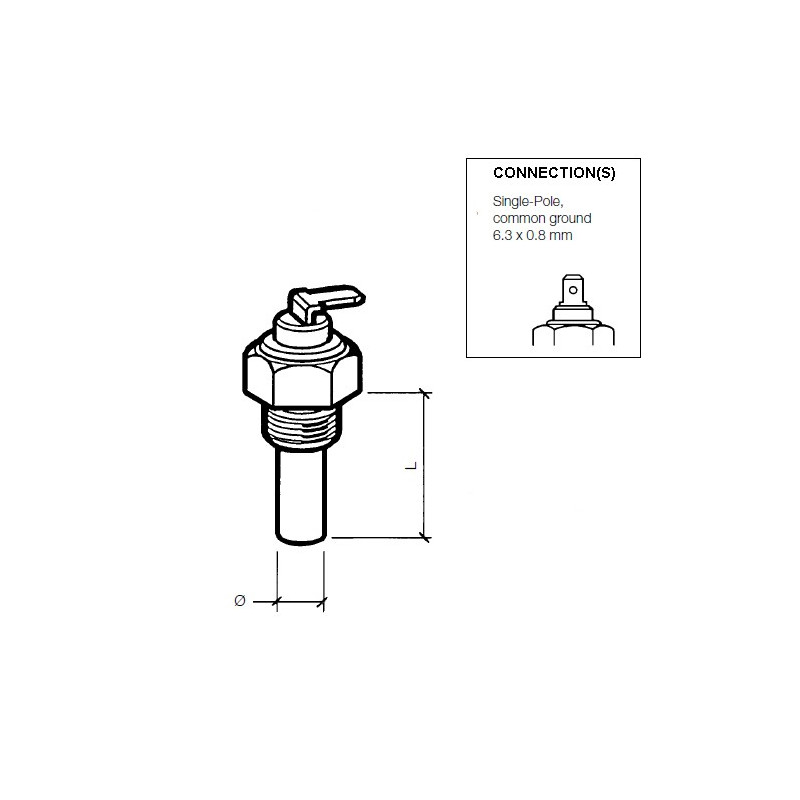

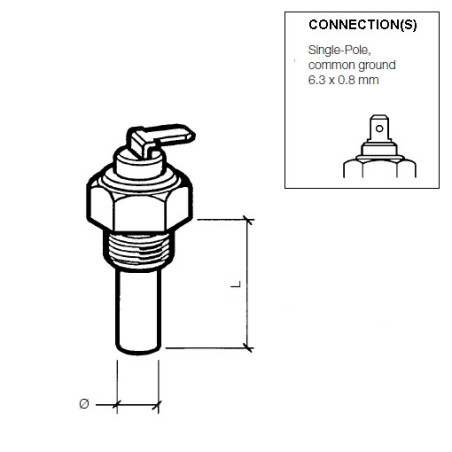

Sensor length + thread (L): 29 mm
Sensor diameter: 9 mm
Torque: 20 Nm
Temperature medium: Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 322.8 - 18.6 Ohm
Temperature sensor output signal: 1-pole min to ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Temperature sensor connection: Flat plug straight 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 136 - 137
Type of connection: Model: A
VDO En Du Temperature Sensors Tables: VDO table: 2 - (See images)
Temperature 100 °C > Resistance: 100 °C = 61.92 Ohm ± 5.49 Ohm
VDO Temperature sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 323 801 004 002N Temperature Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
323-801-004-002N

Data sheet

Temperature Measurement Range
+50°C to +150°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
322.8 - 18.6 Ohm
Application
VDO Engine control
Signal analog
322.8 - 18.6 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
M14 x 1.5 Male
Functionality
Oil temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Expired product
Alternate format
323 801 004 002N
323/801/4/2N
Successor
A2C1754920001

Specific References

MPN
323-801-004-002N
