VDO Oil Temperature Sensor 150°C – 5/8-18 NF-3A

Part-number:
VDO 323-801-004-009D
  • Temperature measuring range: +50°C to +150°C
  • Thread: 5/8-18 UNF-3A
  • Resistance Rating: 322.8 - 18.6 Ohm
  • Output: Min to mass
  • Replacement product on request
Logistical information:
Discontinued productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description engine and transmission oil temperature sensor:

VDO 323 801 004 009D Specifications:

Mechanical properties:

Temperature measurement range:+50 °C to +150 °C
Minimum - Maximum Operating Temperature:-40 °C to +180 °C
Thread:5/8-18 UNF-3A

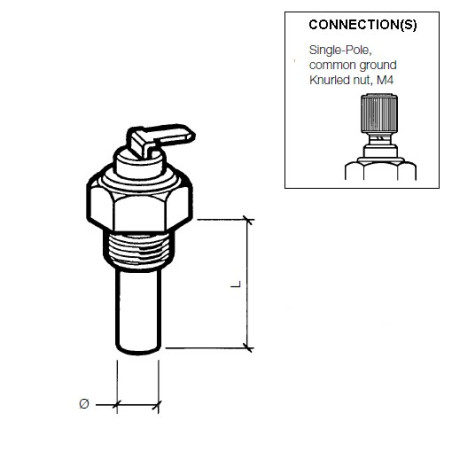

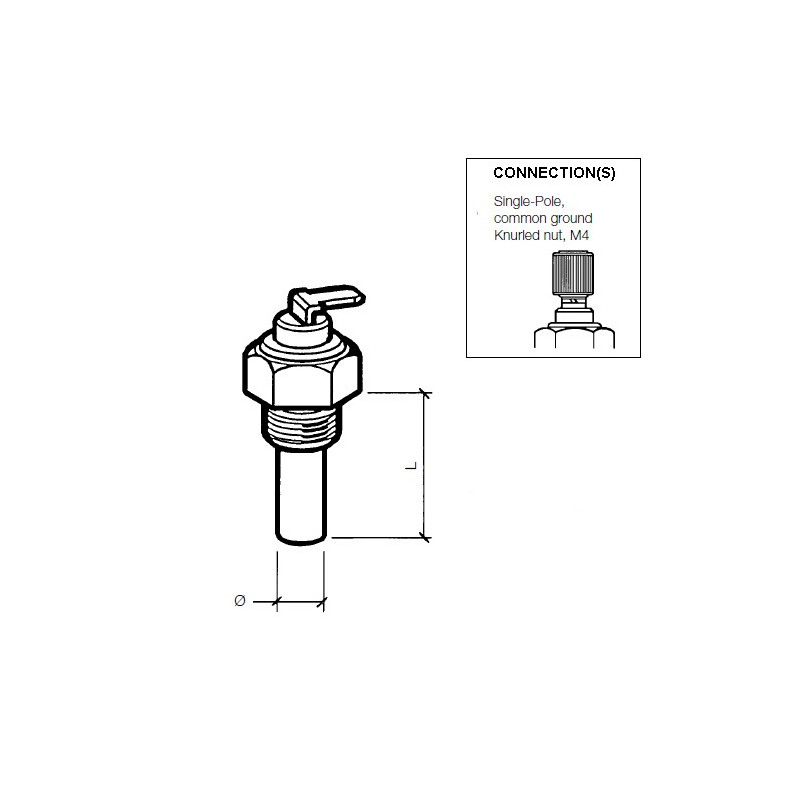

Sensor length + thread (L):29 mm
Sensor diameter:9 mm
Torque:20 Nm
Temperature medium:Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:322.8 - 18.6 Ohm
Temperature sensor output signal:1-pole min to ground
Warning contact:None
Warning function:Optional VDO A2C59510886 Makepoint Switch
Temperature sensor connection:M4 Plastic knurled nut

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 136 - 137
Type of connection:Model: E
VDO En Du Temperature Sensors Tables:VDO table: 2 - (See images)
Temperature 100 °C > Resistance:100 °C = 61.92 Ohm ± 5.49 Ohm
VDO Temperature sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 323 801 004 009D Temperature Sensor
  • On request
323-801-004-009D

Data sheet

Temperature Measurement Range
+50°C to +150°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
322.8 - 18.6 Ohm
Application
VDO Engine control
Signal analog
322.8 - 18.6 Ohm
Sensor signal
Minus in mass
Sensor connector
M4 Plastic knurled nut
Thread
5/8"-18 UNF-3A Male
Functionality
Oil temperature
Connector type
M4 Plastic knurled nut
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 801 004 009P
323/801/4/9D

Specific References

MPN
323-801-004-009D
