Continental VDO Cooling Water Sensor 120°C - M14

Part-number:

VDO 323-803-001-022D

  • Temperature measuring range: +40 °C to +120 °C
  • Thread: M14 x 1.5
  • Resistance Rating: 287.4 - 22.7 Ohm
  • Output: Min to mass
  • Warning contact: 118 °C ± 3 °C
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90259000
  • Ean Code: 4103590689917
  • Weight: 0.26kg
Discontinued article
Replacement article on request

Technical description cooling system temperature sensor:

VDO 323 803 001 022D Specifications:

Mechanical properties:

Temperature measurement range: +40 °C to +120 °C
Minimum - Maximum Operating Temperature: -40 °C to +150 °C
Thread: M14 x 1.5

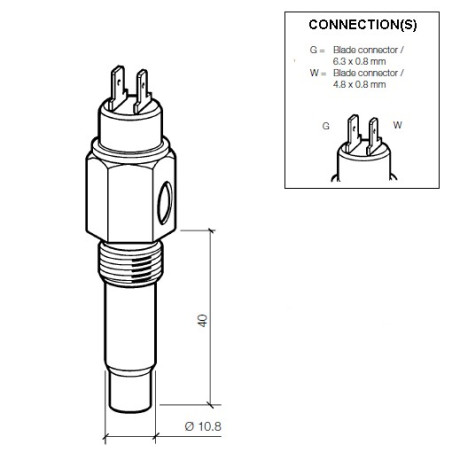

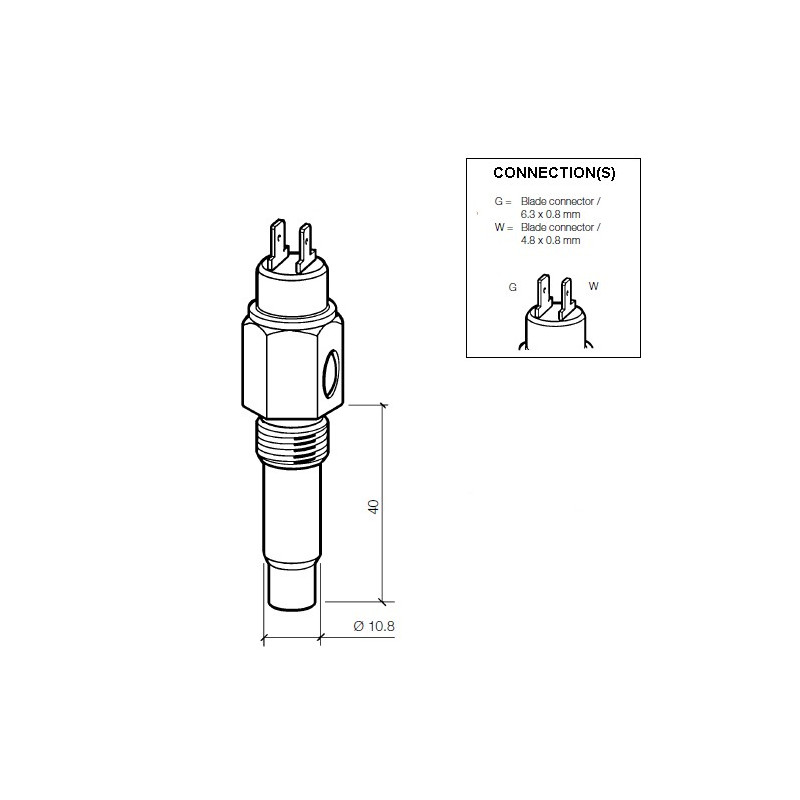

Sensor length + thread (L): 40 mm
Sensor diameter: 10.8 mm
Torque: 20 Nm
Temperature medium: Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 287.4 - 22.7 Ohm
Temperature sensor output signal: 1-pole min to ground
Warning contact: 118 °C ± 3 °C
Load warning contact 1.2 to 3 Watt induction-free
Warning contact properties Contact closes with rising temperature
Temperature sensor connection: Flat plug straight 6.3 x 0.8 mm
Warning contact connection: Flat plug straight 4.8 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 142 - 143
Type of connection: Model: A
VDO And Du Temperature Sensors Tables: VDO table: 1 - (See images)
Temperature 100 °C > Resistance: 100 °C = 38.47 Ohm ± 2.98 Ohm
VDO Temperature sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 323 803 001 022D Temperature Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
323-803-001-022D

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact connector
Flat plug 6.3 x 0.8 mm
Warning contact
118 °C ± 3 °C
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
M14 x 1.5 Male
Functionality
Cooling water temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Expired product
Alternate format
323 803 001 022D
323/803/1/22D

Specific References

EAN13
4103590689917
MPN
323-803-001-022D
