VDO Cooling Water Sensor 120°C - M14
Part-number:
VDO 323-803-001-028D
- Temperature measuring range: +40 °C to +120 °C
- Thread: M14 x 1.5
- Resistance Rating: 287.4 - 22.7 Ohm
- Output: Min to mass
- Warning contact: 98 °C ± 3 °C
Logistical information:
- HS Code: 90259000
- Ean Code: 4103590689931
- Weight: 0.06kg
Technical description cooling system temperature sensor:
VDO 323 803 001 028D Specifications:
Mechanical properties:
| Temperature measurement range: | +40 °C to +120 °C |
| Minimum - Maximum Operating Temperature: | -40 °C to +150 °C |
| Thread: | M14 x 1.5 |

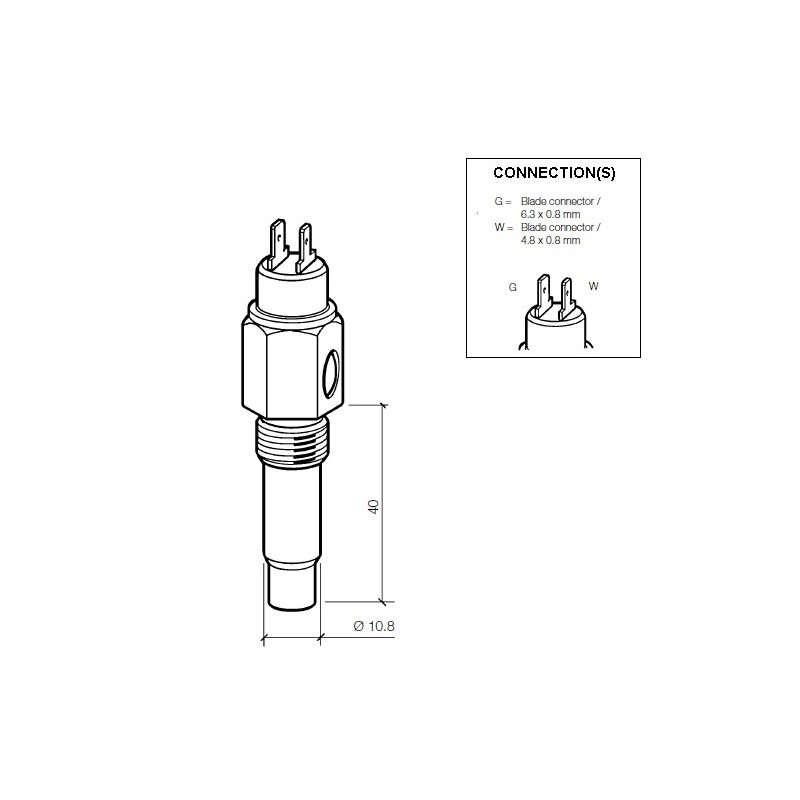

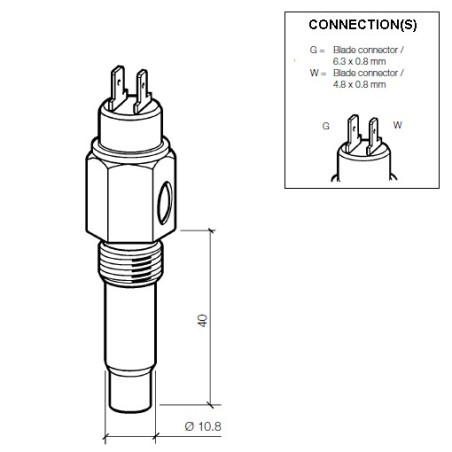

| Sensor length + thread (L): | 40 mm |
| Sensor diameter: | 10.8 mm |
| Torque: | 20 Nm |
| Temperature medium: | Oil - petroleum - diesel - gasoline - air - water - coolant |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value: | 287.4 - 22.7 Ohm |
| Temperature sensor output signal: | 1-pole min to ground |
| Warning contact: | 98 °C ± 3 °C |
| Load warning contact | 1.2 to 3 Watt induction-free |
| Warning contact properties | Contact closes with rising temperature |
| Temperature sensor connection: | Flat plug straight 6.3 x 0.8 mm |
| Warning contact connection: | Flat plug straight 4.8 x 0.8 mm |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 142 - 143 |
| Type of connection: | Model: A |
| VDO And Du Temperature Sensors Tables: | VDO table: 1 - (See images) |
| Temperature 100 °C > Resistance: | 100 °C = 38.47 Ohm ± 2.98 Ohm |
| VDO Temperature sensors are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 323 803 001 028D Temperature Sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
323-803-001-028D
Data sheet
- Temperature Measurement Range
- +40°C to +120°C
- Warning contact connector
- Flat plug 6.3 x 0.8 mm
- Warning contact
- 98 °C ± 3 °C
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 287.4 - 22.7 Ohm
- Application
- VDO Engine control
- Signal analog
- 287.4 - 22.7 Ohm
- Sensor signal
- Minus in mass
- Sensor connector
- Flat plug 6.3 x 0.8 mm
- Thread
- M14 x 1.5 Male
- Country of origin
- Czech Republic
- Functionality
- Cooling water temperature
- Connector type
- Flat plug 6.3 x 0.8 mm
- Communication
- Analogue
- Category
- Temperature sensors
- Article status
- Discontinued product
- Alternate format
- 323 803 001 028D
323/803/1/28D
Specific References
- EAN13
- 4103590689931
- MPN
- 323-803-001-028D
VDO 323-803-001-028D
- Temperature measuring range: +40 °C to +120 °C
- Thread: M14 x 1.5
- Resistance Rating: 287.4 - 22.7 Ohm
- Output: Min to mass
- Warning contact: 98 °C ± 3 °C
