VDO Cooling Water Sensor 120°C - 1/2-14 NPTF

Part-number:
VDO 323-803-001-062C
  • Temperature measuring range: +40 °C to +120 °C
  • Thread: 1/2-14 NPTF
  • Resistance Rating: 287.4 - 22.7 Ohm
  • Output: Min to mass
  • Warning contact: 114 ± 3 °C
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90259000
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description cooling system temperature sensor:

VDO 323 803 001 062C Specifications:

Mechanical properties:

Temperature measurement range:+40 °C to +120 °C
Minimum - Maximum Operating Temperature:-40 °C to +150 °C
Thread:1/2-14 NPTF

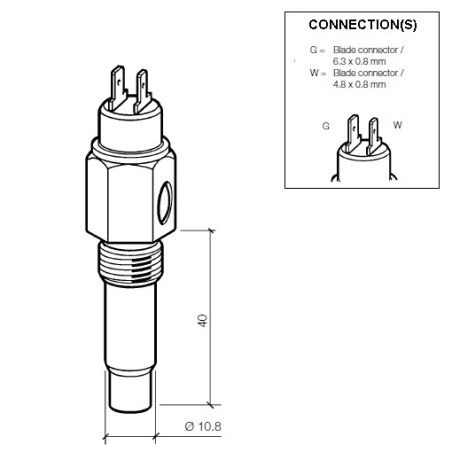

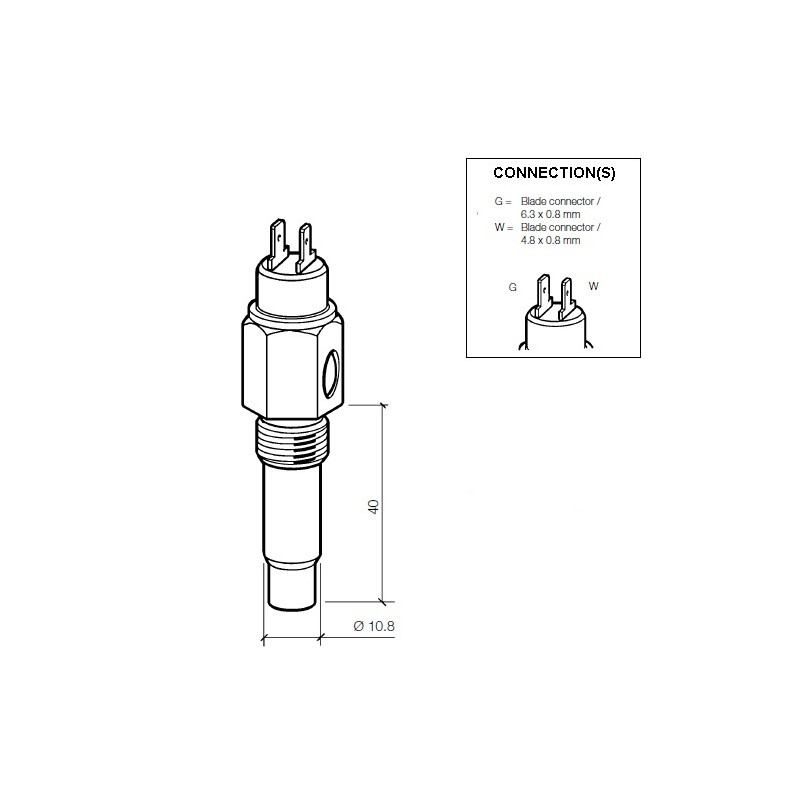

Sensor length + thread (L):40 mm
Sensor diameter:10.8 mm
Torque:30 Nm
Temperature medium:Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:287.4 - 22.7 Ohm
Temperature sensor output signal:1-pole min to ground
Warning contact:114 ± 3 °C
Load warning contact1.2 to 3 Watt induction-free
Warning contact propertiesContact closes with rising temperature
Temperature sensor connection:Flat plug straight 6.3 x 0.8 mm
Warning contact connection:Flat plug straight 4.8 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 142 - 143
Type of connection:Model: A
VDO And Du Temperature Sensors Tables:VDO table: 1 - (See images)
Temperature 100 °C > Resistance:100 °C = 38.47 Ohm ± 2.98 Ohm
VDO Temperature sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 323 803 001 062C Temperature Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
323-803-001-062C

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact connector
Flat plug 6.3 x 0.8 mm
Warning contact
114 °C ± 3 °C
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
1/2" - 14 NPTF Male
Functionality
Cooling water temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 803 001 062C
323/803/1/62C

Specific References

MPN
323-803-001-062C
