323-803-004-002B VDO Cooling Water Sensor 120°C - M14
search
  • 323-803-004-002B VDO Cooling Water Sensor 120°C - M14
  • 323-803-004-002B VDO Cooling Water Sensor 120°C - M14

VDO Cooling Water Sensor 120°C - M14

Part-number:

VDO 323-803-004-002B

  • Temperature measuring range: +40 °C to +120 °C
  • Thread: M14 x 1.5
  • Resistance Rating: 287.4 - 22.7 Ohm
  • Output: Min to mass
  • Warning contact: 105 ± 3 °C
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90259000
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description cooling system temperature sensor:

VDO 323 803 004 002B specifications:

Mechanical properties:

Temperature measurement range: +40 °C to +120 °C
Minimum - Maximum Operating Temperature: -40 °C to +150 °C
Thread: M14 x 1.5

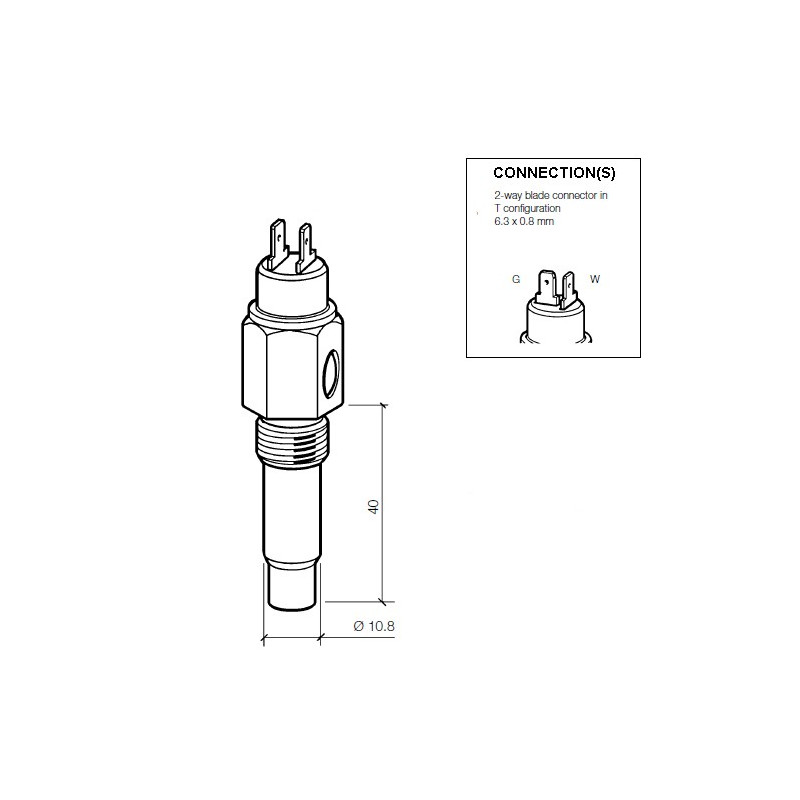

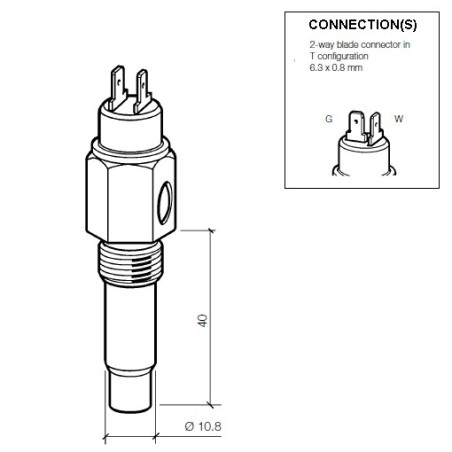

Sensor length + thread (L): 40 mm
Sensor diameter: 10.8 mm
Torque: 20 Nm
Temperature medium: Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 287.4 - 22.7 Ohm
Temperature sensor output signal: 1-pole min to ground
Warning contact: 105 ± 3 °C
Load warning contact 1.2 to 3 Watt induction-free
Warning contact properties Contact closes with rising temperature
Temperature sensor connection: Flat plug straight T-model 6.3 x 0.8 mm
Warning contact connection: Flat plug straight T-model 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 142 - 143
Type of connection: Model: B
VDO And Du Temperature Sensors Tables: VDO table: 1 - (See images)
Temperature 100 °C > Resistance: 100 °C = 38.47 Ohm ± 2.98 Ohm
VDO Temperature sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 323 803 004 002B Temperature Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
323-803-004-002B

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact connector
Flat plug 6.3 x 0.8 mm
Warning contact
105 °C ± 3 °C
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Minus in mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
M14 x 1.5 Male
Functionality
Cooling water temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 803 004 002B
323/803/4/2B

Specific References

MPN
323-803-004-002B
