VDO Cooling Water Sensor 120°C - 1/4-18 NPTF

Part-number:
VDO 323-805-001-007N
  • Temperature measuring range: +40 °C to +120 °C
  • Thread: 1/4-18 NPTF
  • Resistance Rating: 287.4 - 22.7 Ohm
  • Output: Isolated from ground
  • Replacement product on request
Logistical information:
Discontinued productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description cooling system temperature sensor:

VDO 323 805 001 007N specifications:

Mechanical properties:

Temperature measurement range:+40 °C to +120 °C
Minimum - Maximum Operating Temperature:-40 °C to +150 °C
Thread:1/4-18 NPTF

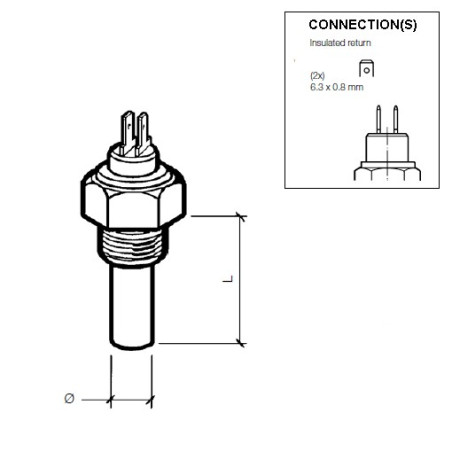

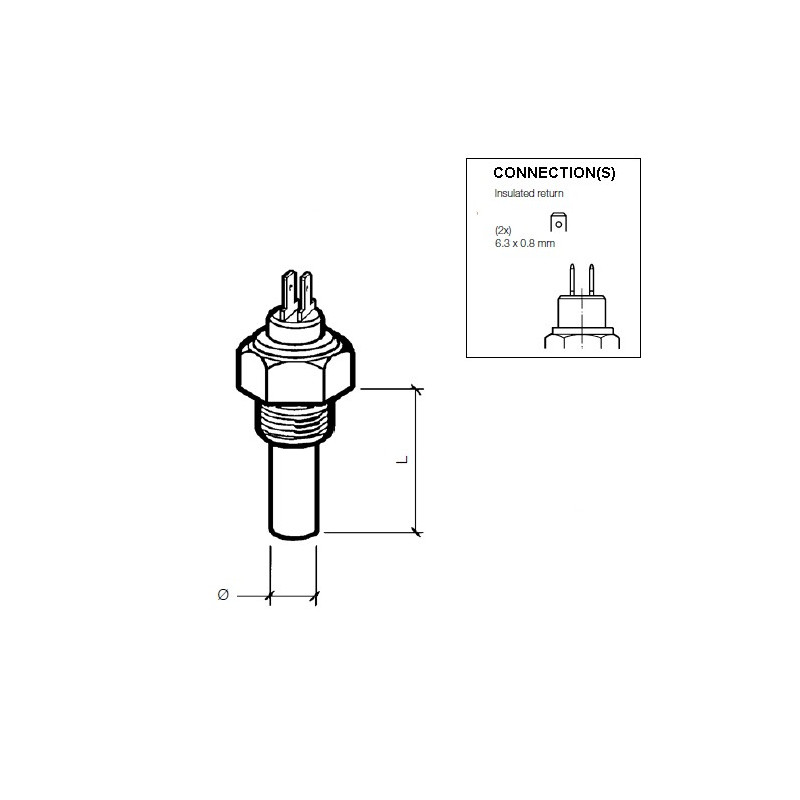

Sensor length + thread (L):29 mm
Sensor diameter:11 mm
Torque:20 Nm
Temperature medium:Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:287.4 - 22.7 Ohm
Temperature sensor output signal:2-pole insulated from ground
Warning contact:None
Warning function:Optional VDO A2C59510886 Makepoint Switch
Temperature sensor connection:Flat plug straight 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 138 - 139
Type of connection:Model: G
VDO En Du Temperature Sensors Tables:VDO table: 1 - (See images)
Temperature 100 °C > Resistance:100 °C = 38.47 Ohm ± 2.98 Ohm
VDO Temperature sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 323 805 001 007N Temperature Sensor
  • On request
323-805-001-007N

Data sheet

Temperature Measurement Range
+40°C to +120°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
287.4 - 22.7 Ohm
Application
VDO Engine control
Signal analog
287.4 - 22.7 Ohm
Sensor signal
Isolated from mass
Sensor connector
Flat plug 6.3 x 0.8 mm
Thread
1/4" - 18 NPTF Male
Functionality
Cooling water temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 805 001 007N
323/805/1/7N

Specific References

MPN
323-805-001-007N
