VDO Cooling Water Sensor 140°C - M14

€68.92 (tax incl.)

€56.96 (VAT Excl.)

Part-number:

VDO 323-805-042-001C

  • Temperature measuring range: +40 °C to +140 °C
  • Thread: M14 x 1.5
  • Resistance value: 533.3 - 24.1 Ohm
  • Output: Isolated from ground
  • No warning contact
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90259000
  • Ean Code: 4103590690142
  • Weight: 0.03kg
Quantity

Technical description cooling system temperature sensor:

VDO 323 805 042 001C Specifications:

Mechanical properties:

Temperature measurement range: +40 °C to +140 °C
Minimum - Maximum Operating Temperature: -40 °C to +140 °C
Thread: M14 x 1.5

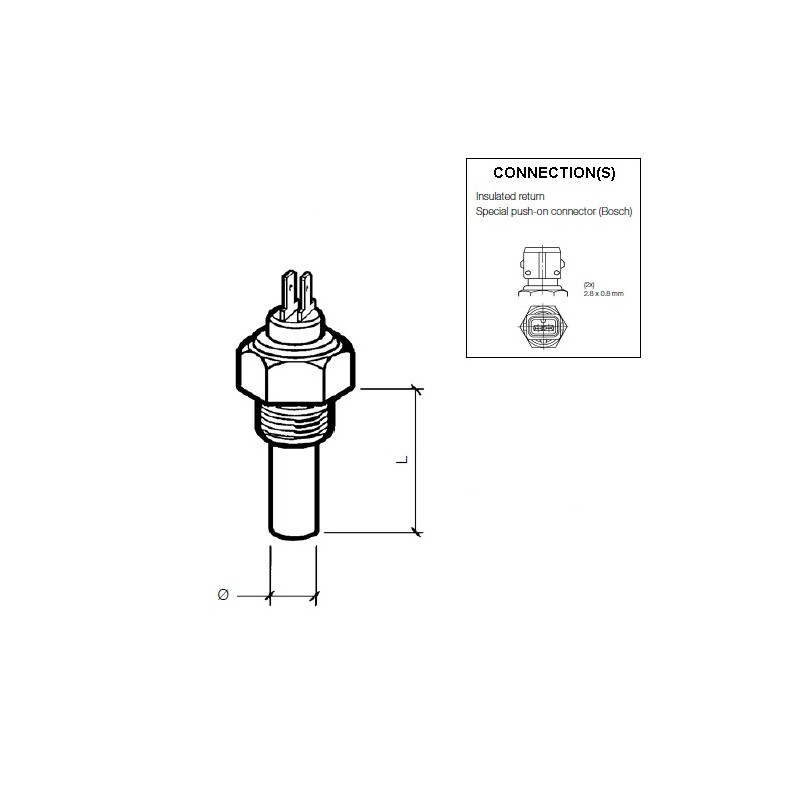

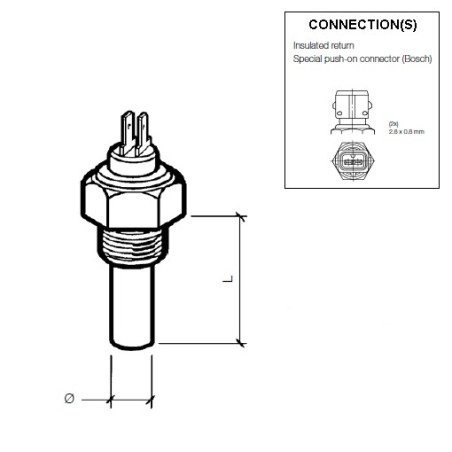

Sensor length + thread (L): 29 mm
Sensor diameter: 8.5 mm
Torque: 20 Nm
Temperature medium: Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 100 °C = 68.75 Ohm
Temperature sensor output signal: 2-pole insulated from ground
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch
Temperature sensor connection: Bosch push-on connector 2.8x0.8mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 138 - 139
Type of connection: Model: H
VDO En Du Temperature Sensors Tables: VDO table: 15 - (See images)
Temperature 100 °C > Resistance: 100 °C = 68.75 Ohm ± 4.13 Ohm
VDO Temperature sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 323 805 042 001C Temperature Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
VDO Continental I
323-805-042-001C

Data sheet

Temperature Measurement Range
+40°C to +140°C
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
533.3 - 24.1 Ohm
Application
VDO Engine control
Signal analog
533.3 - 24.1 Ohm
Sensor signal
Isolated from mass
Sensor connector
Bosch push-on connector 2.8x0.8mm
Thread
M14 x 1.5 Male
Country of origin
Czech Republic
Functionality
Cooling water temperature
Connector type
Bosch push-on connector 2.8x0.8mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 805 042 001C
323/805/42/1C

Specific References

EAN13
4103590690142
MPN
323-805-042-001C
