VDO Oil Temperature Sensor 150°C - 1/2-14 NPTF

Part-number:

VDO 323-803-002-015D

  • Temperature measuring range: +50°C to +150°C
  • Thread: 1/2–14 NPTF
  • Resistance Rating: 322.8 - 18.6 Ohm
  • Output: Min to mass
  • Warning contact: 120 °C ± 3 °C
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90259000
  • Ean Code: 4103590949356
  • Weight: 0.11kg
Discontinued article
Replacement article on request

Technical description engine and transmission oil temperature sensor:

VDO 323 803 014 002D Specifications:

Mechanical properties:

Temperature measurement range: +50 °C to +150 °C
Minimum - Maximum Operating Temperature: -30 °C to +180 °C
Thread: 1/2–14 NPTF
Sensor length + thread (L): 40 mm
Sensor diameter: 10.8 mm
Torque: 30 Nm
Temperature medium: Oil - petroleum - diesel - gasoline - air - water - coolant

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 322.8 - 18.6 Ohm
Temperature sensor output signal: 1-pole min to ground
Warning contact: 120 °C ± 3 °C
Load warning contact 1.2 to 3 Watt induction-free
Warning contact properties Contact closes with rising temperature
Temperature sensor connection: Flat plug straight 6.3 x 0.8 mm
Warning contact connection: Flat plug straight 4.8 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 142 - 143
Type of connection: Model: A

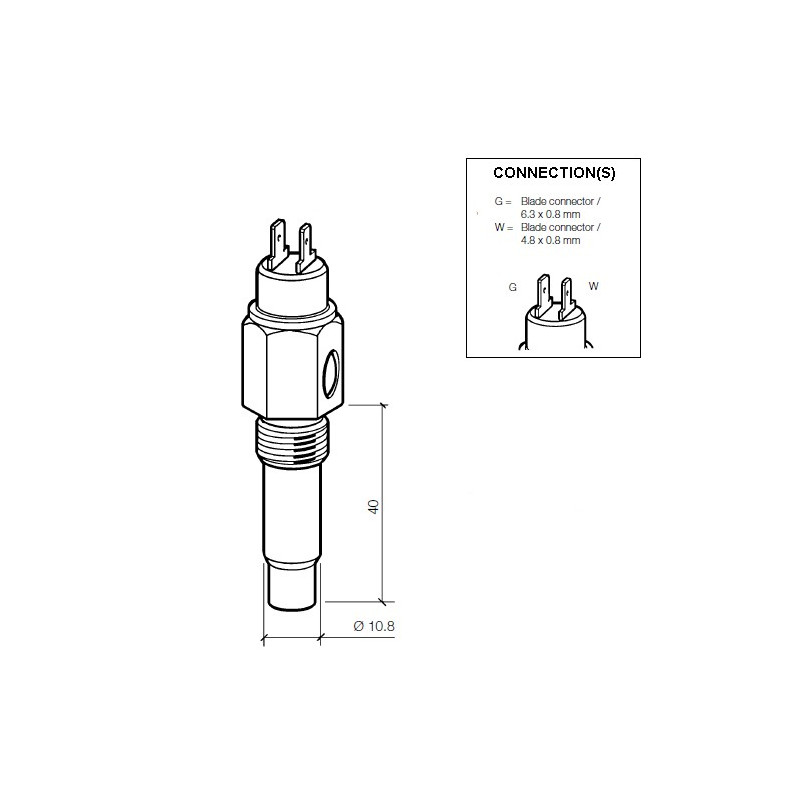

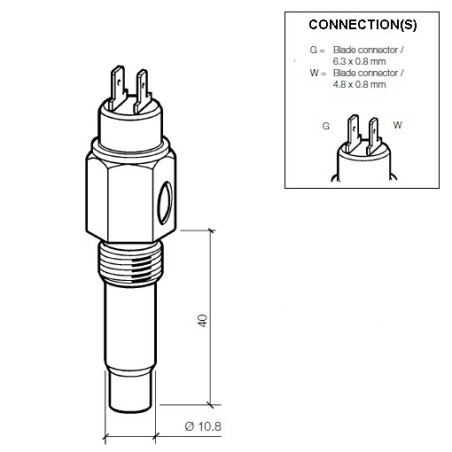

VDO And Du Temperature Sensors Tables: VDO table: 4 - (See images)
Temperature 100 °C > Resistance: 100 °C = 62.43 Ohm ± 4.71 Ohm
VDO Temperature sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 323 803 002 015D Temperature Sensor
  • VDO Sensors are supplied - unless otherwise stated - without connection material
VDO Continental I
323-803-002-015D

Data sheet

Temperature Measurement Range
+50°C to +150°C
Warning contact connector
Flat plug 6.3 x 0.8 mm
Warning contact
120 °C ± 3 °C
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
322.8 - 18.6 Ohm
Sensor signal
Minus in mass
Thread
1/2" - 14 NPTF Male
Country of origin
Czech Republic
Functionality
Oil temperature
Connector type
Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Temperature sensors
Article status
Discontinued product
Alternate format
323 803 002 015P
323/803/2/15D

Specific References

EAN13
4103590949356
MPN
323-803-002-015D
