X10-232-001-009P VDO Temperature Switch 100°C - M18
search
  • X10-232-001-009P VDO Temperature Switch 100°C - M18

VDO Temperature switch 100°C - M18

€71.39 (tax incl.)

€59.00 (VAT Excl.)

Part-number:

VDO X10-232-001-009P

  • Temperature switching point: 100 °C ± 3 °C
  • Thread: M18 x 1.5
  • Contact closes with rising temperature
  • Output: Isolated from ground
  • Switching capacity: 100 Watt
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 85365080
  • Weight: 0.33kg
Quantity

Technical description temperature switch:

VDO X10 232 001 009 Specifications:

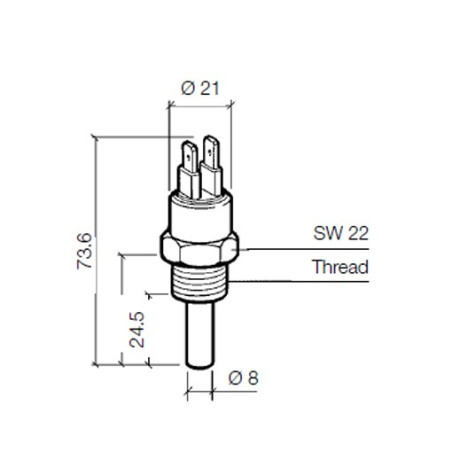

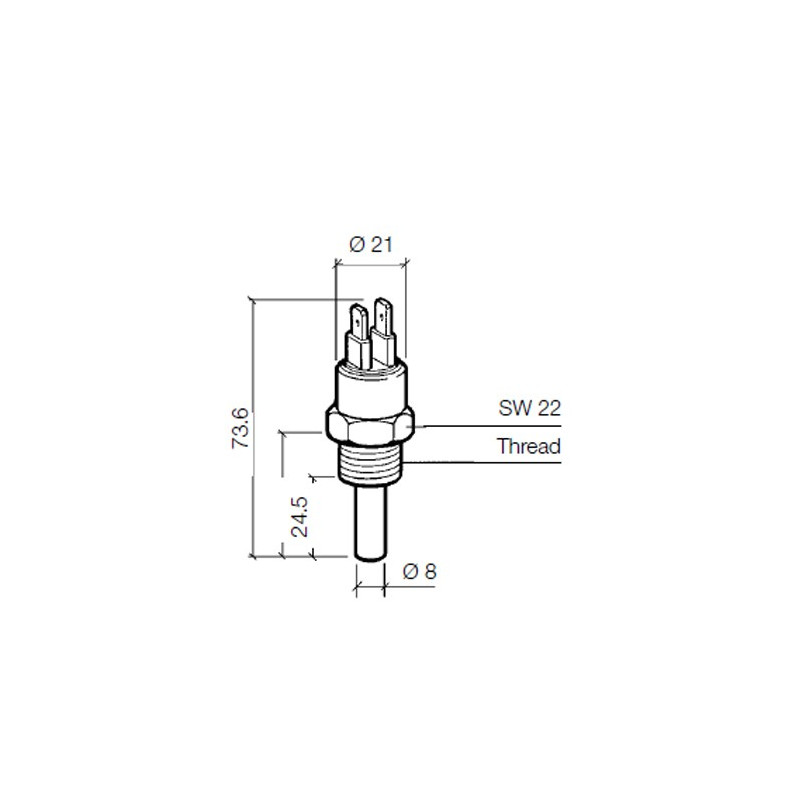

Mechanical properties:

Temperature switching point: 100 °C ± 3 °C
Maximum operating temperature: 110 °C
Thread: M18 x 1.5
Length of sensor element + nut (L): 35.5 mm
Sensor diameter: 8 mm

Electrical properties:

Supply voltage: 6 - 24 V DC
Switch function: Contact closes at temperature > 100 °C
Temperature switch output signal: 2-pole insulated from ground
Contact response: Slow
Switching capacity: Maximum 100 Watts
Temperature switch connection: Flat plug 6.3 x 0.8 mm (2x)

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 151
Type of connection: Model: A
VDO Temperature switches are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO X10 232 001 009 Temperature Switch
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
X10-232-001-009P

Data sheet

Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor OEM bulk packaging
Application
VDO Engine control
Signal analog
Contact closes at limit value
Sensor signal
Isolated from mass
Thread
M18 x 1.5 Male
Switch point
100 °C
Country of origin
Germany
Category
Temperature switches
Article status
Available to order
Alternate format
X10 232 001 009
X10/232/1/9

Specific References

MPN
X10-232-001-009P
