232-011-017-129D VDO Temperature switch 35°C - M14
search
  • 232-011-017-129D VDO Temperature switch 35°C - M14

VDO Temperature Switch 35°C - M14

Part-number:

VDO 232-011-017-129D

  • Temperature switching point: 35 °C ± 3 °C
  • Thread: M14 x 1.5
  • Contact closes with rising temperature
  • Output: Min to mass
  • Switching capacity: 1.2 - 3 Watt
Logistical information:
Limited availability of run-out itemClick here for detailed information.
  • HS Code: 85365080
  • Ean Code: 4103590689283
  • Weight: 0.04kg
Discontinued article
Replacement article on request

Technical description temperature switch:

VDO 232 011 017 129D Specifications:

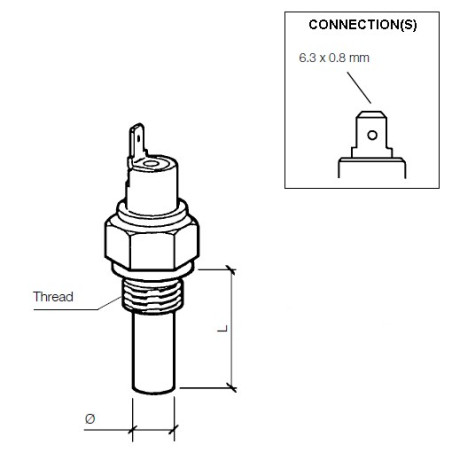

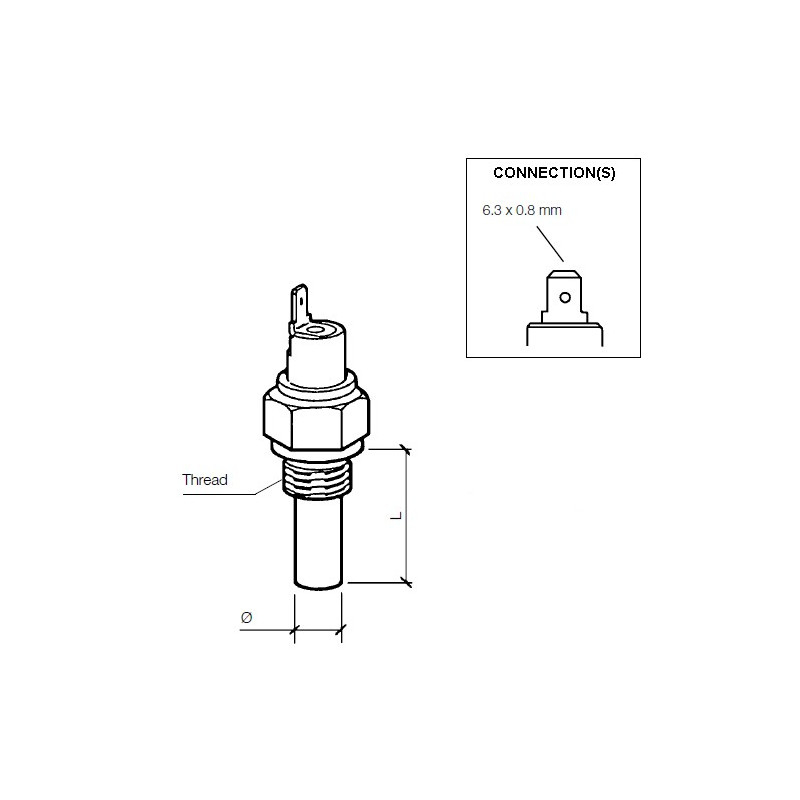

Mechanical properties:

Temperature switching point: 35 °C ± 3 °C
Maximum operating temperature: 120 °C
Thread: M14 x 1.5
Length of sensor element + nut (L): 29 mm
Sensor diameter: 10 mm

Electrical properties:

Supply voltage: 6 - 24 V DC
Switch function: Contact closes at temperature > 35 °C
Temperature switch output signal: 1-pole min to ground
Contact response: Slow
Switching capacity: Maximum 1.2 - 3 Watt non-inductive
Temperature switch connection: Flat plug 6.3 x 0.8 mm

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 148 - 150
Type of connection: Model: A
VDO Temperature switches are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 232 011 017 129D Temperature Switch
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
232-011-017-129D

Data sheet

Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
Contact closes at limit value
Sensor signal
Minus in mass
Thread
M14 x 1.5 Male
Switch point
35 °C
Country of origin
Czech Republic
Category
Temperature switches
Article status
Limited availability of run-out item
Alternate format
232 011 017 129P
232/11/17/129P

Specific References

EAN13
4103590689283
MPN
232-011-017-129D
