VDO Temperature Switch 120°C - 3/4-16 UNF-2A
Part-number:
VDO 232-011-017-143D
- Temperature switching point: 120 °C ± 3 °C
- Thread: 3/4-16 UNF-2A
- Contact closes with rising temperature
- Output: Min to mass
- Switching capacity: 1.2 - 3 Watt
Logistical information:
- HS Code: 85365080
- Weight: 0.50kg
Technical description temperature switch:
VDO 232 011 017 143D Specifications:

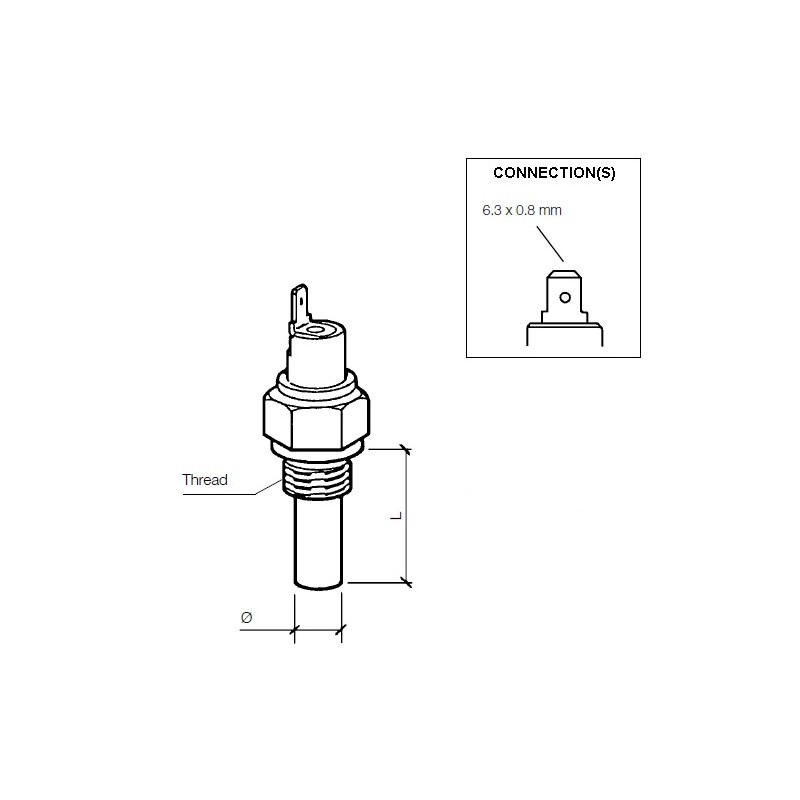

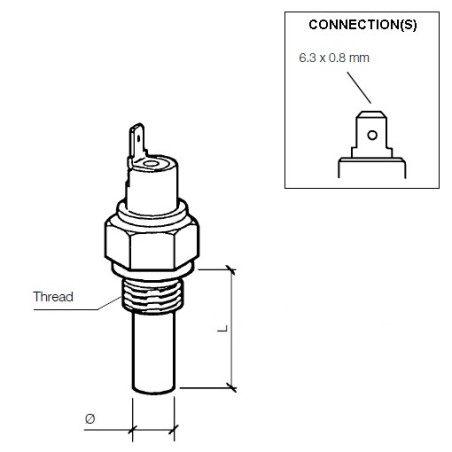

Mechanical properties:
| Temperature switching point: | 120 °C ± 3 °C |
| Maximum operating temperature: | 110 °C |
| Thread: | 3/4-16 UNF-2A |
| Length of sensor element + nut (L): | 27 mm |
| Sensor diameter: | 9.7 mm |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Switch function: | Contact closes at temperature > 120 °C |
| Temperature switch output signal: | 1-pole min to ground |
| Contact response: | Slow |
| Switching capacity: | Maximum 1.2 - 3 Watt non-inductive |
| Temperature switch connection: | Flat plug 6.3 x 0.8 mm |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 148 - 150 |
| Type of connection: | Model: A |
| VDO Temperature switches are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 232 011 017 143D Temperature Switch
- VDO Sensors are - unless otherwise stated - supplied without connection material
232-011-017-143D
Data sheet
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Engine control
- Signal analog
- Contact closes at limit value
- Sensor signal
- Minus in mass
- Thread
- 3/4"-16 UNF-3A Male
- Switch point
- 120 °C
- Category
- Temperature switches
- Article status
- Expired product
- Alternate format
- 232 011 017 143D
232/11/17/143P
Specific References
- MPN
- 232-011-017-143D
VDO 232-011-017-143D
- Temperature switching point: 120 °C ± 3 °C
- Thread: 3/4-16 UNF-2A
- Contact closes with rising temperature
- Output: Min to mass
- Switching capacity: 1.2 - 3 Watt
