VDO Temperature switch 25°C - M14
Part-number:
VDO 232-011-020-006E
- Temperature switching point: 25 °C ± 3 °C
- Thread: M14 x 1.5
- Contact opens when temperature rises
- Output: Min to mass
- Switching capacity: 1.2 - 3 Watt
Logistical information:
- HS Code: 85365080
- Ean Code: 4103590689344
- Weight: 0.04kg
Technical description temperature switch:
VDO 232 011 020 006E specifications:
Mechanical properties:
| Temperature switching point: | 25 °C ± 3 °C |
| Maximum operating temperature: | 120 °C |
| Thread: | M14 x 1.5 |

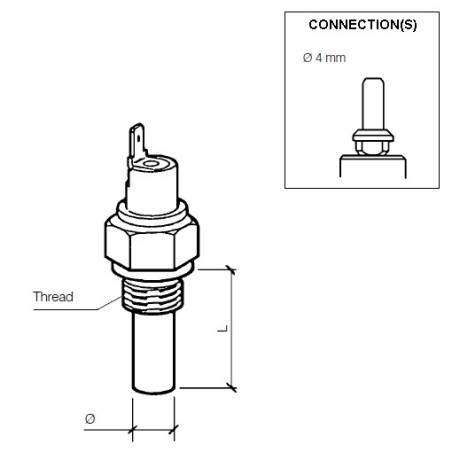

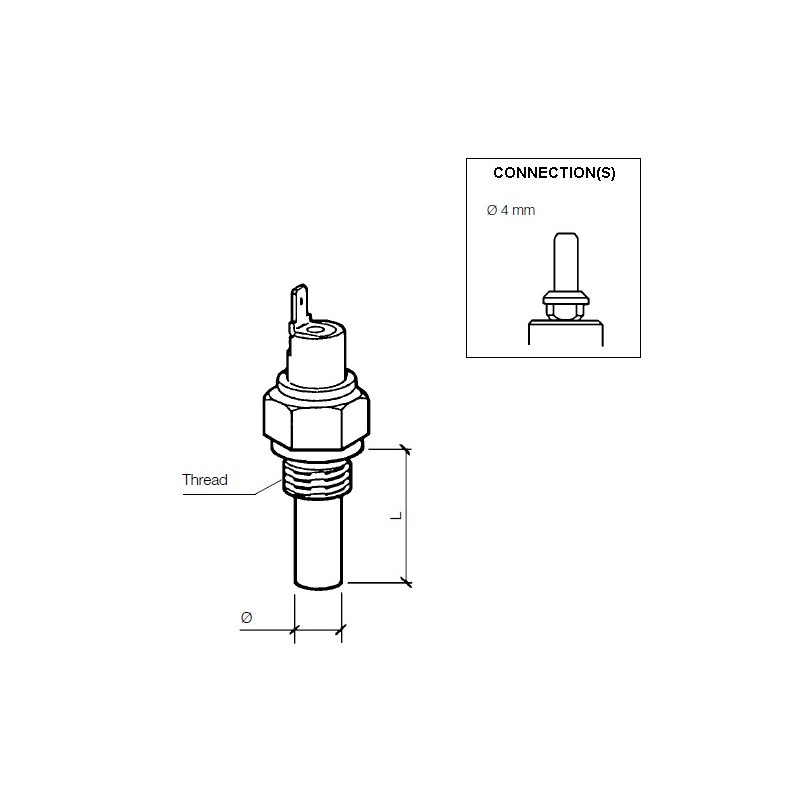

| Length of sensor element + nut (L): | 29 mm |
| Sensor diameter: | 10 mm |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Switch function: | Contact opens at temperature > 25 °C |
| Temperature switch output signal: | 1-pole min to ground |
| Contact response: | Slow |
| Switching capacity: | Maximum 1.2 - 3 Watt non-inductive |
| Temperature switch connection: | Pin connector ø 4 mm |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 148 - 150 |
| Type of connection: | Model: D |
| VDO Temperature switches are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 232 011 020 006E Temperature Switch
- VDO Sensors are - unless otherwise stated - supplied without connection material
232-011-020-006E
Data sheet
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Engine control
- Signal analog
- Contact opens at limit value
- Sensor signal
- Minus in mass
- Thread
- M14 x 1.5 Male
- Switch point
- 25 °C
- Country of origin
- Czech Republic
- Category
- Temperature switches
- Article status
- Expired product
- Alternate format
- 232 011 020 006E
232/11/20/6TH
Specific References
- EAN13
- 4103590689344
- MPN
- 232-011-020-006E
VDO 232-011-020-006E
- Temperature switching point: 25 °C ± 3 °C
- Thread: M14 x 1.5
- Contact opens when temperature rises
- Output: Min to mass
- Switching capacity: 1.2 - 3 Watt
