232-011-005-020D VDO Temperature Switch 105°C - 1/8-27 NPTF
search
  • 232-011-005-020D VDO Temperature Switch 105°C - 1/8-27 NPTF

VDO Temperature Switch 105°C - 1/8-27 NPTF

Part-number:

VDO 232-011-005-020D

  • Temperature switching point: 105 °C ± 3 °C
  • Thread: 1/8-27 NPTF
  • Contact closes with rising temperature
  • Output: Min to mass
  • Replacement product on request
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description temperature switch:

VDO 232 011 005 020D Specifications:

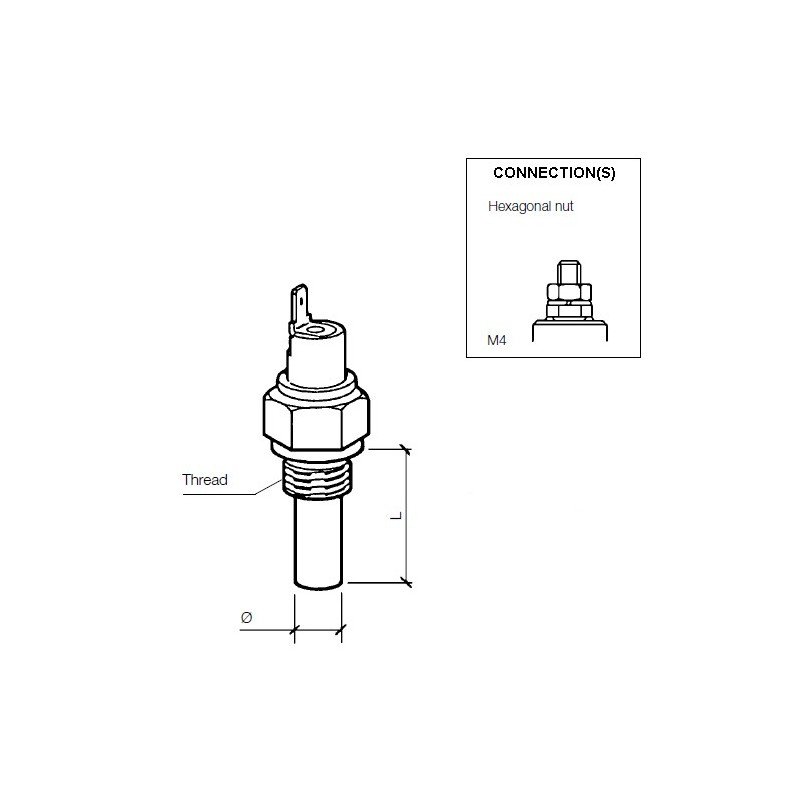

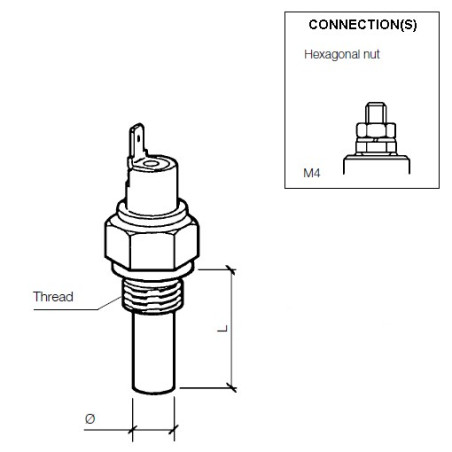

Mechanical properties:

Temperature switching point: 105 °C ± 3 °C
Maximum operating temperature: 120 °C
Thread: 1/8-27 NPTF
Length of sensor element + nut (L): 33 mm
Sensor diameter: 6.9 mm

Electrical properties:

Supply voltage: 6 - 24 V DC
Switch function: Contact closes at temperature > 105 °C
Temperature switch output signal: 1-pole min to ground
Contact response: Slow
Switching capacity: Maximum 1.2 - 3 Watt non-inductive
Temperature switch connection: M4 Hex Nut

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 148 - 150
Type of connection: Model: E
VDO Temperature switches are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 232 011 005 020D Temperature Switch
  • On request
232-011-005-020D

Data sheet

Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Application
VDO Engine control
Signal analog
Contact closes at limit value
Sensor signal
Minus in mass
Thread
1/8" - 27 NPTF Male
Switch point
105 °C
Category
Temperature switches
Article status
Expired product
Alternate format
232 011 005 020D
232/11/5/20D

Specific References

MPN
232-011-005-020D
