VDO Temperature Switch 105°C - M14
Part-number:
VDO 232-011-017-136D
- Temperature switching point: 105 °C ± 3 °C
- Thread: M14 x 1.5
- Contact closes with rising temperature
- Output: Min to mass
- Replacement product on request
Logistical information:
- Weight: 0.50kg
Technical description temperature switch:
VDO 232 011 017 136D specifications:
Mechanical properties:
| Temperature switching point: | 105 °C ± 3 °C |
| Maximum operating temperature: | 150 °C |
| Thread: | M14 x 1.5 |

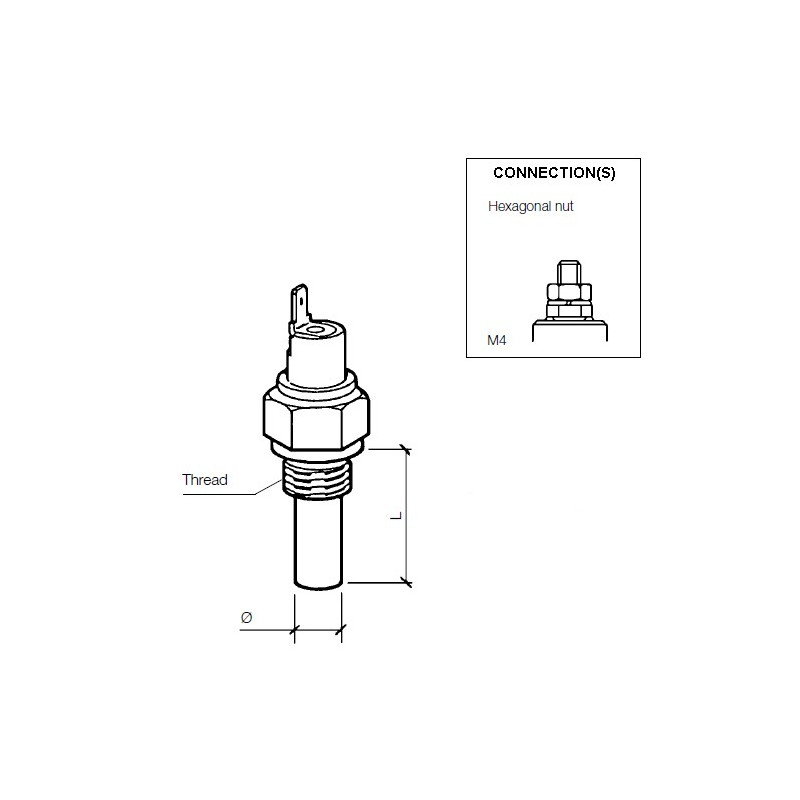

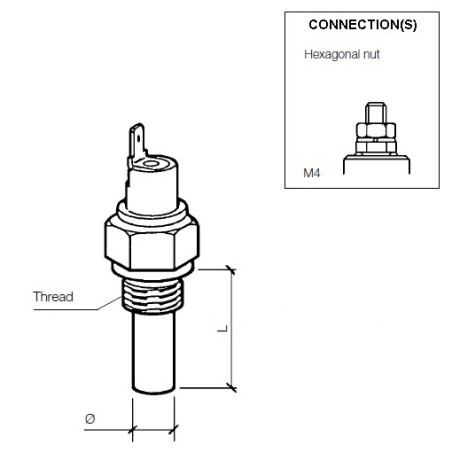

| Length of sensor element + nut (L): | 29 mm |
| Sensor diameter: | 10 mm |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Switch function: | Contact closes at temperature > 105 °C |
| Temperature switch output signal: | 1-pole min to ground |
| Contact response: | Slow |
| Switching capacity: | Maximum 1.2 - 3 Watt non-inductive |
| Temperature switch connection: | M4 Hex Nut |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 148 - 150 |
| Type of connection: | Model: E |
| VDO Temperature switches are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Replacement product for:
- VDO 232 011 017 136D Temperature Switch
- On request
232-011-017-136D
Data sheet
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Engine control
- Signal analog
- Contact closes at limit value
- Sensor signal
- Minus in mass
- Thread
- M14 x 1.5 Male
- Switch point
- 105 °C
- Category
- Temperature switches
- Article status
- Expired product
- Alternate format
- 232 011 017 136D
232/11/17/136P
Specific References
- MPN
- 232-011-017-136D
