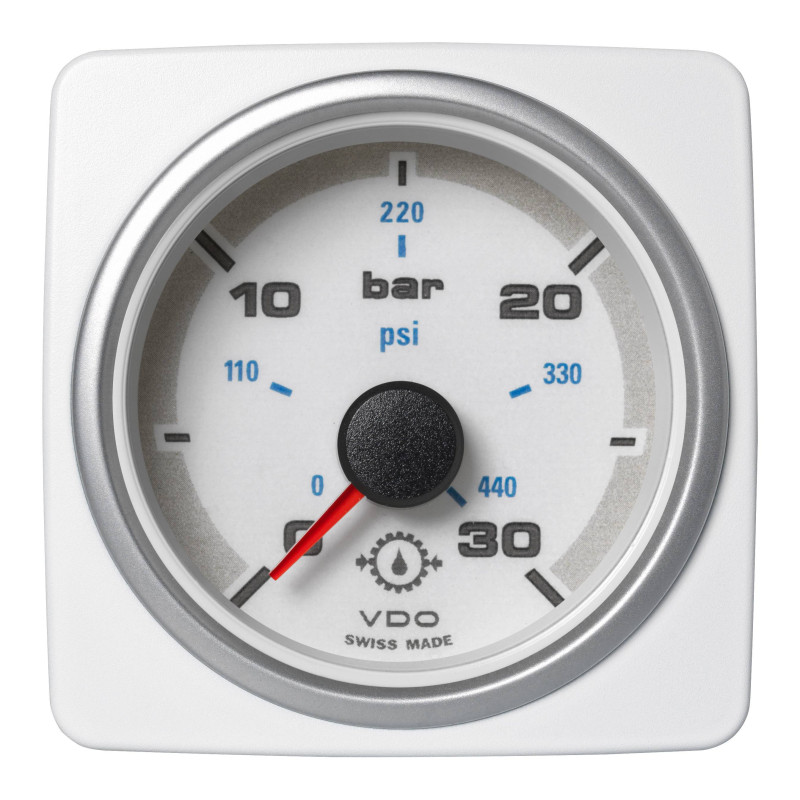

Veratron AcquaLink Transmission oil pressure 30Bar White 52mm
Part-number:
Veratron A2C1338690001
- Color: White - Silver
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: 0 - 30 Bar
- Front: Mineral glass - Anti-fog
- Power Supply: Via Veratron Interface
- Connect to: Veratron EasyLink master
Logistical information:
- HS Code: 90262000
- Ean Code: 7640178720572
- Weight: 0.45kg
A2C1338690001
Data sheet
- Pressure Measurement Range
- 0 - 30 Bar
- Supply voltage
- 12 - 24 V DC Via Easylink II
- Packaging
- 1 Piece Retail Veratron AcquaLink
- Application
- VDO Engine control
- Series
- Veratron AcquaLink
- Meter scale
- Double
- Lens
- Mineral glass - Anti-fog
- Color
- White - Aluminium
- IP Class front
- IP67 (IEC 60529)
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- Transmission oil pressure
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- White Square
- Connector type
- AMP Superseal IP65 3-pole
- Category
- Pressure gauges
- Article status
- Available to order
Specific References
- EAN13
- 7640178720572
- MPN
- A2C1338690001
Veratron A2C1338690001
- Color: White - Silver
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: 0 - 30 Bar
- Front: Mineral glass - Anti-fog
- Power Supply: Via Veratron Interface
- Connect to: Veratron EasyLink master
