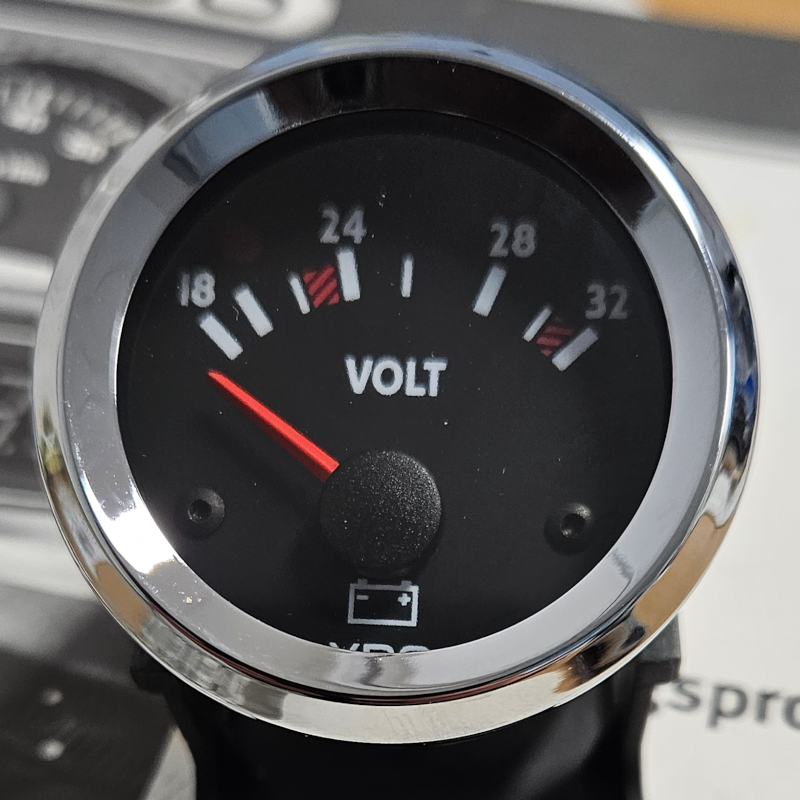

VDO OceanLine - 52mm Black Voltmeter 18-32V
€69.35
(tax incl.)
€57.31 (VAT Excl.)
Part-number:
VDO N02-411-301(302)
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: 18 to 32V DC
- Chrome Edge
- Retail packaging 1 Voltmeter
Logistical information:
- HS Code: 90303900
- Weight: 0.45kg
VDO Black N02 411 301 Specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch |
| Installation depth: | 70 mm |
| Panel thickness with spinlock nut: | 0.5 mm - 20 mm |
| Panel thickness with bracket mounting: | 2 mm - 15 mm (Optional) |
Functional:
| Measuring range Volt: | 18 to 32V DC |
| Voltmeter input signal: | 0-32 V DC Battery voltage |
| Measurement accuracy: | Not known |
Power supply:
| Supply voltage: | 18 to 32 Volts DC |
| Power consumption: | < 140 mA |
| Reverse polarity protection: | No |
| Short-circuit resistance: | No |
Scale & pointer:
| Scale color: | Black |
| Scale lighting: | Amber backlight |
| Pointer: | Red |
Retail packaging:
- VDO Black N02-411-301 Voltmeter
- Front ring chrome triangle
- Spinlock nut
- Rubber gasket
- Safety and Installation Instructions
N02-411-301
Data sheet
- Voltage Measuring Range
- 18 - 32V DC
- Warning indication
- None
- Supply voltage
- 18 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- 0 - 32V DC
- Series
- VDO Marine OceanLine
- Color
- Black
- Input
- Analogue
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- 24 Volt Battery condition
- Front ring model
- Chrome triangle
- Communication
- Analogue
- Category
- Voltmeters
- Article status
- Limited availability of run-out item
Specific References
- MPN
- N02-411-301
