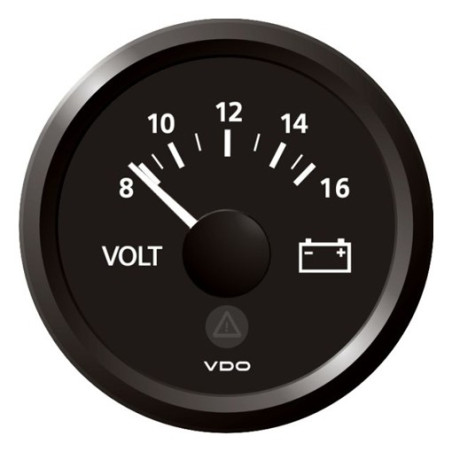

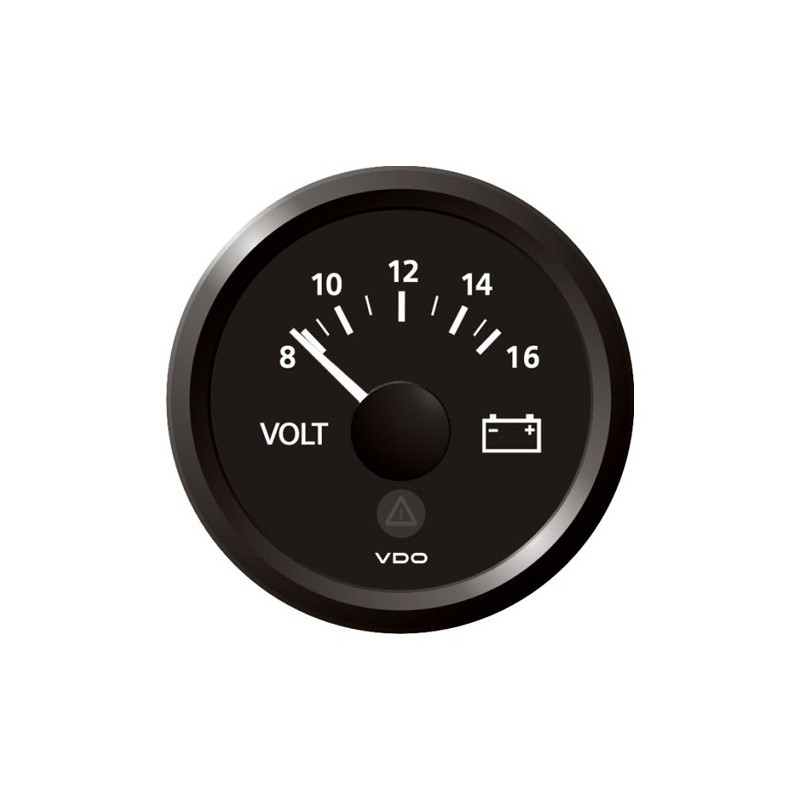

Veratron ViewLine Voltmeter 8-16V Black 52mm
€63.91
(tax incl.)
€52.82 (VAT Excl.)
Part-number:
Veratron A2C59514851
- Color: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: 8 to 16V DC
- Front: Double glazing - Anti-fog
- Retail packaging 1 Voltmeter
Logistical information:
- HS Code: 90303900
- Ean Code: 7640178727830
- Weight: 0.45kg
Functional description ViewLine Voltmeter:
Veratron ViewLine voltmeters are instruments for measuring the battery voltage and for checking the on-board electrical system. The ViewLine series is designed to measure direct current (DC) only. Veratron voltmeters are available in 12 Volt and 24 Volt versions. The Veratron voltmeters are equipped with LED backlight scale and pointer lighting. They have a very clear and easy-to-read white or black scale with red or white pointer for optimal contrast. There are 9 different models of interchangeable front rings in 3 different colors and 3 different profiles. The Veratron ViewLine meters can literally and figuratively take a beating. The front of the instruments is dust and waterproof with protection class IP67. The vibration resistance is 25G. The maximum ambient temperature is 80°C with a plastic front ring and when using a chrome front ring it is 70°C. The ViewLine marine series is equipped with a double anti-fog lens. The standard series has a single lens. Veratron ViewLine instruments are protected against polarity reversal and short circuits. Below you will find the full specifications. If you have any questions about Veratron voltmeters, you can contact us by e-mail. Our technical staff will be happy to advise you on the Veratron programme and of course also on our other products in the field of ship technology.
Veratron ViewLine Black A2C59514851 specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch |
| Installation depth: | 50 mm |
| Panel thickness with spinlock nut: | 0.5 mm - 20 mm |
| Panel thickness with bracket mounting: | 2 mm - 15 mm (Optional) |
| Flushmount mounting: | Optional kit A2C59510864 |
Functional:
| Measuring range Volt: | 8 to 16V DC |
| Voltmeter input signal: | 0-16V DC Battery voltage |
| Measurement accuracy: | < 3.6° of the full scale |
| Connection | Hirschmann 8 pin MQS connector |
Power supply:
| Supply voltage: | 8 to 16 Volts DC |
| Power consumption: | < 140 mA including warning LED |
| Reverse polarity protection: | Yes - 5 minutes |
| Short-circuit resistance: | Yes - 1 minute |
Scale & pointer:
| Graduation: | 90° |
| Scale color: | Black |
| Scale lighting: | Amber LED backlight 605nm |
| Pointer: | White with LED lighting |
| Alarm LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Version:
| Model: | Veratron ViewLine Marine |
| Front glass type: | Double - Anti-fog - Anti-glare |
| Standard front ring: | Triangle black (Interchangeable) |
Degree of protection and certification:
| Front protection class: | IP67 (IEC 60529) |
| Back protection class | IP52 |
| Relative humidity: | Maximum 95% |
| Operating Temperature: | -30°C to +80°C (Plastic front ring) |
| CE Certification: | Yes |
| DNV GL Certification: | Yes |
| Vibration test | 25G - 6ms - 1Hz |
| Shock test: | 100G - 11ms |
| Drop test: | 1 Meter - 3x |
| Fire safety: | UL94-VD |
Retail packaging:
- Veratron ViewLine Black A2C59514851 Voltmeter
- Cable with Hirschmann connector 8-pin
- Front ring triangle black (interchangeable)
- Spinlock nut
- Rubber gasket
- QR code
- Safety and Installation Instructions
A2C59514851
Data sheet
- Voltage Measuring Range
- 08 - 16V DC
- Warning indication
- Red LED Via plus and minus
- Supply voltage
- 8 - 16 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- 0 - 16V DC
- Series
- Veratron ViewLine Retail
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- Analogue
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- 12 Volt Battery condition
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Black triangle
- Communication
- Analogue
- Category
- Voltmeters
- Article status
- Expired product
Specific References
- EAN13
- 7640178727830
- MPN
- A2C59514851
Veratron A2C59514851
- Color: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: 8 to 16V DC
- Front: Double glazing - Anti-fog
- Retail packaging 1 Voltmeter
