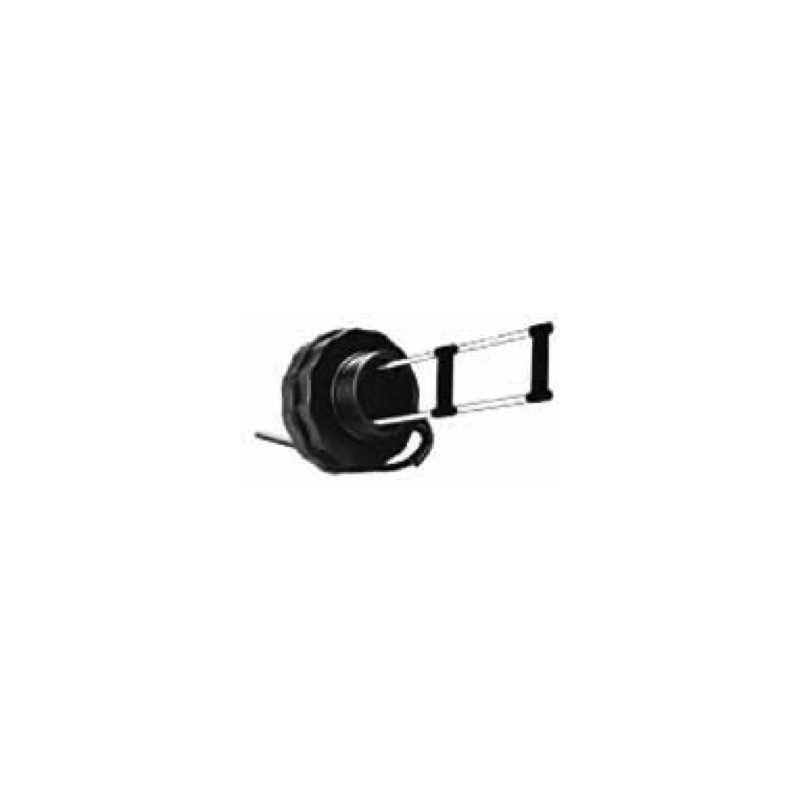

N02-240-904 VDO Water Level Sensor 4-20 mA – 600-1200mm
search
  • N02-240-904 VDO Water Level Sensor 4-20 mA – 600-1200mm
  • N02-240-904 VDO Water Level Sensor 4-20 mA – 600-1200mm
  • N02-240-904 VDO Water Level Sensor 4-20 mA – 600-1200mm

VDO Water Level Sensor 4-20 mA – 600-1200mm

€508.20 (tax incl.)

€420.00 (VAT Excl.)

Part-number:

VDO N02-240-904

  • Water Level sensor - Thread G 1 1/4
  • Tank depth: 600 mm to 1200 mm
  • Measuring System: Capacitive
  • Output signal empty-full: 4 - 20 mA
  • Retail packaging 1 sensor
Logistical information:
Available to orderClick here for detailed information.
  • Ean Code: 7640178725249
  • Weight: 3.00kg
Quantity

Technical description capacitive water level sensor:

VDO N02 240 904 specifications:

Mechanical properties:

Tank depth: 600 mm - 1,200 mm
Outer diameter sensor surface-mounted part: 72.5 mm
Sensor net hole size: 42 mm
Mounting flange: 80 mm
Sensor height above tank: 40 mm
Tank types: Plastic - Stainless Steel - Aluminum
Operating Temperature: -30 °C to +70 °C
Liquids: Shower water - Kitchen drainage - Toilet - Drinking water

Electrical properties:

Supply voltage: 6 - 24 V DC
Output signal: 4 - 20 mA
Sensor signal: Galvanically isolated
Warning contact: Adjustable

Datasheets and tables:

VDO 2014 EN Full Program Catalog: Page 206
Type of connection:

Retail packaging:

  • VDO N02 240 903 Water Level Sensor
  • Sealant N05-016-930
  • VDO Sensors are supplied - unless otherwise stated - without connection material
Veratron VDO
N02-240-904

Data sheet

Measuring range
Dirty water capacitive sensors
Warning contact
Adjustable
Supply voltage
6 - 24 Volt DC
Adjustable sensor
Yes
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
Adjustable: 600mm - 1,200mm
Signal analog
4 - 20 mA
Sensor type
Dirty water capacitive sensors
Sensor signal
Isolated from mass
Thread
G 1-1/4" Male
Installation size
64 mm
Functionality
Wastewater level
Connector type
VDO Model
Communication
Analogue
Category
Water level sensors
Article status
Available to order

Specific References

EAN13
7640178725249
MPN
N02-240-904
