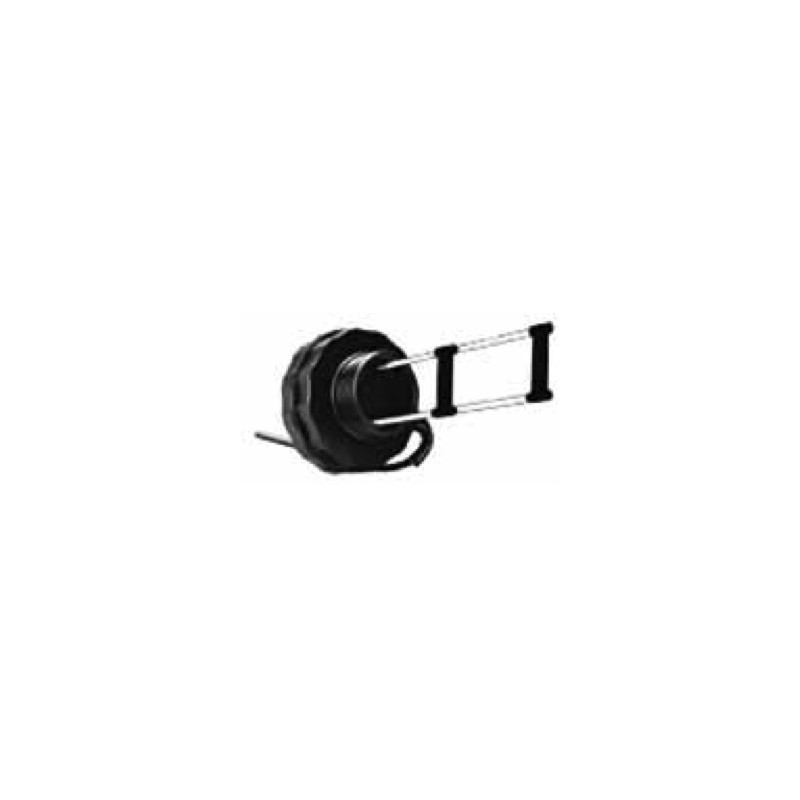

VDO Water Level Sensor 4-20 mA – 1200-1500mm
€716.10
(tax incl.)
€591.82 (VAT Excl.)
Part-number:
VDO N02-240-906
- Water Level Sensor - Thread G 1 1/4
- Tank depth: 1200 mm to 1500 mm
- Measuring System: Capacitive
- Output signal empty-full: 4 - 20 mA
- Retail Packaging 1 Water Level Sensor
Logistical information:
- Ean Code: 7640178725256
- Weight: 1.50kg
Technical Description Capacitive Water Level Sensor:
VDO N02 240 906 specifications:
Mechanical properties:
| Tank depth: | 1,200 mm - 1,500 mm |
| Outer diameter sensor surface-mounted part: | 72.5 mm |
| Sensor net hole size: | 42 mm |
| Mounting flange: | 80 mm |
| Sensor height above tank: | 40 mm |
| Tank types: | Plastic - Stainless Steel - Aluminum |
| Operating Temperature: | -30 °C to +70 °C |
| Liquids: | Shower water - Kitchen drainage - Toilet - Drinking water |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Output signal: | 4 - 20 mA |
| Sensor signal: | Galvanically isolated |
| Warning contact: | Adjustable |
Datasheets and tables:
| VDO 2014 EN Full Program Catalog: | Page 206 |
| Type of connection: |
Retail packaging:
- VDO N02 240 906 Water Level Sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
N02-240-906
Data sheet
- Measuring range
- Dirty water capacitive sensors
- Warning contact
- Adjustable
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- Yes
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- 900 mm to 1,500 mm
- Signal analog
- 4 - 20 mA
- Sensor type
- Dirty water capacitive sensors
- Sensor signal
- Isolated from mass
- Thread
- G 1-1/4" Male
- Installation size
- 64 mm
- Functionality
- Wastewater level
- Connector type
- VDO Model
- Communication
- Analogue
- Category
- Water level sensors
- Article status
- Available to order
Specific References
- EAN13
- 7640178725256
- MPN
- N02-240-906
VDO N02-240-906
- Water Level Sensor - Thread G 1 1/4
- Tank depth: 1200 mm to 1500 mm
- Measuring System: Capacitive
- Output signal empty-full: 4 - 20 mA
- Retail Packaging 1 Water Level Sensor
