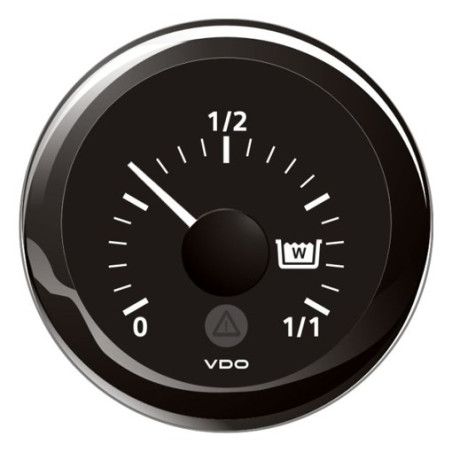

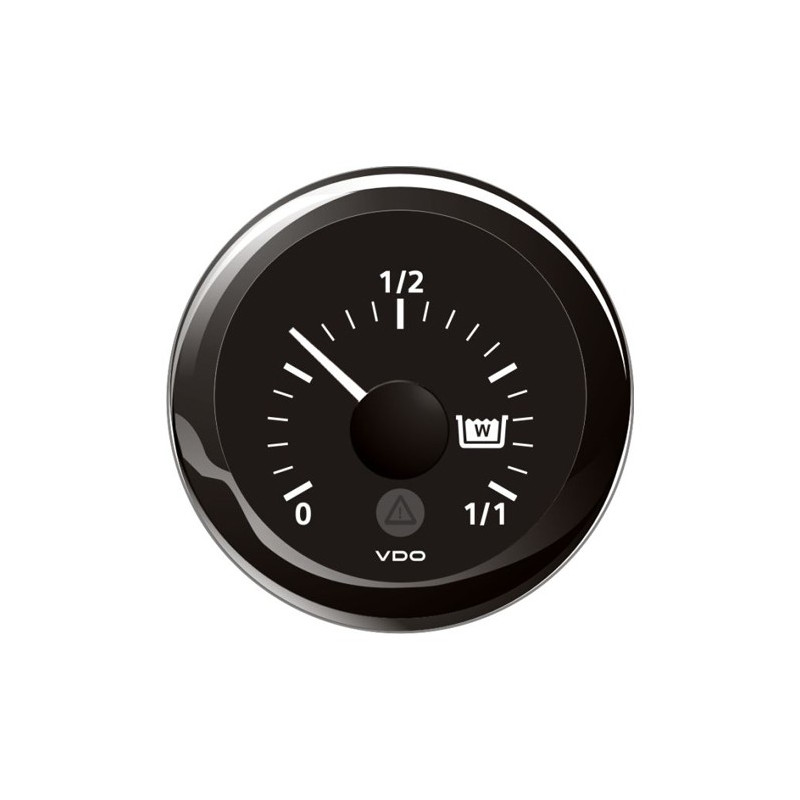

Veratron ViewLine Waste water level 4-20mA Black 52mm

Functional description ViewLine Waste water level meter:

Water tanks are divided into drinking water and holding tanks. The waste water tanks are then subdivided into greywater (from sink and shower) and black water (= greywater + toilet connection). Veratron ViewLine capacitive water tank measuring equipment is suitable for measuring both drinking water, greywater and black water tanks. viewline water tank level gauges have double glazing and an interchangeable front ring. The instruments are suitable for capacitive 4-20mA level sensors in wastewater. These instruments and sets are only suitable for plastic (waste) water tanks. As a float, a level sensor is used in these sets that works according to the capacitive principle without 'floating' or other moving parts. The level sensors are infinitely adjustable to the tank depth (minimum 80 mm and maximum 1500 mm). The 'measuring pins' are pushed through the flange to just above the bottom of the tank. For use in steel/stainless steel/aluminium tanks, a galvanically isolated level sensor is available. The ViewLine holding tank gauges have an integrated red warning LED Available as standard in white or black dial with different models and colors of clippable front rings.

Veratron ViewLine Black A2C59512342 Specifications:

Dimensions and assembly:

Functional:

Power supply:

Scale & pointer:

Version:

Degree of protection and certification:

Retail packaging:

• Veratron ViewLine Black A2C53210834 Waste Water Level Meter
• Cable with Hirschmann connector 8-pin
• Front ring round black (replaceable)
• Spinlock nut
• Rubber gasket
• QR code
• Safety and Installation Instructions
• Delivery excluding Veratron waste water level sensor N02-240-902
