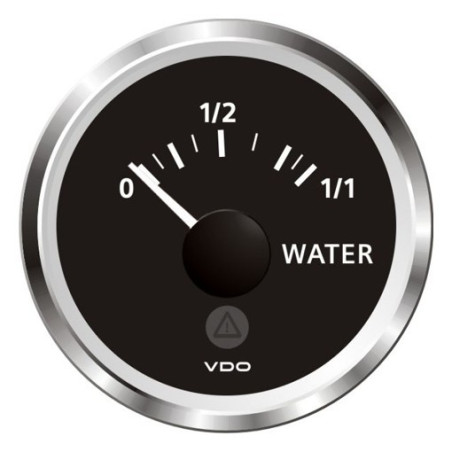

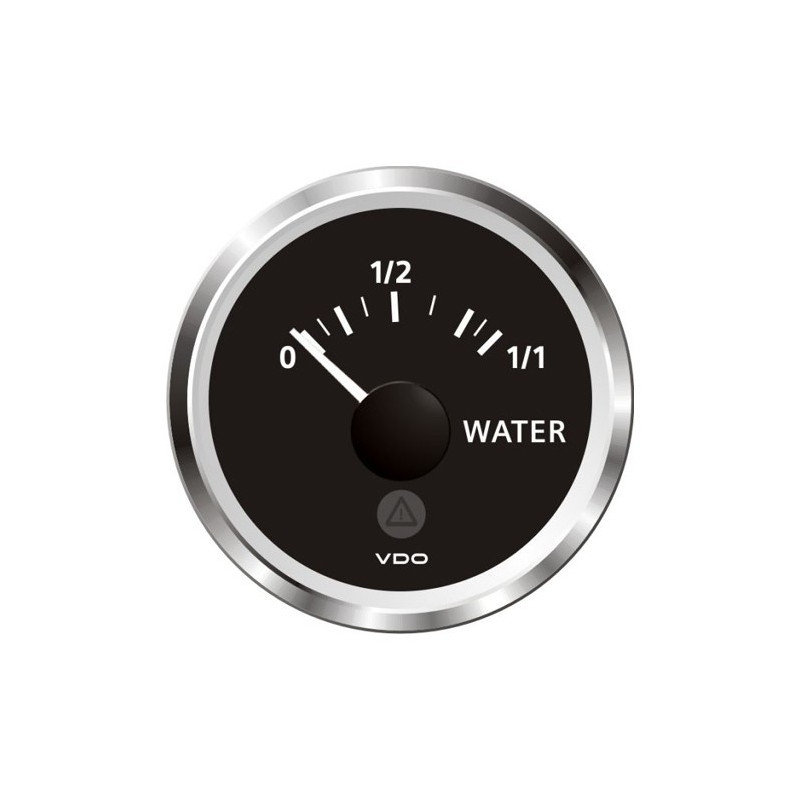

Veratron ViewLine Drinking Water Level 3-180 Ohm Black 52mm

Part-number:

Veratron A2C59514098

  • Color: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Measuring range: 0 - 1/2 - 1/1
  • Front: Double glazing - Anti-fog
  • Retail packaging 1 Drinking water meter
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90262000
  • Ean Code: 7640178727380
  • Weight: 0.45kg
Discontinued article
Replacement article on request

Functional description ViewLine Drinking water level meter:

Veratron ViewLine A2C59514098 specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth: 50 mm
Panel thickness with spinlock nut: 0.5mm - 20mm
Panel thickness with bracket mounting: 2mm - 15mm (Optional)
Flushmount mounting: Optional kit A2C59510864

Functional:

Drinking water level measurement range: 0 - 1/2 - 1/1
Drinking water level input signal: Veratron Siphon Sensor 3 - 180 Ohm
Measurement accuracy: < 3.6° of the full scale
Connection Hirschmann 8 pin MQS connector

Power supply:

Supply voltage: 8 - 32 V DC
Power consumption: < 140 mA including warning LED
Reverse polarity protection: Yes - 5 minutes
Short-circuit resistance: Yes - 1 minute

Scale & pointer:

Graduation: 90°
Scale color: Black
Scale lighting: Amber LED backlight 605nm
Pointer: White with LED lighting
Alarm LED: Red (632nm)
Programming: Veratron USB software kit

Version:

Model: Veratron ViewLine Marine
Front glass type: Double - Anti-fog - Anti-glare
Standard front ring: Triangle chrome (Interchangeable)

Degree of protection and certification:

Front protection class: IP67 (IEC 60529)
Back protection class IP52
Relative humidity: Maximum 95%
Operating Temperature: -30°C to +70°C (Front ring chrome)
CE Certification: Yes
DNV GL Certification: Yes
Vibration test 25G - 6ms - 1Hz
Shock test: 100G - 11ms
Drop test: 1 Meter - 3x
Fire safety: UL94-VD

Retail packaging:

  • Veratron ViewLine Black A2C59514098 Drinking water level meter
  • Cable with Hirschmann connector 8-pin
  • Front ring triangular chrome (interchangeable)
  • Spinlock nut
  • Rubber gasket
  • QR code
  • Safety and Installation Instructions
  • Delivery excluding Veratron drinking water siphon level sensor
Veratron VDO
A2C59514098

Data sheet

Level Measurement Range
0 - 1/2 - 1/1
Warning indication
Red LED Via plus and minus
Supply voltage
8 - 32 Volt DC
Packaging
VDO Instrument retail
Application
VDO Level measurement
Signal analog
Empty - Full : 3 - 180 Ohm
Series
Veratron ViewLine Retail
Lens
Plastic double anti-fog
Color
Black
IP Class front
IP67 (IEC 60529)
Input
Analogue
Installation size
52 mm - 2 1/16 Inch
Functionality
Level meters drinking water
Front ring interchangeable
Yes - Clip-on
Front ring model
Chrome triangle
Communication
Analogue
Category
Water level meters
Article status
Expired product

Specific References

EAN13
7640178727380
MPN
A2C59514098
