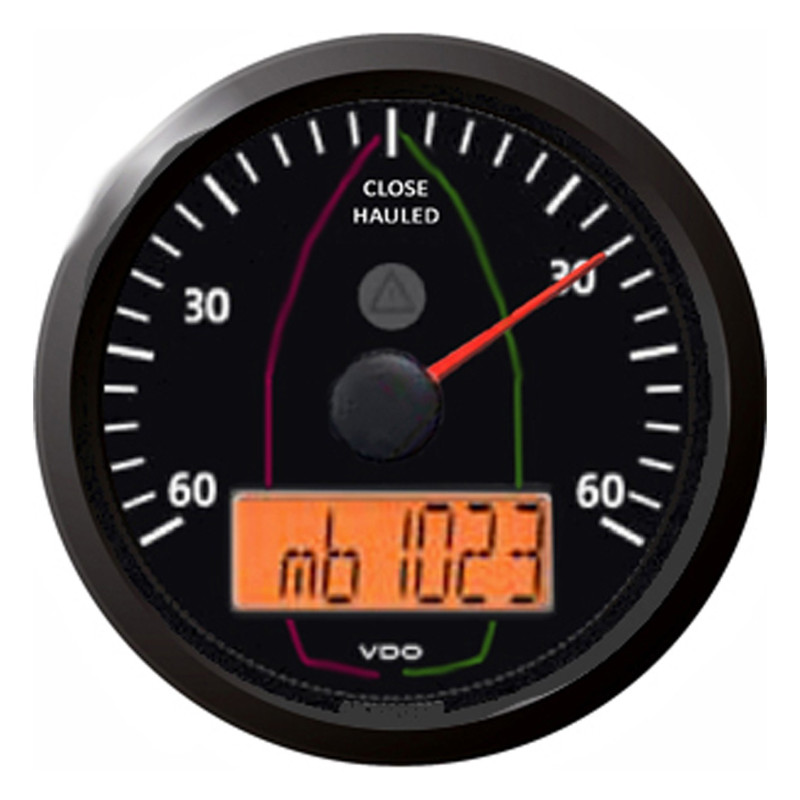

Veratron ViewLine Wind Meter Close Haul 60° Black 85mm
€286.82
(tax incl.)
€237.04 (VAT Excl.)
Part-number:
Veratron A2C59514246
- Color: Black
- Panel hole diameter: 85 mm - 3 3/8"
- Measuring range: Close haul -60° to +60°
- Front: Double glazing - Anti-fog
- Retail packaging 1 Wind meter close haul
Logistical information:
- HS Code: 90148000
- Weight: 0.50kg
Functional description ViewLine Wind meter close haul:
Veratron ViewLine A2C59514246 Specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 85 mm - 3 3/8 Inch and 93 mm 3 2/3 Inch |
| Installation depth: | 50 mm |
| Panel thickness with spinlock nut: | 0.5mm - 20mm |
| Panel thickness with bracket mounting: | 2mm - 15mm (Optional) |
| Flushmount mounting: | Optional kit A2C59510864 |
Functional:
| Analogue close haul measuring range: | -60° to +60° |
| Display functions (Sensor dependent): | Apparent wind Maximum Wind Speed Air temperature Air pressure Clock Voltmeter |
| Anemometer close haul input signal: | NMEA 0183 Dataset VWR - MWV - WIMDA |
| Suitable sensors: | Airmar WeatherStation® PB-100 Airmar WeatherStation® PB-150 (with GPS) Airmar WeatherStation® PB-200 (with GPS & compass) |
| Measurement accuracy: | < 2.5 % of the full scale |
| Connection: | Hirschmann 8 & 14 pin MQS connector |
Power supply:
| Supply voltage: | 8.5 to 32 V DC |
| Power consumption: | < 150 mA including warning LED |
| Reverse polarity protection: | Yes - 5 minutes |
| Short-circuit resistance: | Yes - 1 minute |
Scale & pointer:
| Graduation: | 120° |
| Scale color: | Black |
| Scale lighting: | Amber LED backlight 605nm |
| Pointer: | White with LED lighting |
| Alarm LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Version:
| Model: | Veratron ViewLine Marine |
| Front glass type: | Double - Anti-fog - Anti-glare |
| Standard front ring: | Round Black (Interchangeable) |
Degree of protection and certification:
| Front protection class: | IP67 (IEC 60529) |
| Back protection class | IP52 |
| Relative humidity: | Maximum 95% |
| Operating Temperature: | -30°C to +80°C (Plastic front ring) |
| CE Certification: | Yes |
| DNV GL Certification: | Yes |
| Vibration test | 25G - 6ms - 1Hz |
| Shock test: | 100G - 11ms |
| Drop test: | 1 Meter - 3x |
| Fire safety: | UL94-VD |
Retail packaging:
- Veratron ViewLine Black A2C59514246 Wind Gauge Close Haul
- Cables with Hirschmann connector 8 & 14-pin
- Front ring round black (Interchangeable)
- Spinlock nut
- Rubber gasket
- QR code
- Safety and Installation Instructions
- Delivery excluding Veratron Airmar WeatherStation® PB-100 - PB-150 - PB-200 Sensor
A2C59514246
Data sheet
- Measuring range
- -60° to +60°
- Warning indication
- Red LED Via plus and minus
- Supply voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Navigation
- Series
- Veratron ViewLine Retail
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- NMEA-0183
- Installation size
- 85 mm - 3 3/8 Inch
- Functionality
- Windhoek magnified
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Black round
- Communication
- NMEA 0183
- Category
- Navigation instruments
- Article status
- Available to order
