VDO Ø54mm Fuel Tube Float 370mm
€93.93
(tax incl.)
€77.63 (VAT Excl.)
Part-number:
VDO 224-011-000-370G
- Fuel tubular sensor metal
- Dip pipe length: 370 mm
- 5-Hole SAE Flange 54 mm
- Resistance empty-full: 71.0 - 2.5 Ohm
- Retail package 1 Tubular sensor 370mm
Logistical information:
- HS Code: 90269000
- Ean Code: 4103590688149
- Weight: 0.47kg
Description Ø54mm Tubular fuel sensor:
VDO 224 011 000 370G Full technical specifications:

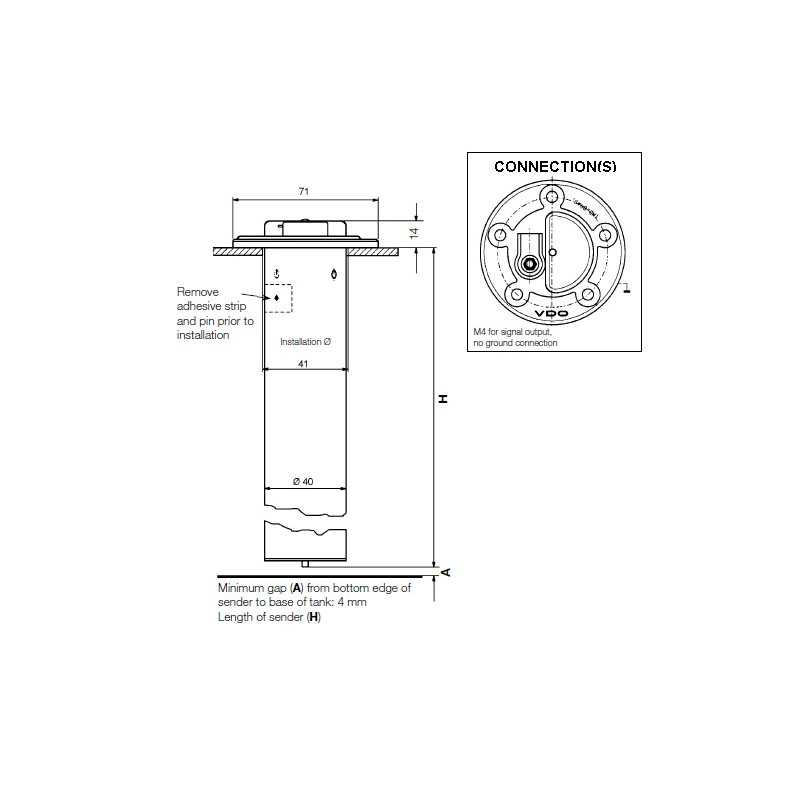

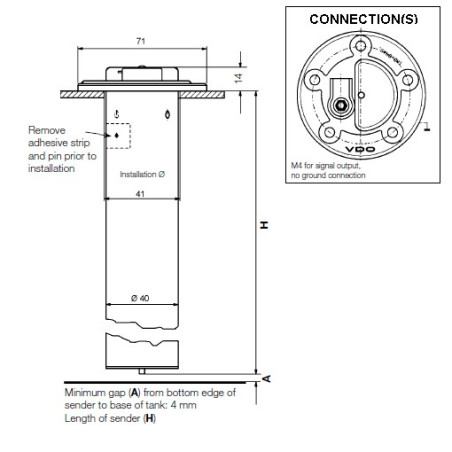

Mechanical features:
| Tube length: | 370 mm ± 2.0 mm |
| Minimum tank depth: | 370mm ± 2.0mm + 4.0mm |
| Support spring: | None |
| Mounting flange: | 5-Hole SAE 54 mm |
| Operating temperature: | -25 °C to +65 °C |
| Fuel: | Oil - petroleum - diesel - gasoline |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistance empty: | 71.0 Ohm ± 2.5 Ohm |
| Resistance full: | 2.5 Ohms ± 1.5 Ohms |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
Datasheets and Tables:
| VDO 2010 EN Tubular Standard 54mm: | Page 1 - 5 |
Retail package:
- VDO 224 011 000 370G Standard 54 mm metal tubular fuel level sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
224-011-000-370G
Data sheet
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- No
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- 350 mm to 400 mm
- Signal analog
- Empty - Full : 60-90 - 0.5 Ohm
- Sensor type
- Tube Sensors 54mm Aluminum
- Sensor signal
- Minus in mass
- Country of origin
- Brazil
- Installation size
- 54mm SAE 5-Hole Flange
- Connector type
- M4 Hex Nut
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Expired product
- Successor
- A2C1750310001
Specific References
- EAN13
- 4103590688149
- MPN
- 224-011-000-370G
