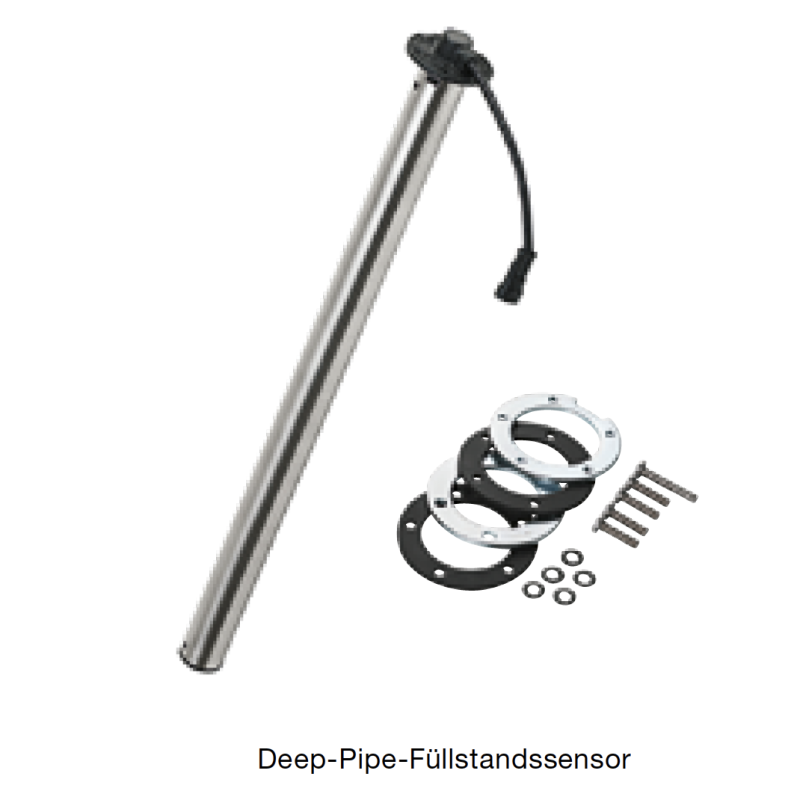

A2C1750860001 Veratron Ø54mm Stainless Steel 316 Pipe Float Contactless 1,200 mm - Empty-Full 90-4 Ohm
search
  • A2C1750860001 Veratron Ø54mm Stainless Steel 316 Pipe Float Contactless 1,200 mm - Empty-Full 90-4 Ohm

Veratron Ø54mm SS 316 Tubular Sensor Non-Contact 1,200mm - Empty-Full 90-4ohm

€189.97 (tax incl.)

€157.00 (VAT Excl.)

Part-number:

Veratron A2C1750860001

  • Tubular sensor stainless steel
  • Tube length: 1.200mm - Ø38mm
  • 5-hole SAE Flange 54 mm PA66 GF30
  • Resistance empty-full: 90-4 Ohm
  • Suitable for water and fuel
  • Package 1 Tubular sensor L = 1200mm
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90261000
  • Ean Code: 7640178726772
  • Weight: 1.63kg
Quantity

Description Ø54mm Tubular fuel sensor:

Veratron A2C1750860001 Full technical specifications:

Mechanical features:

Tube length: 1,200 mm ± 2.0 mm
Minimum tank depth: 1,200 mm ± 2.0 mm + 4.0 mm
Support spring: None
Mounting flange: 5-Hole SAE 54 mm
Operating temperature: -25 °C to +65 °C
Fuel: Oil - petroleum - diesel - gasoline

Electrical features:

Operating voltage: 6 - 24 V DC
Resistance empty: 81.6 Ohms ± 2.5 Ohms
Resistance full: 2.0 Ohms ± 1.5 Ohms
Warning contact: None
Optional warning contact: Veratron A2C59510886 Makepoint Switch

Retail package:

  • Veratron A2C1750860001 Standard 54 mm metal tubular fuel level sender
  • Veratron Sensors are - unless otherwise noted - delivered without connecting material
Veratron VDO
A2C1750860001

Data sheet

Warning contact
None
Supply voltage
6 - 24 Volt DC
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
900 mm to 1,500 mm
Signal analog
Empty - Full : 90 - 4 Ohm
Sensor type
Tube sensors 54mm stainless steel
Sensor signal
Isolated from mass
Installation size
54mm SAE 5-Hole Flange
Connector type
TE Superseal 2-pole IP67
Communication
Analogue
Category
Fuel level sensors
Article status
Available to order

Specific References

EAN13
7640178726772
MPN
A2C1750860001
