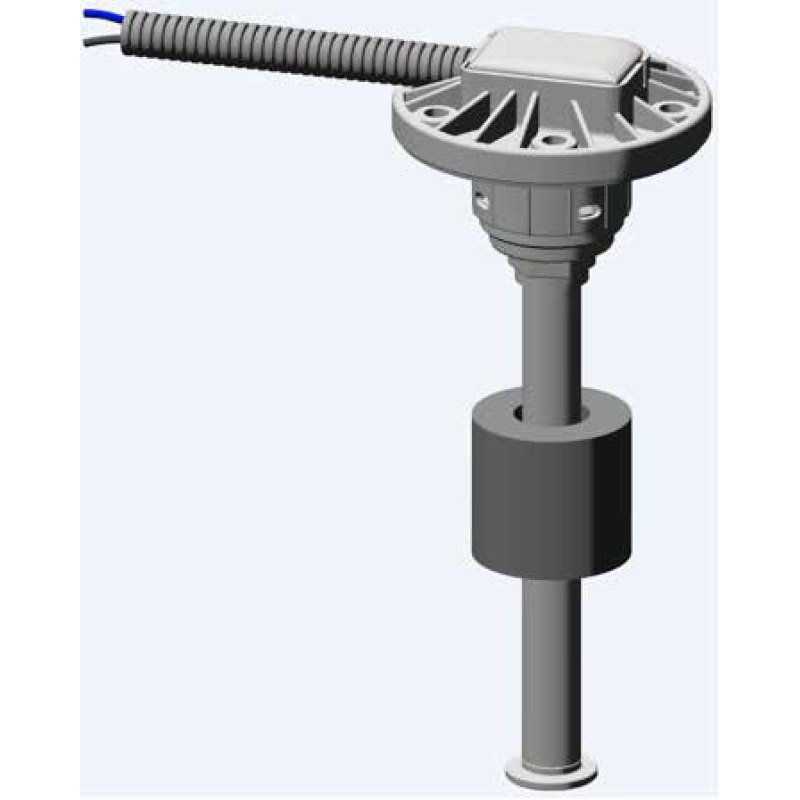

Continental VDO Ø54mm Stainless Steel 316 Pipe Float Contactless 750 mm - Empty-Full 90-1 Ohm

€151.27 (tax incl.)

€125.02 (VAT Excl.)

Part-number:

2910002234900

  • Tubular Reed switch sensor plastic / stainless steel
  • Tube length: 750mm - Ø 40mm
  • 5-hole SAE Flange 54mm PA66 GF30
  • Resistance empty-full: 91-1 Ohm
  • Suitable for water and fuel
  • Package 1 Tubular sensor L = 750mm
Logistical information:
Available to orderClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590696571
  • Weight: 0.67kg
Quantity

Description Ø54mm Tubular Reed switch fuel sensor:

VDO 2910002234900 specifications:

Mechanical features:

Tube length: 750 mm ± 2.0 mm
Minimum tank depth: 750mm ± 2.0mm + 4.0mm
Support spring: None
Mounting flange: 5-Hole SAE 54 mm
Operating temperature: -40 °C to +85 °C
Liquid: Oil - Petroleum - Diesel - Gasoline - Water
Fuel ressistance: Diesel acc. to DIN EN 590 (2014-04)
Diesel acc. to DIN EN 14214-FAME (2014-06)
Gasoline acc. to DIN EN 228 (2014-10)

Electrical features:

Operating voltage: 6 - 48 V DC
Resistance empty: 91.0 Ohm ± 1.0 Ohm
Resistance full: 1.0 Ohms ± 1.0 Ohms
Warning contact: None
Optional warning contact: None
Sensor signal: Isolated ground

Datasheets and Tables:

VDO SAI-08-19 DataSheet Reed Contact Level Sensors: Page 1 - 2

Retail package:

  • VDO 2910002234900 Standard 54 mm tubular Reed switch liquid level sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
2910002234900

Data sheet

Warning contact
None
Predecessor
224-011-000-750G
Supply voltage
6 - 48 Volts
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
700 mm to 800 mm
Signal analog
Empty - Full : 90 - 1 Ohm
Sensor type
Tube sensors 54mm stainless steel
Sensor signal
Isolated from mass
Country of origin
Turkey*
Installation size
54mm SAE 5-Hole Flange
Connector type
None
Communication
Analogue
Category
Fuel level sensors
Article status
Available to order

Specific References

EAN13
4103590696571
MPN
2910002234900
