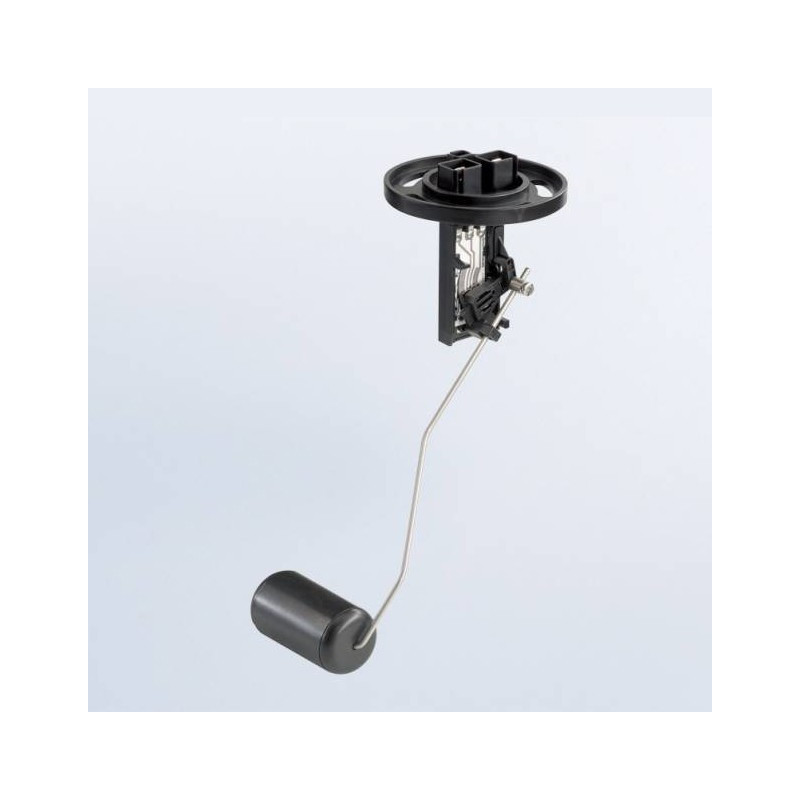

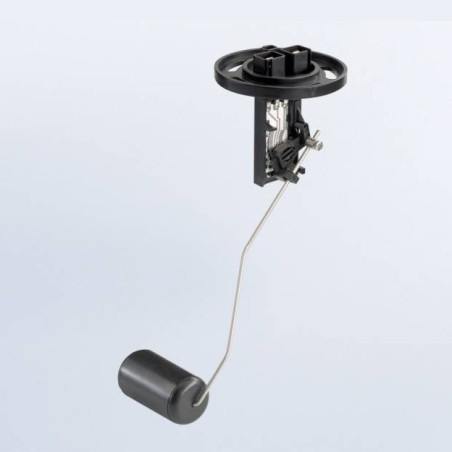

10 Pieces VDO ALAS1 Fuel Siphon Float 2-90 Ohm
Part-number:
VDO A2C59510170
- ALAS1 Fuel siphon float sensor
- Tank depth: 145 - 400 mm (Adjustable)
- 5-Hole SAE Flange 54 mm
- Resistance empty-full: 2.0 - 90.0 Ohm
- OEM bulk packing 10 siphon float level sensors
Logistical information:
- HS Code: 90261089
- Ean Code: 4103590692498
- Weight: 0.25kg
Technical description ALAS1 Fuel Siphon Float:
VDO A2C 595 101 70 Specifications:
Mechanical properties:
| Tank depth: | 145 mm - 400 mm |
| Mounting flange: | 5-Hole SAE 54 mm |
| Operating Temperature: | -40 °C to +70 °C |
| Fuel: | Oil - petroleum - diesel - petrol |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value empty: | 2 Ohms |
| Resistance value full: | 90 Ohm |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
Datasheets and tables:
| VDO 2012 EN-DE Lever arm sender: | Page 8 |
OEM Packing:
- 10 Pieces VDO A2C53170769 Fuel siphon float level sensor
- VDO Sensors are - unless otherwise stated - supplied without connection material
A2C59510170
Data sheet
- Measuring range
- 2 - 90 Ohm
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- Yes
- Packaging
- VDO Sensor OEM bulk packaging
- Application
- VDO Level measurement
- Tank depth range
- 145 mm to 400 mm
- Signal analog
- Empty - Full : 2 - 90 Ohm
- Sensor type
- Fuel siphon sensors ALAS1
- Sensor signal
- Isolated from mass
- Country of origin
- Malaysia
- Installation size
- 54mm SAE 5-Hole Flange
- Functionality
- Fuel level and pump
- Connector type
- Flat plug 6.3 x 0.8 mm
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Expired product
Specific References
- EAN13
- 4103590692498
- MPN
- A2C59510170
