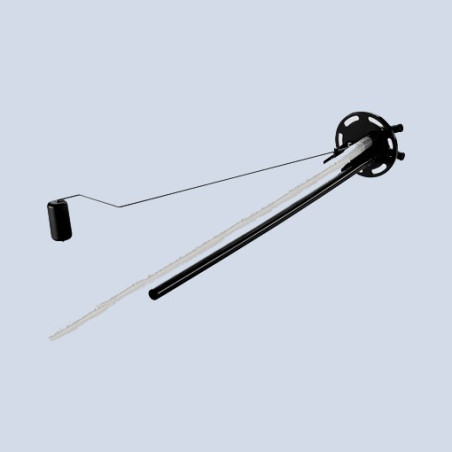

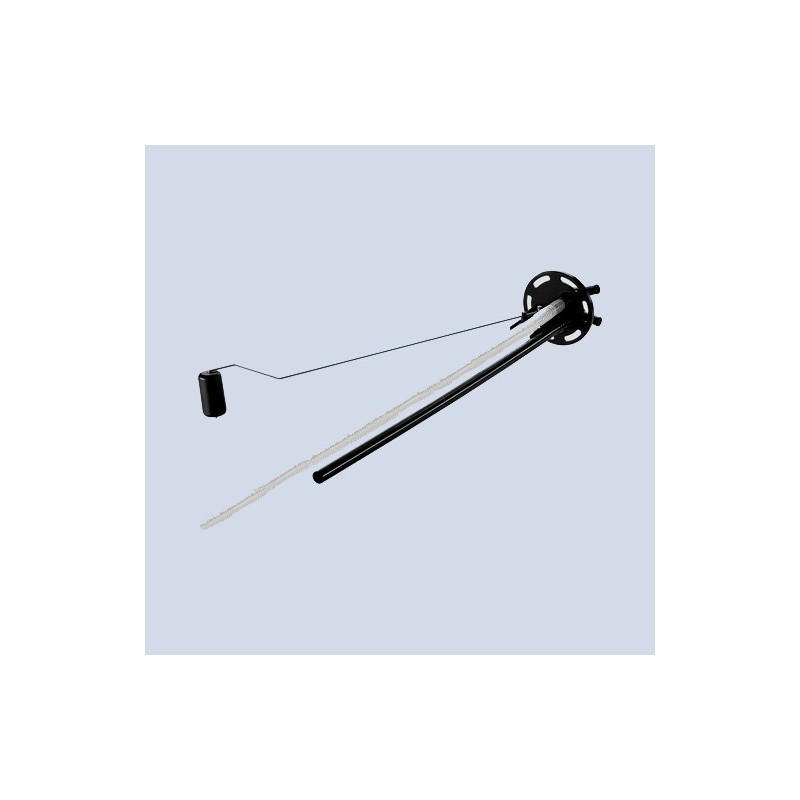

10 Pieces VDO ALAS2 WC Fuel Siphon Float 240-33 Ohm
Part-number:
VDO A2C59510973
- ALAS2 Siphon Float + Warning Contact
- Tank depth: 140 - 400 mm (Adjustable)
- 6-Hole Flange 80 mm
- Resistance empty-full: 240.0 - 33.5 Ohm
- OEM bulk pack 10 Siphon float sensors
Logistical information:
- HS Code: 90269000
- Weight: 0.50kg
Technical description ALAS2 Fuel Siphon Float:
VDO A2C 595 109 73 specifications:
Mechanical properties:
| Tank depth: | 145 mm - 400 mm |
| Mounting flange: | 6-Hole 80 mm |
| Operating Temperature: | -40 °C to +70 °C |
| Fuel: | Oil - petroleum - diesel - petrol |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value empty: | 240 Ohms |
| Resistance value full: | 33.5 Ohms |
| Warning contact: | Yes |
Datasheets and tables:
| VDO 2012 EN-DE Lever arm sender: | Page 11 |
Retail packaging:
- VDO A2C 595 109 73 Fuel siphon float level sensor
- VDO Sensors are supplied - unless otherwise stated - without connection material
A2C59510973
Data sheet
- Measuring range
- 240 - 33.5 Ohm
- Warning contact connector
- Flat plug 2.8 x 0.8 mm
- Warning contact
- Residual volume 15%
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- Yes
- Packaging
- VDO Sensor OEM bulk packaging
- Application
- VDO Level measurement
- Tank depth range
- 145 mm to 400 mm
- Signal analog
- Empty - Full : 240 - 33 Ohm
- Sensor type
- Fuel siphon sensors ALAS2
- Sensor signal
- Isolated from mass
- Installation size
- 63mm 6-Hole Flange
- Functionality
- Fuel level and pump
- Connector type
- Flat plug 6.3 x 0.8 mm
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Expired product
Specific References
- MPN
- A2C59510973
VDO A2C59510973
- ALAS2 Siphon Float + Warning Contact
- Tank depth: 140 - 400 mm (Adjustable)
- 6-Hole Flange 80 mm
- Resistance empty-full: 240.0 - 33.5 Ohm
- OEM bulk pack 10 Siphon float sensors
