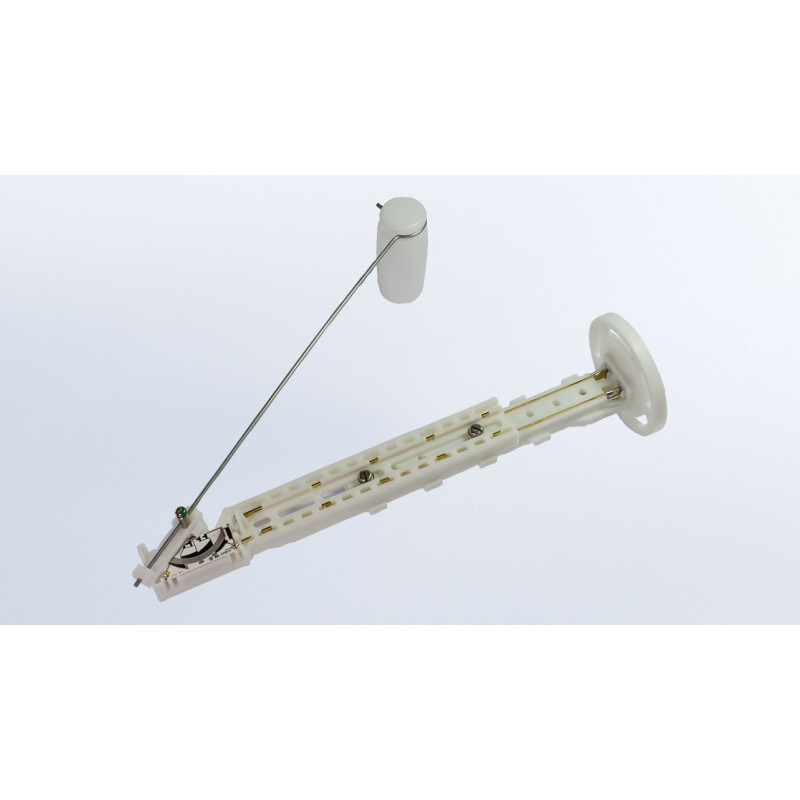

VDO Fuel Lever Float 1.5-90 Ohm - Dual
Part-number:
VDO N02-240-106
- For 2 fuel gauges
- Tank depth: 150 - 600 mm (Adjustable)
- 5-Hole SAE Flange 54 mm
- Empty-full resistance: 1.5 - 90.0 Ohm
- OEM bulk pack 10 Siphon float sensors
Logistical information:
- HS Code: 90269000
- Ean Code: 7640178725119
- Weight: 0.67kg
Technical description Fuel Lever float sensor:
VDO N02 240 106 Specifications:
Mechanical properties:
| Tank depth: | 150 mm - 600 mm |
| Mounting flange: | 5-Hole SAE 54 mm |
| Operating Temperature: | -25 °C to +65 °C |
| Fuel: | Oil - petroleum - diesel - petrol |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value empty: | 1.5 Ohms ± 1.0 Ohms |
| Resistance value full: | 90 Ohm |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
Datasheets and tables:
| VDO 2012 EN-DE Lever arm sender: | Page 4 |
Retail packaging:
- VDO N02 240 106 Fuel siphon float level sensor
- VDO Sensors are - unless otherwise stated - supplied without connection material
N02-240-106
Data sheet
- Measuring range
- 1.5 - 90 Ohms
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Adjustable sensor
- Yes
- Packaging
- VDO Sensor retail packaging
- Application
- VDO Level measurement
- Tank depth range
- Adjustable: 150mm - 600mm
- Signal analog
- Empty - Full : 1.5 - 90 Ohm
- Sensor type
- Fuel siphon sensors as standard
- Sensor signal
- Isolated from mass
- Installation size
- 54mm SAE 5-Hole Flange
- Functionality
- Fuel level and pump
- Connector type
- Flat plug 6.3 x 0.8 mm
- Communication
- Analogue
- Category
- Fuel level sensors
- Article status
- Expired product
Specific References
- EAN13
- 7640178725119
- MPN
- N02-240-106
VDO N02-240-106
- For 2 fuel gauges
- Tank depth: 150 - 600 mm (Adjustable)
- 5-Hole SAE Flange 54 mm
- Empty-full resistance: 1.5 - 90.0 Ohm
- OEM bulk pack 10 Siphon float sensors
