  • 221-824-054-049C 2 Pieces VDO Plastic Fuel Siphon Float 405mm

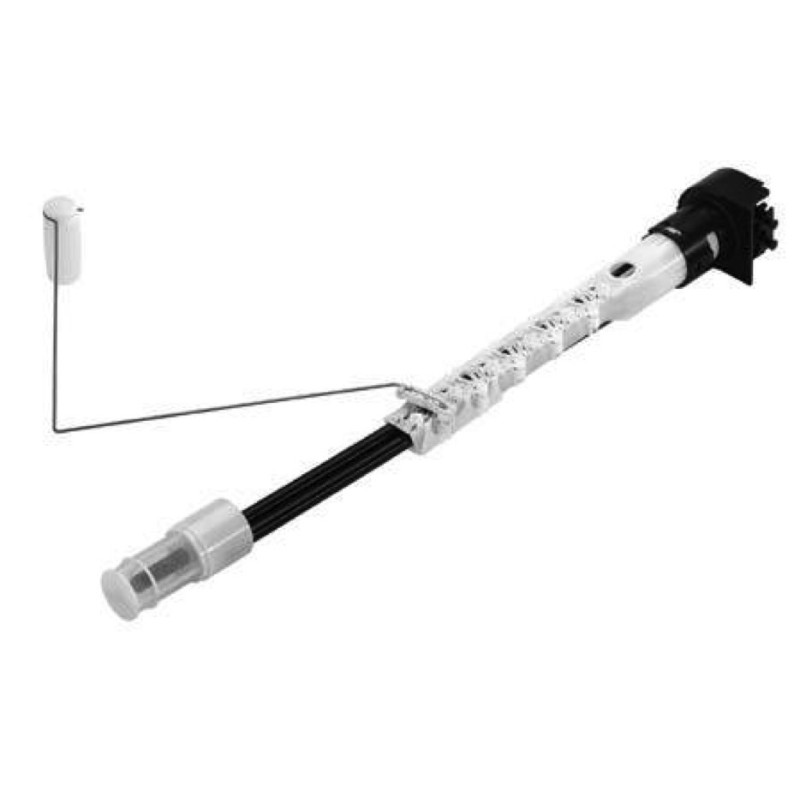

2 Pieces VDO Plastic Fuel Siphon Float 405mm

Part-number:

VDO 221-824-054-049C

  • Fuel siphon float sensor
  • Tank depth: 405 mm + 2 mm
  • Bayonet flange: 50.5 - 55.0 mm
  • Resistance empty-full: 3.0 - 180.0 Ohm
  • Retail Packaging Siphon Float Sensor 2 Pieces
Logistical information:
Expired productClick here for detailed information.
  • HS Code: 90269000
  • Ean Code: 4103590687753
  • Weight: 0.40kg
Discontinued article
Replacement article on request

Technical description Plastic Fuel Lever Float Sensor:

VDO 221 824 054 049C Specifications:

Mechanical properties:

Tank depth: 405 mm + 2 mm
Mounting flange: Bayonet 50.5 - 55.0 mm
Operating Temperature: -30 °C to +70 °C
Fuel: Oil - petroleum - diesel - petrol

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value empty: 3 Ohms
Resistance value full: 180 Ohms
Warning contact: None
Warning function: Optional VDO A2C59510886 Makepoint Switch

Datasheets and tables:

VDO 2012 EN-DE Lever arm sender: Page 3

Retail packaging:

  • VDO 221 824 054 049C Fuel siphon float level sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
VDO Continental I
221-824-054-049C

Data sheet

Measuring range
3 - 180 Ohm
Warning contact
None
Supply voltage
6 - 24 Volt DC
Adjustable sensor
No
Packaging
VDO Sensor retail packaging
Application
VDO Level measurement
Tank depth range
400 mm to 450 mm
Signal analog
Empty - Full : 3 - 180 Ohm
Sensor type
Fuel siphon sensors as standard
Sensor signal
Isolated from mass
Country of origin
Switzerland
Installation size
50.5 - 55.0 mm Bayonet
Functionality
Fuel level and pump
Connector type
DIN 72585 A1-2.1 SN/K1
Communication
Analogue
Category
Fuel level sensors
Article status
Expired product

Specific References

EAN13
4103590687753
MPN
221-824-054-049C
