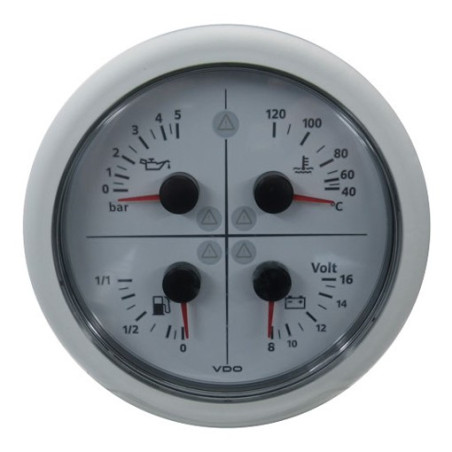

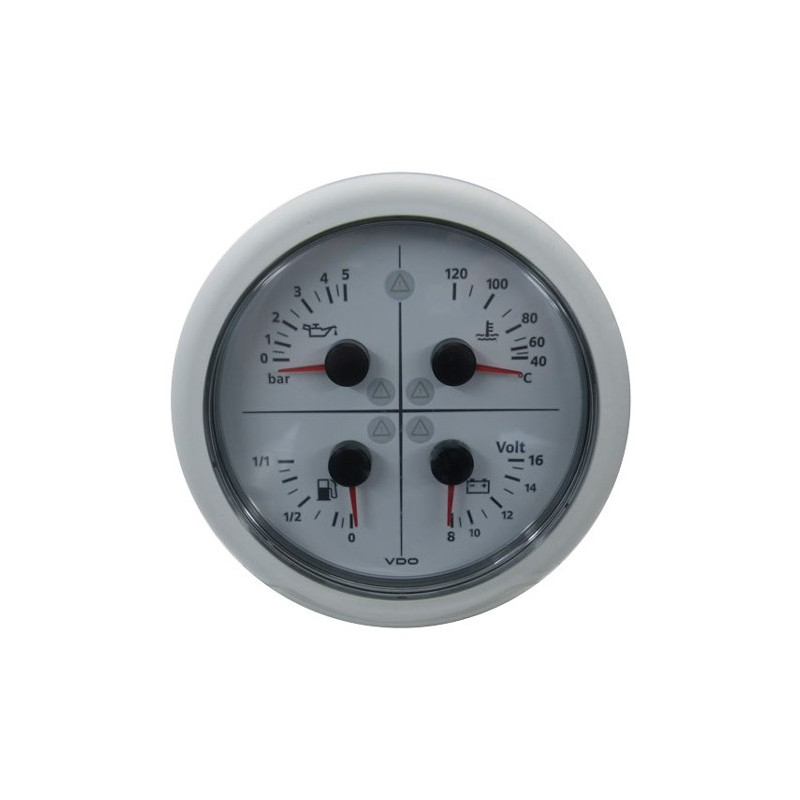

Veratron ViewLine Combi 4 in 1 White 110mm

Part-number:

Veratron A2C59514266

  • Color: White
  • Panel hole diameter: 110 mm - 4 3/8"
  • Measuring range: 1 & 2 Cooling water - Battery
  • Measuring range: 3 & 4 Fuel - Oil pressure
  • Retail packaging 1 Combi 4 in 1 instrument
Logistical information:
Discontinued productClick here for detailed information.
  • HS Code: 90148000
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Functional description ViewLine Combi 4 in 1 Cooling water - Battery - Fuel - Oil pressure:

Veratron ViewLine A2C59514266 Specifications:

Dimensions and assembly:

Built-in (Hole) diameter and Outside diameter: 110 mm - 4 3/8 Inch and 126 mm - 5 Inch
Installation depth: 50 mm
Panel thickness with spinlock nut: 0.5mm - 20mm
Panel thickness with bracket mounting: 2mm - 15mm (Optional)
Flushmount mounting: Optional kit A2C59510864

Functional:

Measuring range 1 Cooling water temperature gauge: +40°C to +120°C
Measuring range 2 Voltmeter: 8 to 16V DC
Measuring range 3 Fuel level gauge: E -1/2 - F
Measuring range 4 Engine Oil pressure gauge: 0 to 5 Bar
Input signal 1 Cooling water temperature meter: Veratron NTC Thermistor 287.4-22.7 Ohm
Input signal 2 Voltmeter: 8 to 16V DC
Input signal 3 Fuel level gauge: Veratron Siphon Float 3 - 180 Ohm EU
Input signal 4 Engine Oil pressure gauge: Veratron Pressure sensor 10 to 184 Ohm
Measurement accuracy: < 3.6° of the full scale
Connection: Hirschmann 8 & 14 pin MQS connector

Power supply:

Supply voltage: 10 to 16 Volt DC
Power consumption: < 175 mA including warning LEDs
Reverse polarity protection: Yes - 5 minutes
Short-circuit resistance: Yes - 1 minute

Scale & pointer:

Graduation: 4 x 90°
Scale color: White
Scale lighting: Amber LED backlight 605nm
Pointer: Red with LED lighting
Alarm LED: Red (632nm)
Programming: Veratron USB software kit

Version:

Model: Veratron ViewLine Marine
Front glass type: Double - Anti-fog - Anti-glare
Standard front ring: Round white (Interchangeable)

Degree of protection and certification:

Front protection class: IP67 (IEC 60529)
Back protection class IP52
Relative humidity: Maximum 95%
Operating Temperature: -30°C to +80°C (Plastic front ring)
CE Certification: Yes
DNV GL Certification: Yes
Vibration test 25G - 6ms - 1Hz
Shock test: 100G - 11ms
Drop test: 1 Meter - 3x
Fire safety: UL94-VD

Retail packaging:

  • Veratron ViewLine White A2C59514266 Combi 4 in 1 Cooling Water - Battery - Fuel - Oil Pressure
  • Cables with Hirschmann connector 8 & 14-pin
  • Front ring round white (interchangeable)
  • Spinlock nut
  • Rubber gasket
  • QR code
  • Safety and Installation Instructions
  • Delivery excluding Veratron sensors
A2C59514266

Data sheet

Measuring range
4 Functions
Warning indication
Red LED 6X
Supply voltage
8 - 16 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine control
Signal analog
Analog sensors
Series
Veratron ViewLine Retail
Lens
Plastic double anti-fog
Color
White
IP Class front
IP67 (IEC 60529)
Input
Analogue
Installation size
110 mm - 4 3/8 Inch
Functionality
Combi 4 in 1 Motor multifunction
Front ring interchangeable
Yes - Clip-on
Front ring model
White round
Communication
Analogue
Category
Combi 4 in 1 Instruments
Article status
Discontinued product

Specific References

MPN
A2C59514266
