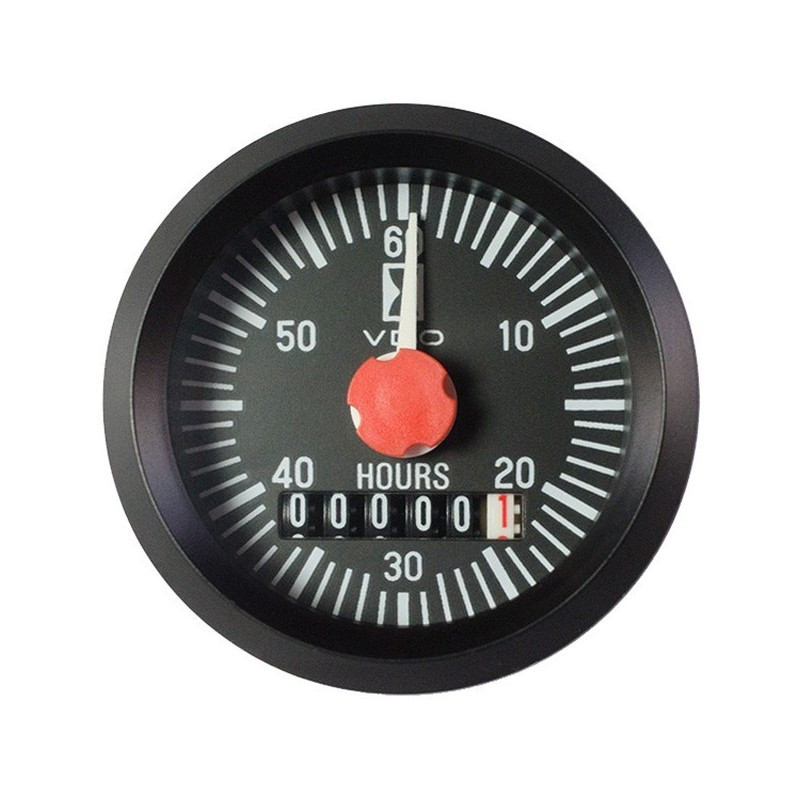

10 Pieces VDO Cockpit International Hour Meter 52 mm 8 - 32V - Illuminated
€840.59
(tax incl.)
€694.70 (VAT Excl.)
Part-number:
VDO A2C1936250010
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 99999.9 hour (nonresettable)
- Operating voltage: 8 - 32 Volt DC
- OEM package 1 Engine hours counter
- 10 Pieces
Logistical information:
- HS Code: 90291000
- Ean Code: 4103590686947
- Weight: 1.65kg
Description Cockpit International Engine hours counter:
VDO Cockpit International A2C1936250010 specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch |
| Installation depth: | 53 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | Not available |
| Flushmount: | None |
Functionality:
| EHC Measurement range: | 0 - 99999.9 Hours |
| Signal input engine hours counter (EHC): | Alternator (terminal D+) |
| Accuracy: | ± 5s per day at room temperature |
| Connection: | AMP Male blade connector 6.3 x 0.8mm (2x) |
| Illumination connection: | LED (White) |
Power supply:
| Operating voltage: | 8 - 32 Volt DC |
| Current consumption: | at 13.5 V: < 10 mA at room temperature |
| Reverse polarity protection: | Yes |
| Short circuit protection: | Not specified by VDO |
Dial & Pointer:
| Dial: | 6 Digits |
| Dial colour: | Black |
| Dial Illumination: | LED White |
| Digits: | White |
| Warning indication: | None |
| Programming: | None |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Bezel: | Metal Triangular black |
Protection and standards:
| Front protection class: | IP65 - Ozone proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | –40 °C to +90 °C |
| Standard compliance: | ECE R10 rev.5 EMC (2014/30/EU) ROHS (2015/863/EU) ELV (2000/53/EC) |
| DNV GL Certification: | Not specified by VDO |
| Vibration resistance: | acc. IEC 60068 Part 2 - 6.2 g 25 Hz to 500 Hz, 24 h x, y, z |
| Physical shock: | acc. IEC 60068 Part 2 - 27, 100 g, 6 ms, two times x, y, z |
| Nominal position: | any orientation NL 0° to 180° - DIN 16257 |
| Housing: | Plastic flame retardant |
OEM package:
- 10 Pieces VDO Cockpit International A2C1936250000 Operating hours counter
- Spinlock nut
- Connecting material order separately
A2C1936250010
Data sheet
- Measuring range
- 0 - 99999.9 H
- Warning indication
- None
- Supply voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instruments OEM bulk
- Application
- VDO Engine control
- Signal analog
- Plus ignition switch Ignition
- Series
- VDO Cockpit International
- Meter scale
- Single
- Lens
- Plastic single anti-reflective
- Country of origin
- Malaysia
- Color
- Black
- IP Class front
- IP64 (DIN 40050)
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- Service intervals
- Front ring interchangeable
- Yes - Special tools required
- Front ring model
- Black triangle
- Communication
- Analogue
- Category
- Engine Hours counters
- Article status
- Available to order
Specific References
- EAN13
- 4103590686947
- MPN
- A2C1936250010
