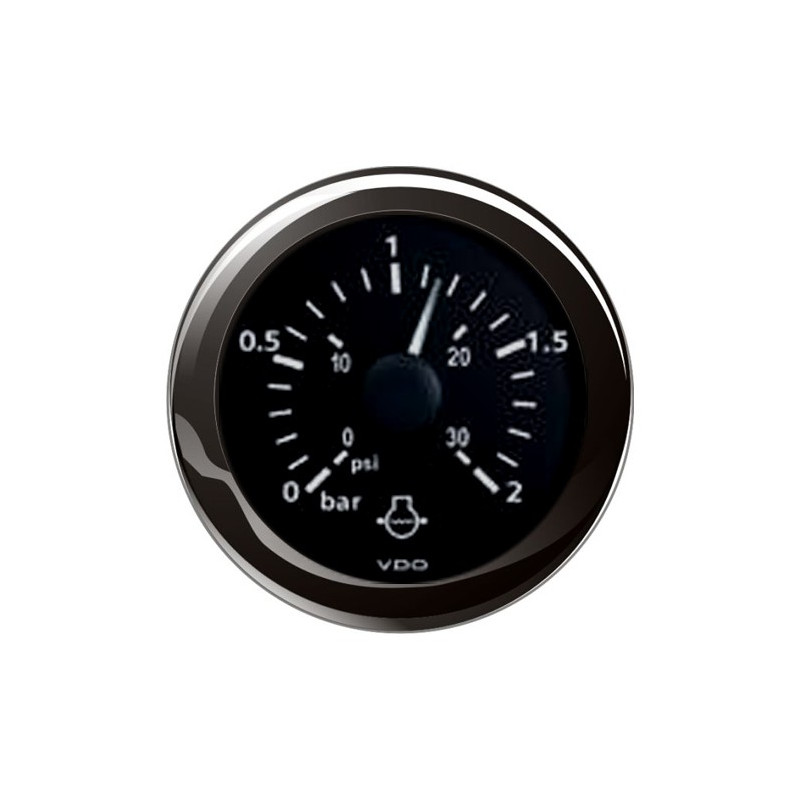

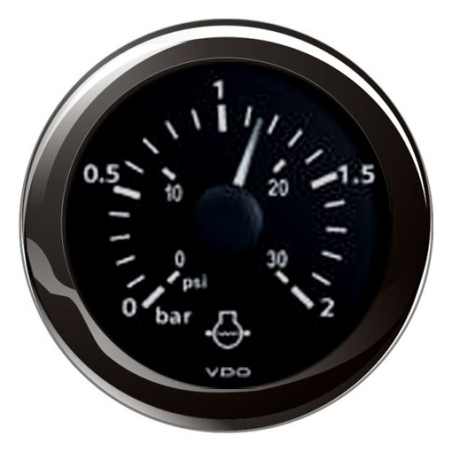

Veratron ViewLine Cooling Water Pressure 2Bar Black 52mm
Part-number:
Veratron A2C59513849
- Color: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: 0 to 2 Bar
- Front: Double glazing - Anti-fog
- Retail Packaging 1 Pressure Gauge
Logistical information:
- HS Code: 90269000
- Weight: 0.50kg
Functional description ViewLine Water pressure gauge:
Veratron ViewLine A2C59513849 specifications:
Dimensions and assembly:
| Built-in (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch |
| Installation depth: | 60 mm |
| Panel thickness with spinlock nut: | 0.5mm - 20mm |
| Panel thickness with bracket mounting: | 2mm - 15mm (Optional) |
| Flushmount mounting: | Optional kit A2C59510864 |
Functional:
| Water pressure scale above: | 0 to 2 Bar |
| Water pressure scale below: | 0 to 30 PSI |
| Water pressure input signal: | Hose Cooling System |
| Measurement accuracy: | < ± 0.15 Bar |
| Connection: | Hirschmann 8 pin MQS connector |
Power supply:
| Supply voltage: | 10 to 16 V DC |
| Power consumption: | < 35 mA |
| Reverse polarity protection: | Yes - 5 minutes |
| Short-circuit resistance: | Yes - 1 minute |
Scale & pointer:
| Graduation: | 270° |
| Scale color: | Black |
| Scale lighting: | Amber LED backlight 605nm |
| Pointer: | White with LED lighting |
Version:
| Model: | Veratron ViewLine Marine |
| Front glass type: | Double - Anti-fog - Anti-glare |
| Standard front ring: | Round Black (Interchangeable) |
Degree of protection and certification:
| Front protection class: | IP67 (IEC 60529) |
| Back protection class | IP52 |
| Relative humidity: | Maximum 95% |
| Operating Temperature: | -30°C to +80°C (Plastic front ring) |
| CE Certification: | Yes |
| DNV GL Certification: | Yes |
| Vibration test | 25G - 6ms - 1Hz |
| Shock test: | 100G - 11ms |
| Drop test: | 1 Meter - 3x |
| Fire safety: | UL94-VD |
Retail packaging:
- Veratron ViewLine Black A2C59513849 Water Pressure Gauge
- Cable with Hirschmann connector 8-pin
- Front ring round black (replaceable)
- Spinlock nut
- Rubber gasket
- QR code
- Safety and Installation Instructions
- Delivery excluding Veratron Cooling water pressure sensor
A2C59513849
Data sheet
- Pressure Measurement Range
- 0 - 2 Bar
- Warning indication
- Red LED Via plus and minus
- Supply voltage
- 8 - 32 Volt DC
- Packaging
- VDO Instrument retail
- Application
- VDO Engine control
- Signal analog
- Mechanical
- Series
- Veratron ViewLine Retail
- Meter scale
- Double
- Lens
- Plastic double anti-fog
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- Analogue
- Installation size
- 52 mm - 2 1/16 Inch
- Functionality
- Cooling water pressure
- Front ring interchangeable
- Yes - Clip-on
- Front ring model
- Black round
- Communication
- Analogue
- Category
- Pressure gauges
- Article status
- Discontinued product
Specific References
- MPN
- A2C59513849
Veratron A2C59513849
- Color: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Measuring range: 0 to 2 Bar
- Front: Double glazing - Anti-fog
- Retail Packaging 1 Pressure Gauge
