VDO Pressure Sensor 0-5 Bar - M18
Part-number:
VDO 360-081-030-085C
- Pressure measuring range: 0 - 5 Bar
- Thread: M18 x 1.5
- Resistance value: 10 - 184 Ohm
- Output: Min to mass
- Warning contact: 0.40 Bar ± 0.2 Bar
Logistical information:
- HS Code: 90269000
- Weight: 0.50kg
Technical description engine oil pressure sensor:
VDO 360 081 030 085C Specifications:
Mechanical properties:
| Pressure measurement range: | 0 - 5 Bar 0 - 72.5 PSI 0 - 500 KPa |
| Maximum pressure: | 30 Bar for 2 seconds |
| Thread: | M18 x 1.5 |

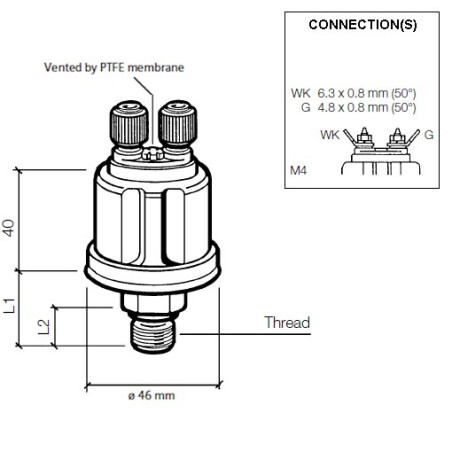

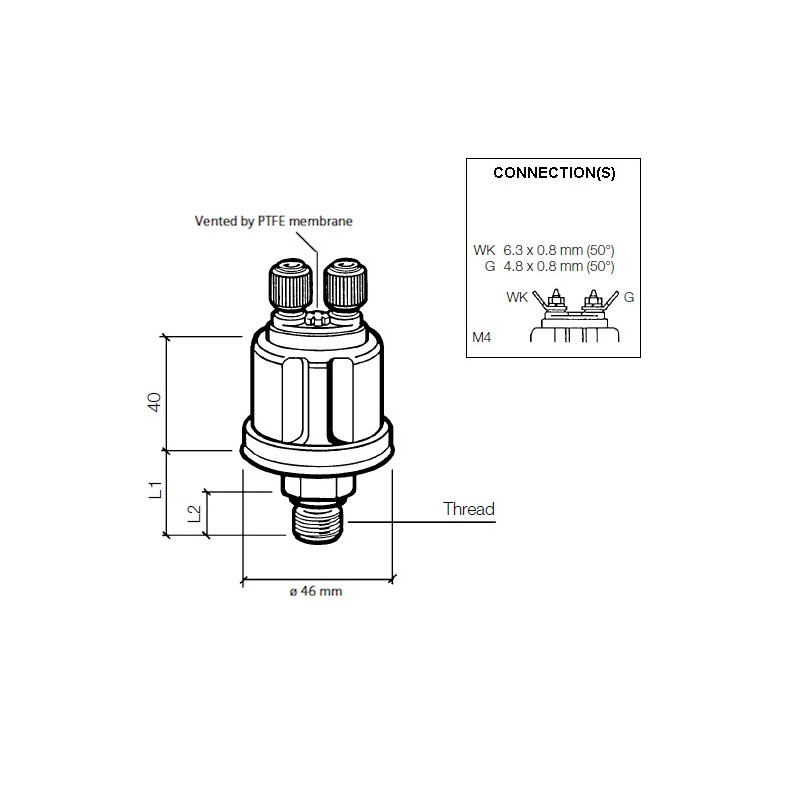

| Thread + nut length (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 100 Nm |
| Operating Temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - petroleum - diesel - gasoline - air |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value: | 10 - 184 Ohms |
| Pressure sensor output signal: | 1-pole min to ground |
| Warning contact: | 0.40 Bar ± 0.2 Bar |
| Load warning contact | Maximum 5 Watt induction-free |
| Warning contact properties | Contact closes when pressure drops |
| Pressure sensor connection: | M4 Flat plug 4.8 x 0.8 mm 50° |
| Warning contact connection: | Flat plug 6.3 x 0.8 mm 50° |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 123 - 125 |
| Type of connection: | Model: C |
| VDO En Du Pressure Sensors Tables: | VDO Datasheet Table 3 |
| VDO Pressure sensors are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Retail packaging:
- VDO 360 081 030 085C Pressure Sensor
- VDO Sensors are - unless otherwise stated - delivered without connection material
360-081-030-085C
Data sheet
- Pressure Measurement Range
- 0 - 5 Bar
- Warning contact connector
- Flat plug 6.3 x 0.8 mm
- Warning contact
- 0.40 Bar ± 0.2 Bar
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 10 - 184 Ohms
- Application
- VDO Engine control
- Signal analog
- 10 - 184 Ohms
- Sensor signal
- Minus in mass
- Sensor connector
- M4 Flat plug 4.8 x 0.8 mm
- Thread
- M18 x 1.5 Male
- Functionality
- Engine oil pressure
- Connector type
- M4 Flat plug 4.8 x 0.8 mm
- Communication
- Analogue
- Category
- Pressure sensors
- Article status
- Expired product
- Alternate format
- 360 081 030 085C
360/81/30/85C
Specific References
- MPN
- 360-081-030-085C
VDO 360-081-030-085C
- Pressure measuring range: 0 - 5 Bar
- Thread: M18 x 1.5
- Resistance value: 10 - 184 Ohm
- Output: Min to mass
- Warning contact: 0.40 Bar ± 0.2 Bar
