VDO 2801126186351 pressure transmitter 0-16 bar - M14
Part-number:
VDO 2801126186351
- Pressure measuring range: 0 - 16 Bar
- Thread: M14 x 1.5
- Resistance value: 10 - 184 Ohm
- Output: Isolated from ground
- No warning contact
- Successor of: 360-081-038-014C
Logistical information:
- Weight: 0.12kg
Technical description engine oil pressure sensor:
VDO 2801126186351 Specifications:
Mechanical properties:
| Pressure measurement range: | 0 - 16 Bar 0 - 232 PSI 0 - 1600 KPa |
| Maximum pressure: | 40 Bar for 2 seconds |
| Thread: | M14 x 1.5 |

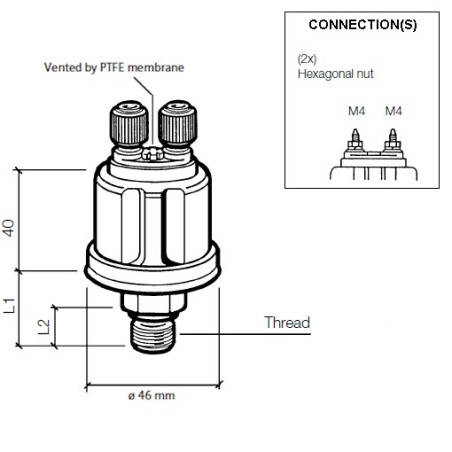

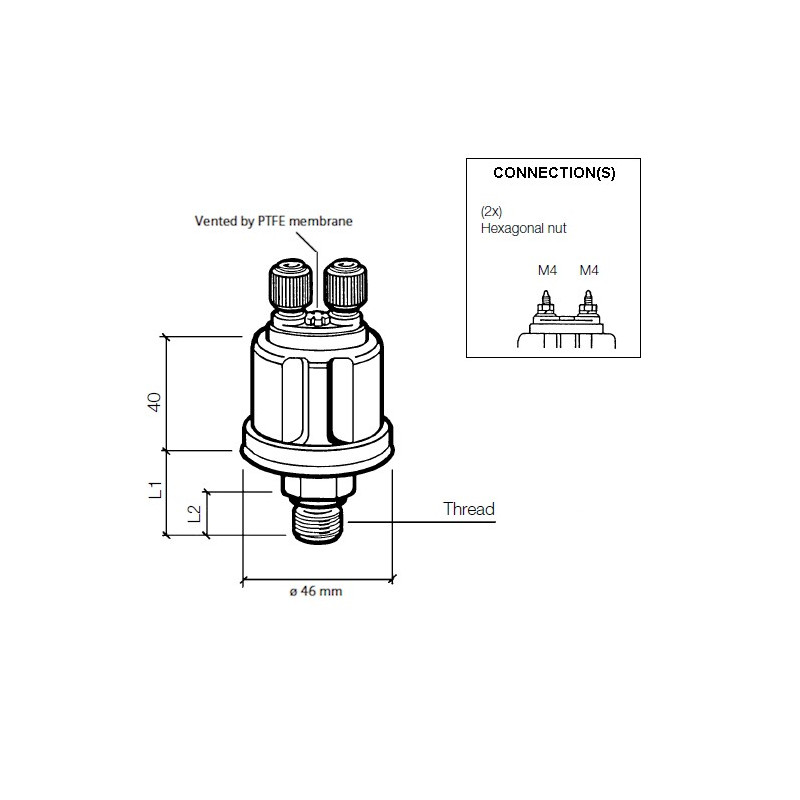

| Thread + nut length (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 60 Nm |
| Operating Temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - petroleum - diesel - gasoline - air |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value: | 10 - 184 Ohms |
| Pressure sensor output signal: | 2-pole insulated from ground |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
| Pressure sensor connection: | M4 Hex Nut |
Retail packaging:
- VDO 2801126186351 Pressure Sensor
- VDO Sensors are - unless otherwise stated - supplied without connection material
2801126186351
Data sheet
- Pressure Measurement Range
- 0 - 16 Bar
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 10 - 184 Ohms
- Application
- VDO Engine control
- Signal analog
- 10 - 184 Ohms
- Sensor signal
- Isolated from mass
- Sensor connector
- M4 Hex Nut
- Thread
- M14 x 1.5 Male
- Country of origin
- Germany
- Functionality
- Engine oil pressure
- Connector type
- M4 Hex Nut
- Communication
- Analogue
- Category
- Pressure sensors
- Article status
- Discontinued product
- Alternate format
- 360 081 038 014C
360/81/38/14C
Specific References
- MPN
- 2801126186351
VDO 2801126186351
- Pressure measuring range: 0 - 16 Bar
- Thread: M14 x 1.5
- Resistance value: 10 - 184 Ohm
- Output: Isolated from ground
- No warning contact
- Successor of: 360-081-038-014C
