VDO Pressure Sensor 0-5 Bar - M18
Part-number:
VDO 360-081-029-025K
- Pressure measuring range: 0 - 5 Bar
- Thread: M18 x 1.5
- Resistance value: 10 - 184 Ohm
- Output: Min to mass
- Replacement product on request
Logistical information:
- Weight: 0.50kg
Technical description engine oil pressure sensor:
VDO 360 081 029 025K Specifications:
Mechanical properties:
| Pressure measurement range: | 0 - 5 Bar 0 - 72.5 PSI 0 - 500 KPa |
| Maximum pressure: | 30 Bar for 2 seconds |
| Thread: | M18 x 1.5 |

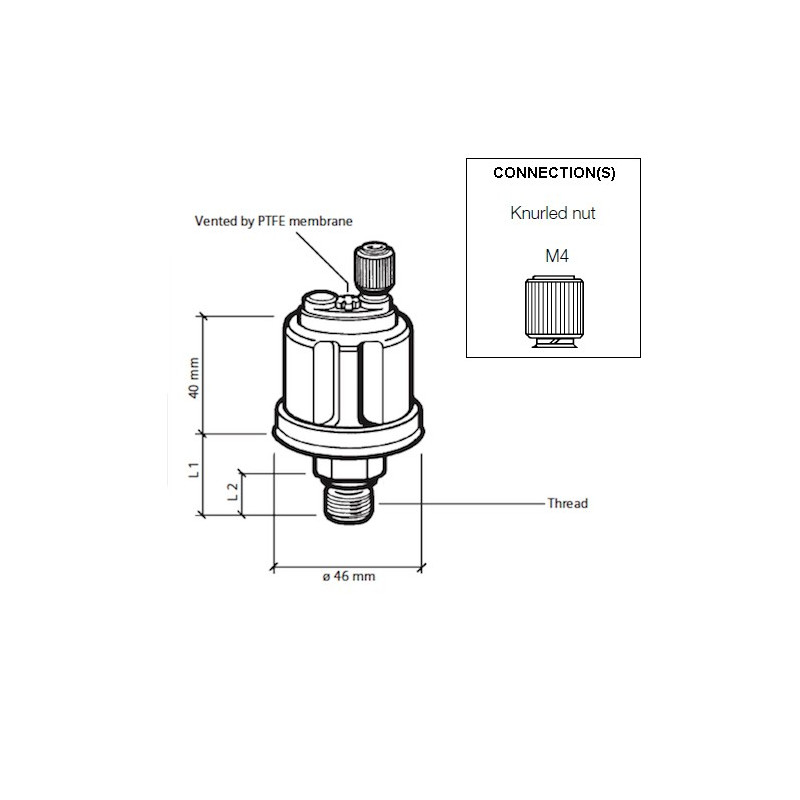

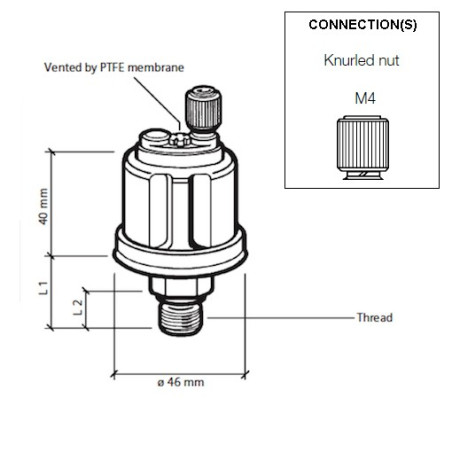

| Thread + nut length (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 100 Nm |
| Operating Temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - petroleum - diesel - gasoline - air |
Electrical properties:
| Supply voltage: | 6 - 24 V DC |
| Resistance value: | 10 - 184 Ohms |
| Pressure sensor output signal: | 1-pole min to ground |
| Warning contact: | None |
| Warning function: | Optional VDO A2C59510886 Makepoint Switch |
| Pressure sensor connection: | M4 Plastic knurled nut |
Datasheets and tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 121 - 122 |
| Type of connection: | Model: A |
| VDO En Du Pressure Sensors Tables: | VDO Datasheet Table 3 |
| VDO Pressure sensors are used in, among other things: | Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles |
Replacement product for:
- VDO 360 081 029 025K Pressure Sensor
- On request
360-081-029-025K
Data sheet
- Pressure Measurement Range
- 0 - 5 Bar
- Warning contact
- None
- Supply voltage
- 6 - 24 Volt DC
- Packaging
- VDO Sensor retail packaging
- Output signal
- 10 - 184 Ohms
- Application
- VDO Engine control
- Signal analog
- 10 - 184 Ohms
- Sensor signal
- Minus in mass
- Sensor connector
- M4 Plastic knurled nut
- Thread
- M18 x 1.5 Male
- Functionality
- Engine oil pressure
- Connector type
- M4 Plastic knurled nut
- Communication
- Analogue
- Category
- Pressure sensors
- Article status
- Expired product
- Alternate format
- 360 081 029 025K
360/81/29/25K
Specific References
- MPN
- 360-081-029-025K
VDO 360-081-029-025K
- Pressure measuring range: 0 - 5 Bar
- Thread: M18 x 1.5
- Resistance value: 10 - 184 Ohm
- Output: Min to mass
- Replacement product on request
