VDO Pressure Sensor 0-10 Bar - M10

Part-number:

VDO 360-081-030-106C

  • Pressure measurement range: 0 - 10 Bar
  • Thread: M10 x 1
  • Resistance value: 10 - 184 Ohm
  • Output: Min to mass
  • Replacement product on request
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description engine oil pressure sensor:

VDO 360 081 030 106C specifications:

Mechanical properties:

Pressure measurement range: 0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa
Maximum pressure: 30 Bar for 2 seconds
Thread: M10 x 1

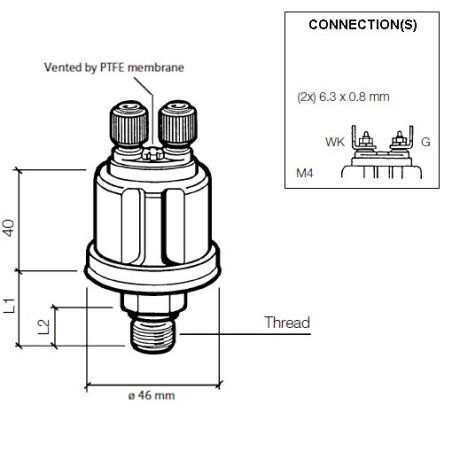

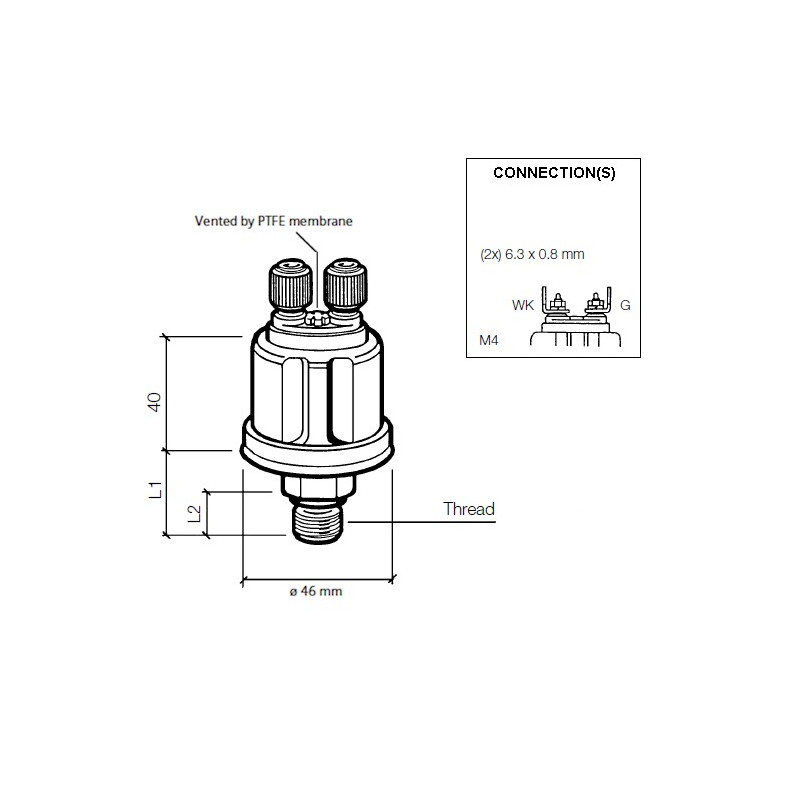

Thread + nut length (L1): 18.5 mm
Thread length (L2): 10 mm
Torque: 30 Nm
Operating Temperature: -25 °C to +100 °C
Pressure medium: Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage: 6 - 24 V DC
Resistance value: 10 - 184 Ohms
Pressure sensor output signal: 1-pole min to ground
Warning contact: 0.50 Bar ± 0.20 Bar
Load warning contact Maximum 5 Watt induction-free
Warning contact properties Contact closes when pressure drops
Pressure sensor connection: M4 Flat plug 6.3 x 0.8 mm 90°
Warning contact connection: M4 Flat plug 6.3 x 0.8 mm 90°

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog: Page 123 - 125
Type of connection: Model: H
VDO En Du Pressure Sensors Tables: VDO Datasheet Table 4
VDO Pressure sensors are used in, among other things: Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 360 081 030 106C Pressure Sensor
  • On request
360-081-030-106C

Data sheet

Pressure Measurement Range
0 - 10 Bar
Warning contact connector
M4 Flat plug 6.3 x 0.8 mm
Warning contact
0.50 Bar ± 0.20 Bar
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Minus in mass
Sensor connector
M4 Flat plug 6.3 x 0.8 mm
Thread
M10 x 1 Male
Functionality
Engine oil pressure
Connector type
M4 Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Pressure sensors
Article status
Expired product
Alternate format
360 081 030 106C
360/81/30/106C

Specific References

MPN
360-081-030-106C
