VDO Pressure Sensor 0-5 Bar - M18

€72.81 (tax incl.)

€60.17 (VAT Excl.)

Part-number:
VDO 360-081-032-059C
  • Pressure measuring range: 0 - 5 Bar
  • Thread: M18 x 1.5
  • Resistance value: 10 - 184 Ohm
  • Output: Isolated from ground
  • No warning contact
Logistical information:
Available to orderClick here for detailed information.
  • Weight: 0.50kg
Quantity

Technical description engine oil pressure sensor:

VDO 360 081 032 059C Specifications:

Mechanical properties:

Pressure measurement range:0 - 5 Bar
0 - 72.5 PSI
0 - 500 KPa
Maximum pressure:30 Bar for 2 seconds

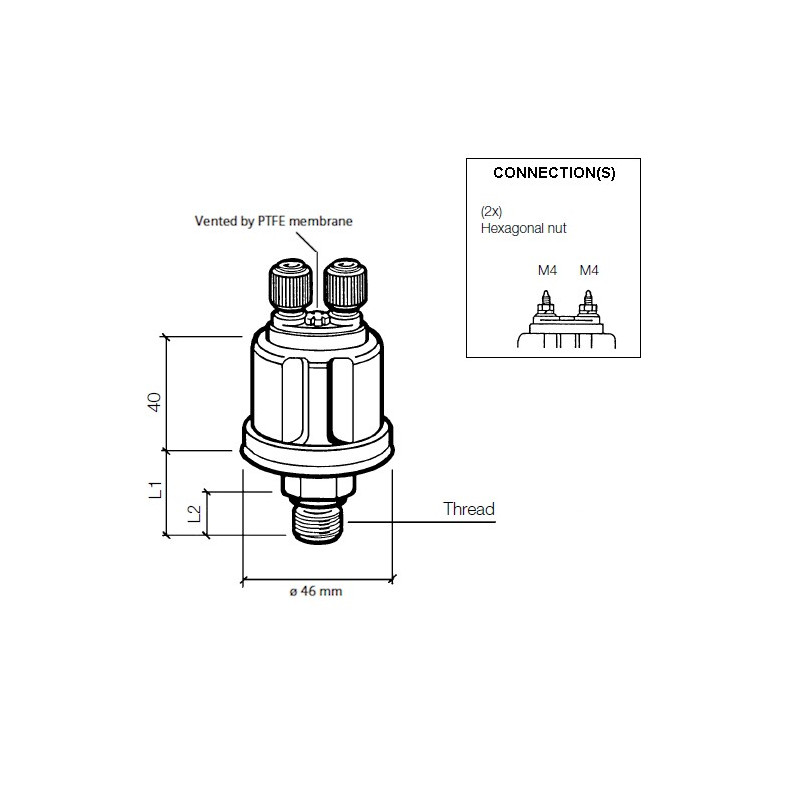

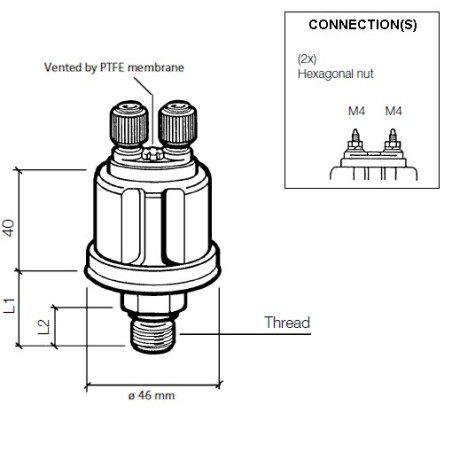

Thread:M18 x 1.5
Thread + nut length (L1):20.8 mm
Thread length (L2):12 mm
Torque:100 Nm
Operating Temperature:-25 °C to +100 °C
Pressure medium:Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:10 - 184 Ohms
Pressure sensor output signal:2-pole insulated from ground
Warning contact:None
Warning function:Optional VDO A2C59510886 Makepoint Switch
Pressure sensor connection:M4 Hex Nut

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 126 - 127
Type of connection:Model: D
VDO En Du Pressure Sensors Tables:VDO Datasheet Table 3
VDO Pressure sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Retail packaging:

  • VDO 360 081 032 059C Pressure Sensor
  • VDO Sensors are - unless otherwise stated - supplied without connection material
360-081-032-059C

Data sheet

Pressure Measurement Range
0 - 5 Bar
Warning contact
None
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Isolated from mass
Sensor connector
M4 Hex Nut
Thread
M18 x 1.5 Male
Functionality
Engine oil pressure
Connector type
M4 Hex Nut
Communication
Analogue
Category
Pressure sensors
Article status
Available to order
Alternate format
360 081 032 059C
360/81/32/59C

Specific References

MPN
360-081-032-059C
