VDO Pressure Sensor 0-10 Bar - M14

Part-number:
VDO 360-081-039-008C
  • Pressure measurement range: 0 - 10 Bar
  • Thread: M14 x 1.5
  • Resistance value: 10 - 184 Ohm
  • Output: Isolated from ground
  • Replacement product on request
Logistical information:
Expired productClick here for detailed information.
  • Weight: 0.50kg
Discontinued article
Replacement article on request

Technical description engine oil pressure sensor:

VDO 360 081 039 008C specifications:

Mechanical properties:

Pressure measurement range:0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa
Maximum pressure:30 Bar for 2 seconds

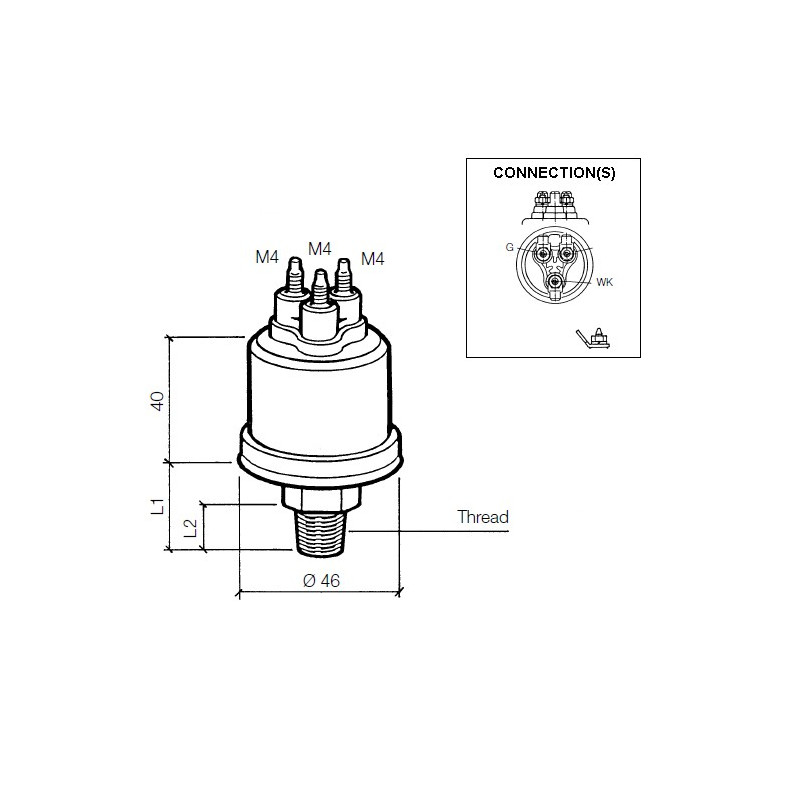

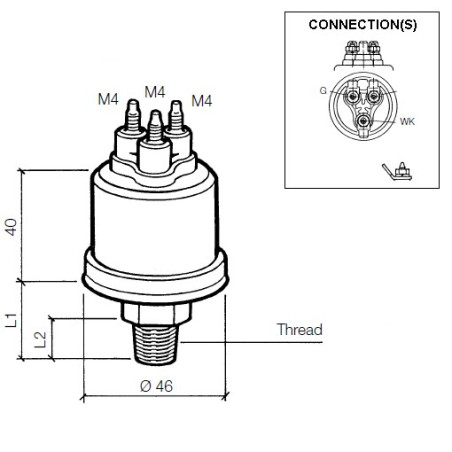

Thread:M14 x 1.5
Thread + nut length (L1):20.5 mm
Thread length (L2):12 mm
Torque:60 Nm
Operating Temperature:-25 °C to +100 °C
Pressure medium:Oil - petroleum - diesel - gasoline - air

Electrical properties:

Supply voltage:6 - 24 V DC
Resistance value:10 - 184 Ohms
Pressure sensor output signal:2-pole insulated from ground
Warning contact:5.00 Bar ± 0.30 Bar
Load warning contactMaximum 5 Watt induction-free
Warning contact propertiesContact closes when pressure drops
Pressure sensor connection:M4 Flat plug 6.3 x 0.8 mm 50°
Warning contact connection:M4 Flat plug 6.3 x 0.8 mm 50°

Datasheets and tables:

VDO 2014 Vehicle Electronics Catalog:Page 128 - 129
Type of connection:Model: B
VDO En Du Pressure Sensors Tables:VDO Datasheet Table 4
VDO Pressure sensors are used in, among other things:Automotive industry - Shipbuilding - Mechanical engineering - Agriculture and road construction Vehicles

Replacement product for:

  • VDO 360 081 039 008C Pressure Sensor
  • On request
360-081-039-008C

Data sheet

Pressure Measurement Range
0 - 10 Bar
Warning contact connector
M4 Flat plug 6.3 x 0.8 mm
Warning contact
5.00 Bar ± 0.30 Bar
Supply voltage
6 - 24 Volt DC
Packaging
VDO Sensor retail packaging
Output signal
10 - 184 Ohms
Application
VDO Engine control
Signal analog
10 - 184 Ohms
Sensor signal
Isolated from mass
Sensor connector
M4 Flat plug 6.3 x 0.8 mm
Thread
M14 x 1.5 Male
Functionality
Engine oil pressure
Connector type
M4 Flat plug 6.3 x 0.8 mm
Communication
Analogue
Category
Pressure sensors
Article status
Expired product
Alternate format
360 081 039 008C
360/81/39/8C

Specific References

MPN
360-081-039-008C
